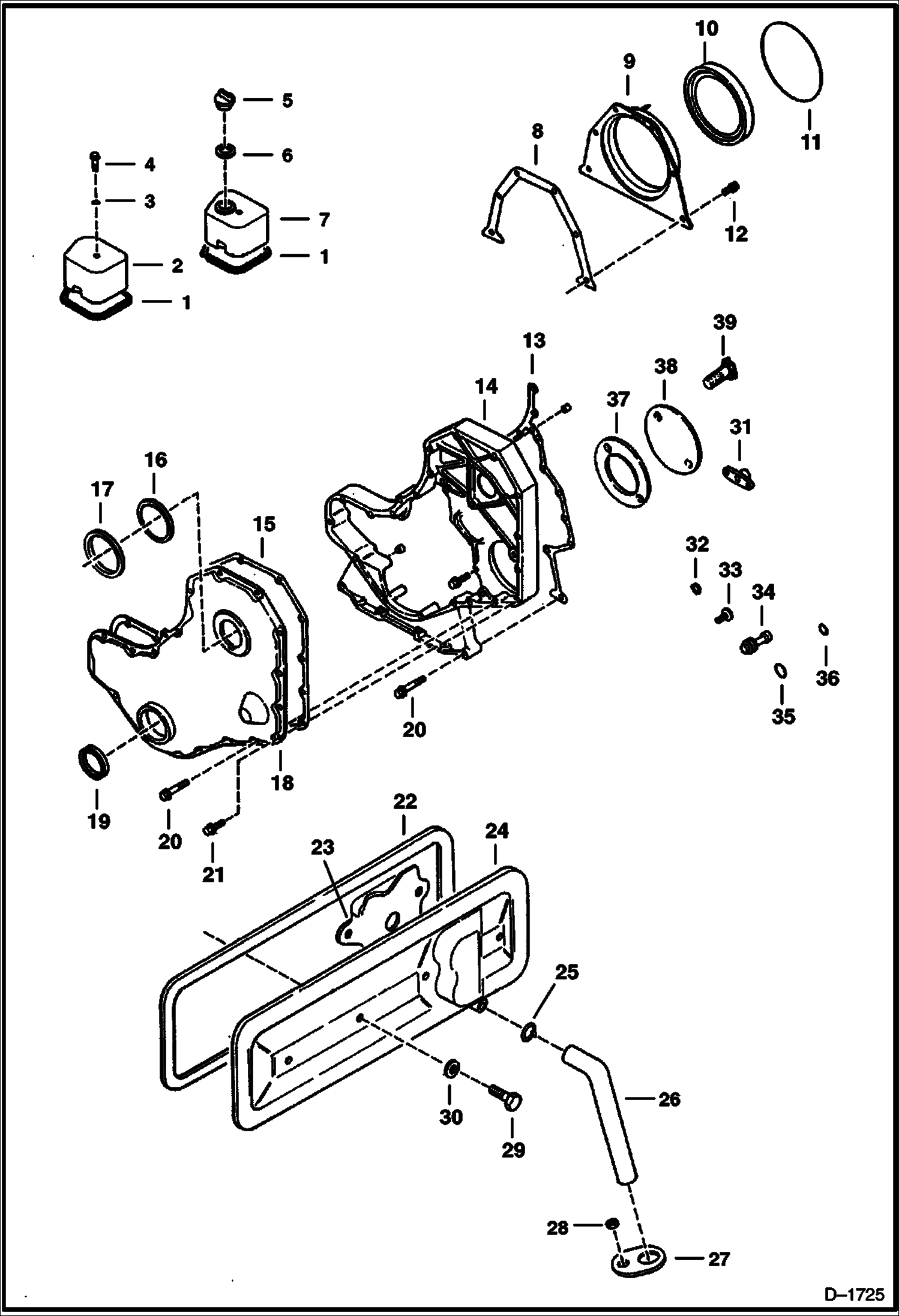

Запчасти Bobcat 900s COVERS POWER UNIT

1

6631194

GASKET

2

6631191

COVER

3

6631166

O-RING

4

6631181

BOLT 25.5 mm

4

BOLT NLA - 33.25mm - Was 6641339 - A

5

6631167

CAP

6

6631179

SEAL

7

6631192

COVER

8

6631123

GASKET

9

COVER NLA - rear - Order 1 of 6661241 & 1 of 6631152 - Was 6631195 - A

9

6661241

COVER Was 6658500 - A

10

6631278

SEAL

11

6631152

O-RING

12

BOLT NLA - Was 29CM00614B - A

13

6631180

GASKET

14

6631209

HOUSING

15

6631338

GASKET

16

6631223

SEAL

17

6631222

CAP

18

6631255

COVER

19

6631283

SEAL crankshaft

20

29CM850

SCREW

21

6631114

BOLT

22

6631259

GASKET

23

6631182

BAFFLE

24

6631333

COVER

25

6631273

CLAMP

26

6631272

HOSE

27

6631274

CLIP

28

6631275

NUT

29

6631114

BOLT Was 1CM00820B - B

30

6631105

SEAL

31

6631331

HOUSING timing pin

32

6631330

SNAP RING

33

6631193

SCREW round head

34

6631266

PIN timing

35

6631268

O-RING

36

6631267

GASKET timing housing

37

6652499

GASKET

38

6652500

COVER PLATE

39

BOLT NLA - Was 29CM01275B - A
