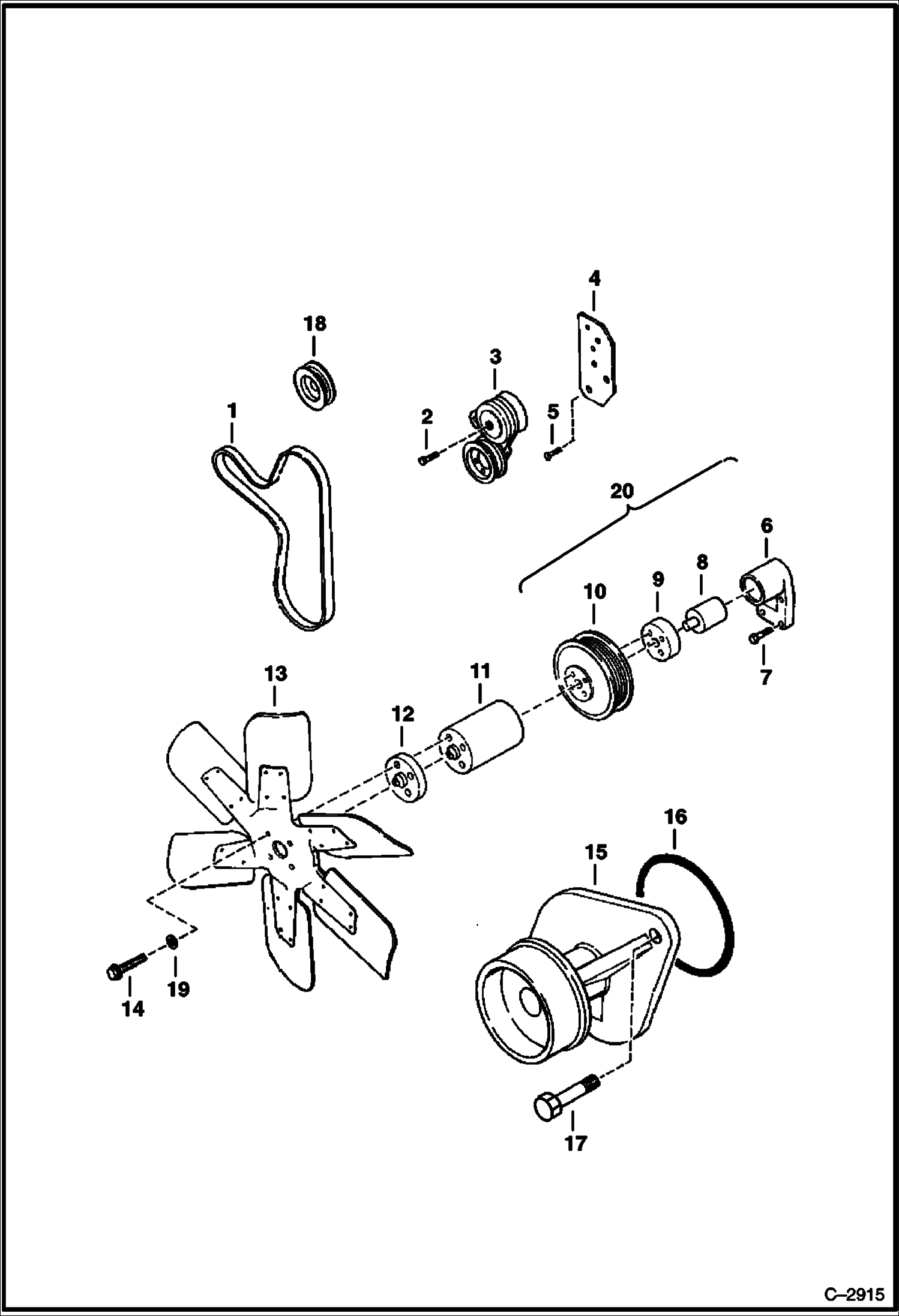

Запчасти Bobcat 900s WATER PUMP & FAN POWER UNIT

1

6640804

BELT

2

6631384

BOLT M10-1.50 x 61 mm

2

6658417

BOLT

3

6631284

TENSIONER

4

6631292

BRACKET

5

6631204

SCREW

6

6631177

BRACKET

7

1CM840

BOLT

8

SHAFT NSS - Also Order Ref. 20

9

HUB NSS - Also Order Ref. 20

10

6631197

PULLEY

11

6631256

SPACER 2.00''(51mm)

12

6631595

SPACER 0.25''(6,4mm)

13

6593579

FAN

14

1CM880

BOLT Was 17CM-880 - D

15

6631079

WATER PUMP W/Ref. 16

16

6631213

O-RING

17

1CM822

SCREW

18

PULLEY alternator

19

7EM80

WASHER

20

6631178

BRACKET ASSY. W/Ref. 6-10
