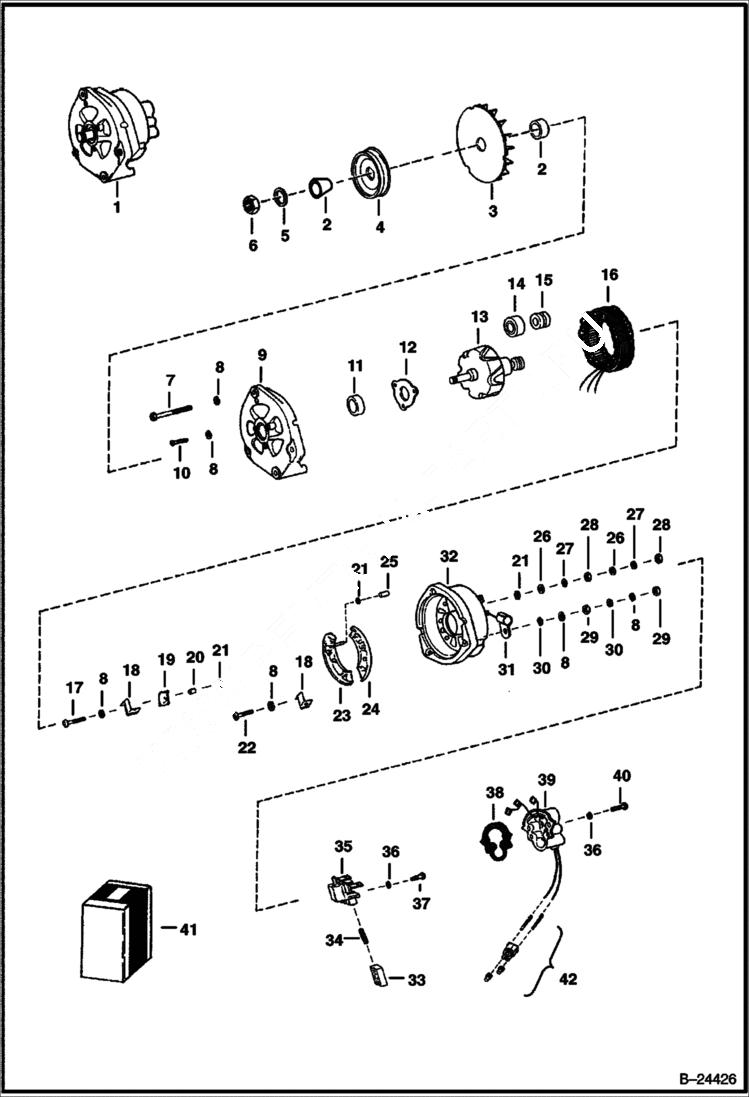

Запчасти Bobcat 900s ALTERNATOR ELECTRICAL SYSTEM

1

ALTERNATOR See Illustration ALTERNATOR/ C3312 See BTI277 NLA - LESS FAN & PULLEY - ORDER 6661611 ALTERNATOR AND 6659375 FAN - WAS 6632211 - A

2

6641341

RETAINER Was 6632323 - A

3

FAN NLA - Order 6661611 Alt. & 6659375 FAN - Was 6632209 - A

4

6648634

PULLEY Was 6631238 - A

5

NLA - Was 794584B - A

6

NUT NLA - Was 6632207 - A

7

6632222

BOLT thru

8

WASHER NSS

9

BRACKET NLA - W/Ref. 8 & 10-12 - Was 6632224 - A

10

SCREW NSS

11

BEARING NSS

12

RETAINER NSS

13

ROTOR NSS - W/Ref. 14 & 15 - Was 6632229 - A

14

BEARING NSS

15

SLIP RING NSS

16

6632230

STATOR

17

BOLT NSS

18

CLAMP NSS

19

MOLD-U NSS

20

BUSHING NSS - insulation

21

WASHER NSS - insulation

22

SCREW NSS

23

HEATSINK NSS

24

HEATSINK NSS

25

BUSHING NSS - insulation

26

WASHER NSS

27

WASHER NSS

28

NUT NSS

29

NUT NSS

30

WASHER NSS

31

6632242

CONDENSER

32

BRACKET NSS - W/Ref. 8, 17-31-Was 6632231 - A

33

BRUSH NSS

34

SPRING NSS

35

6632248

BRUSH HOLDER W/Ref. 33 & 34

36

WASHER NSS

37

SCREW NSS

38

6632253

GASKET

39

KIT NSS - regulator - W/Ref. 36 & 38-40 - Was 6632384 - A

40

SCREW NSS

41

KIT NLA - bearing - W/Ref. 11, 14 & 15 - Was 6632381 - A

41

6632382

KIT external hardware - W/Ref. 8, 21, 26-30, 36, 37 & 40

41

6632383

KIT internal hardware - W/Ref. 8, 17-22 & 25

41

6632385

KIT brush holder - W/Ref. 33-37

42

6577456

KIT weather-pak connector-Includes both male and female parts
