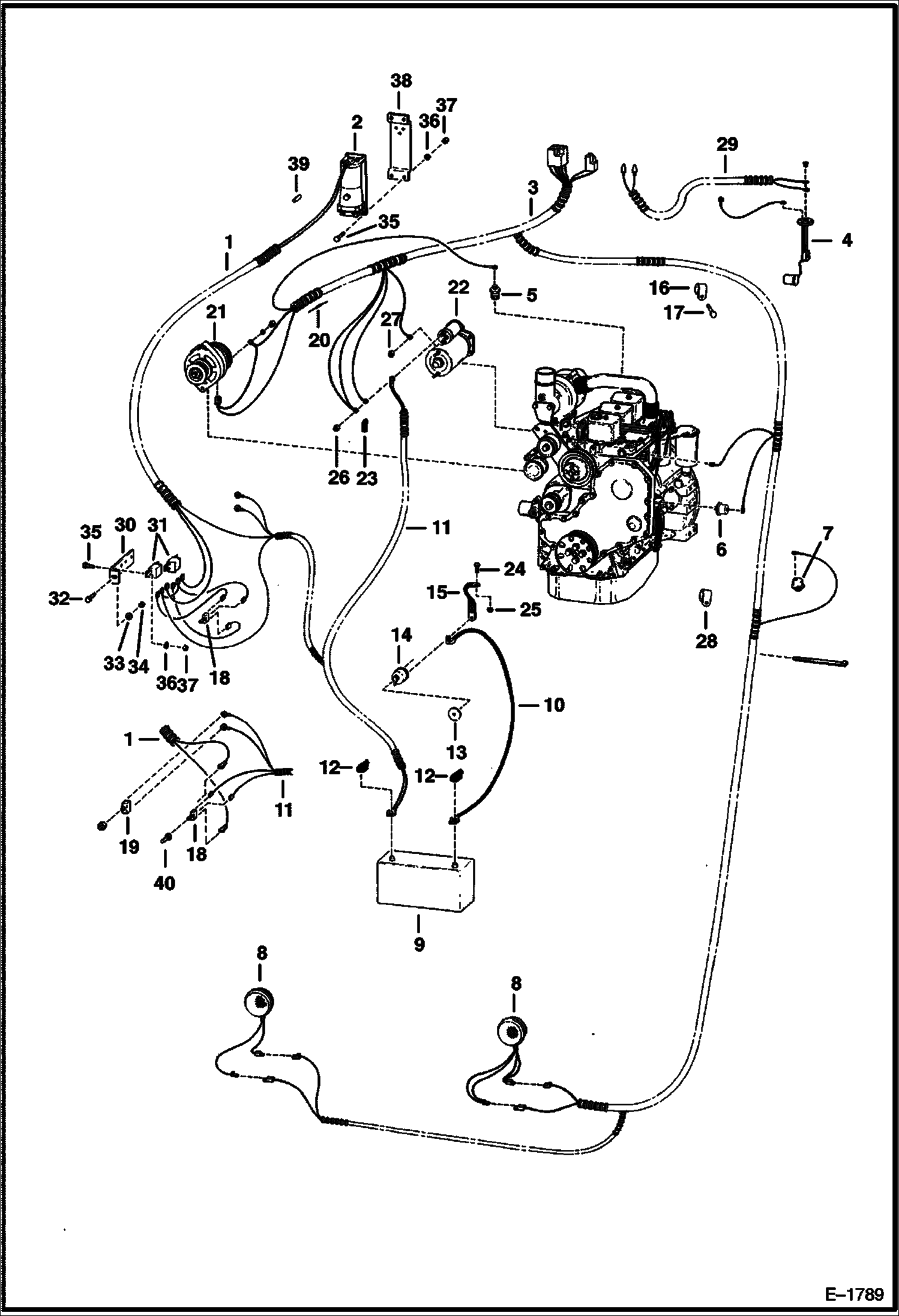

Запчасти Bobcat 900s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6529728

HARNESS Use with Prestolite pump

1

6589395

HARNESS Use with Holloway pump

2

PUMP See Illustration CAB TILT MOTOR & PUMP/ B18214 See Illustration CAB TILT MOTOR & PUMP/ C3060 CAB TILT

3

6529461

HARNESS engine

4

6598921

SENDER See Illustration FUEL SYSTEM/ E1673 FUEL

5

6005262

SENDER eng. temp.

6

6005263

SENDER eng. oil. pres.

7

6632633

SWITCH hyd temp

8

6519340

LIGHT

8

LENS NLA - Was 6515219 - A

8

6511994

NUT flanged

8

877752

4411 BULB

8

6655055

BULB Was 506475B - A

9

6665427

BATTERY, DRY 950 AMP Was 6641343 - A

10

6529654

CABLE battery - Neg.

11

6529653

CABLE battery - Pos.

12

2356058

BOOT

13

6590789

PLATE on/off switch

14

754019

SWITCH on/off

15

6514523

CABLE ground

16

31H44

CLIP

17

29CM1220

BOLT

18

6599331

SWITCH toggle

19

6683378

BREAKER circuit - Used with Prestolite cab lift pump - Was 6599612 - A

20

3675725

DIODE

21

ALTERNATOR See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B24426

22

STARTER See Illustration STARTER/ D2119 See Illustration STARTER/ B20341

23

6560172

COVER terminal

24

7C612

BOLT

25

85D6

NUT, 5

26

4DM10

NUT

27

4DM5

NUT

28

30H34

CLAMP

29

6594344

HARNESS

30

6589396

BRACKET Use with Holloway pump

31

6632179

RELAY Use with Holloway pump

32

17C812

BOLT Use with Holloway pump

33

6E8

WASHER Use with Holloway pump - Was 9E000008B - B

34

7D8

NUT 5 Use with Holloway pump

35

17C410

BOLT 10 Use with Holloway pump

36

6E4

WASHER 10 Use with Holloway pump

37

61D4

NUT 5 Use with Holloway pump

38

6589154

BRACKET Use with Holloway pump

39

6640604

CONNECTOR

40

6515510

COVER
