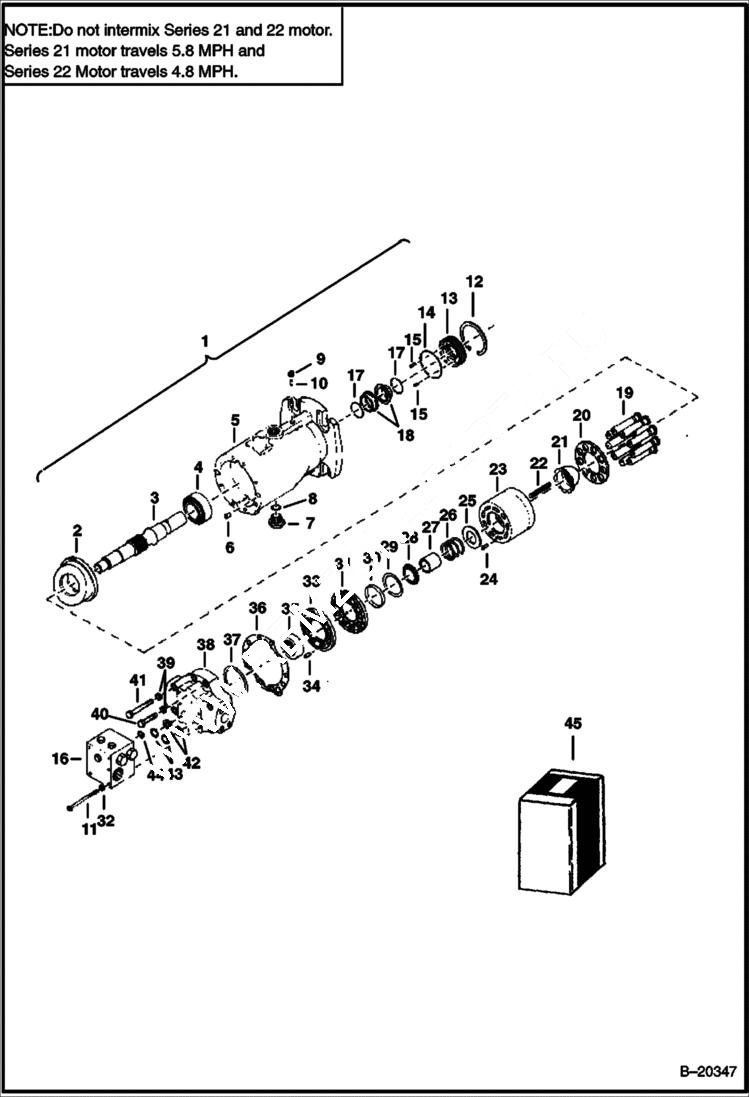

Запчасти Bobcat 900s HYDROSTATIC MOTOR (21-3501AN-JSBJ - S/N 11036 & Above) HYDROSTATIC SYSTEM

1

MOTOR NLA - See Note - Order 6655829 - Was 6649553 - A

1

6655829

MOTOR 21-3801AN-JSBJ

1

6669084REM

MOTOR, HYD, W/O GEAR PUMP reman - 21R-3801AN-JSBJ - Was 6669084 - A

2

6649924

SWASH PLATE

3

6649925

SHAFT

4

6649926

BEARING

5

HOUSING NSS

6

6518460

PIN

7

24K7

PLUG

8

79K10

O RING 10

9

6518510

PLUG

10

6649927

PIN

11

17C560

BOLT

12

RING RETAINER NSS

13

SEAL RETAINER NSS

14

O-RING NSS

15

SPRING NSS

16

VALVE See Illustration MOTOR MANIFOLD VALVE/ B1096 See Illustration MOTOR MANIFOLD VALVE/ B11976

17

O-RING NSS

18

SEAL NSS

19

PISTONS NSS

20

RETAINER NSS

21

GUIDE NSS - retainer

22

SPRING NSS - retainer

23

BLOCK NSS - cylinder

24

PIN NSS

25

SEAT NSS - spring

26

SPRING NSS

27

GUIDE NSS - spring

28

RETAINING NSS

29

RING NSS - retaining

30

PILOT NSS

31

6649928

BEARING PLATE

32

WASHER NSS - Was 6518414 - A

33

6649929

VALVE PLATE

34

6518423

PIN

35

6649930

BEARING

36

6649931

GASKET

37

6649932

SHIM KIT

38

END CAP NSS

39

6518483

WASHER

40

17C632

BOLT 5

41

17C648

BOLT 5

42

O-RING NSS

43

O-RING NSS

44

6649933

ORIFICE

45

6518534

SEAL KIT ref. 12-15, 17 & 18

45

6518663

SEAL KIT ref. 14, 15, 17 & 18

45

6655964

KIT cylinder block - Ref. 19-31 - Was 6649934 - A

45

6649935

SEAL KIT ref. 8, 14, 17 & 36

45

6518500

SEAL KIT ref. 42 & 43
