Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

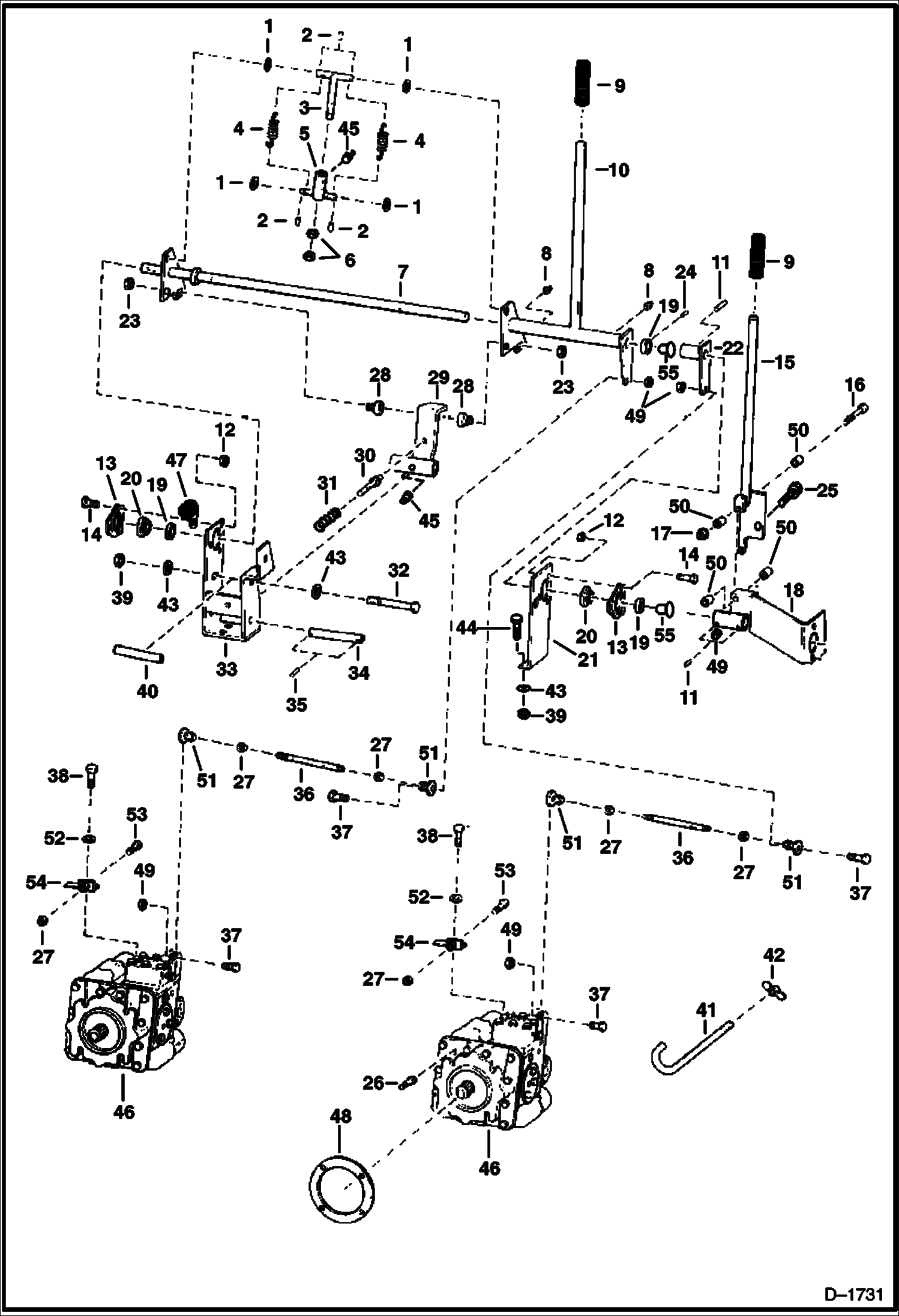

Схема запчастей Bobcat 900s - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

25E18

WASHER

2

1F316

PIN

3

6501755

ROD adjusting

4

6505076

SPRING

5

6501756

SLIDE differential limiter

6

7D8

NUT 5

7

6501696

SHAFT control

8

10H35

FITTING, GREASE 10

9

6513963

GRIP

10

6590005

LEVER L.H.

11

668312

PIN ROLL

12

85D5

NUT 5

13

6515096

FLANGE bearing mounting

14

17C512

BOLT 5

15

6593655

LEVER R.H.

16

730170

BOLT shoulder

17

55D6

NUT Was 6599334

18

6593656

MOUNT

19

6515095

COLLAR W/Set Screw

20

6515103

BALL BEARING

21

6503779

BRACKET R.H.

22

6548098

ARM

23

6599337

NUT

24

15G404

SCREW SET

25

17C632

BOLT 5

26

35C824

BOLT

27

61D6

NUT 5

28

6515595

FOLLOWER cam follower

29

6501753

ARM centering

30

6501779

GUIDE spring

31

6505082

SPRING

32

17C888

BOLT

33

6501700

BRACKET L.H.

34

6503744

PIN

35

1F524

PIN

36

6593658

ROD

37

17C620

BOLT

38

17C440

BOLT

39

85D8

NUT, 5

40

6504007

SPACER

41

6591073

ROD control lever lock

42

16D6

NUT

43

25E22

WASHER

44

17C820

BOLT Was 17C000824B - B

45

11H25

FITTING10

46

PUMP See Illustration HYDROSTATIC PUMP/ B18329 See Illustration HYDROSTATIC PUMP/ D1355

47

30H42

CLAMP

48

6591453

GASKET

49

85D6

NUT, 5

50

1310346

BUSHING

51

6512954

ROD END R.H. threads

52

25E13

WASHER 5

53

97G640

SET SCREW

54

6502023

STOP

55

6512027

BUSHING

Выбрано товаров: 55
