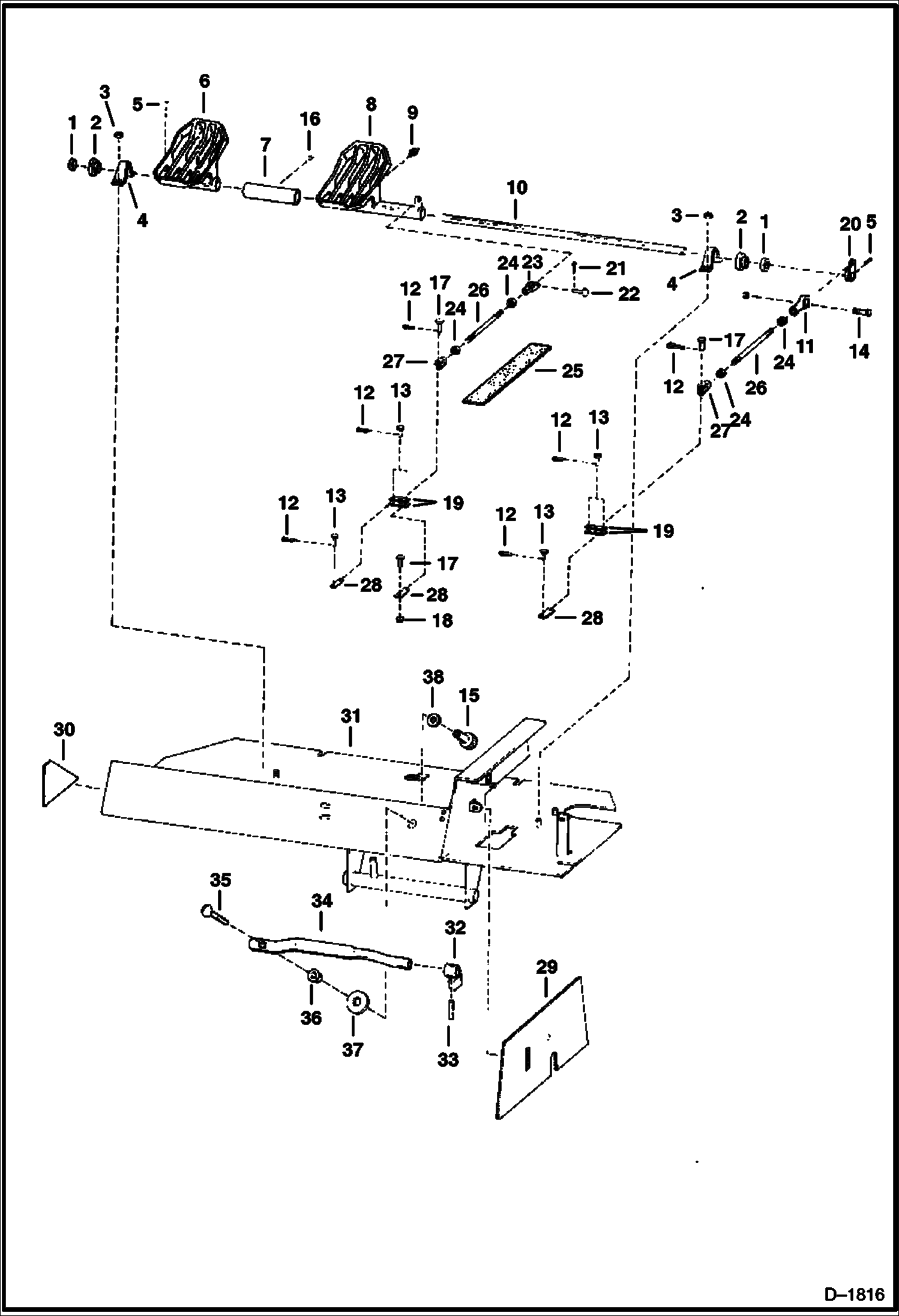

Запчасти Bobcat 900s FOOT CONTROLS HYDRAULIC SYSTEM

1

6515095

COLLAR locking

2

6515103

BALL BEARING

3

85D6

NUT, 5

4

BEARING ASSY. NLA - W/Ref. 1 & 2 - Was 6515548 - A

4

6631670

HOUSING

5

668312

PIN ROLL

6

6503996

PEDAL lift

7

6529630

TUBE spacer

8

6503998

PEDAL tilt

9

38H25

FITTING

10

6503995

SHAFT

11

6512954

ROD END R.H. threads

12

1F312

PIN

13

1304227

PIN

14

17C624

BOLT 5

15

6649015

KNOB

16

15G404

SCREW SET

17

6505103

PIN

18

PUSH NUT NLA - Was 6519255 - A

19

6503750

LINK

20

6503999

ARM

21

1F416

PIN Was 1F-412 - D

22

663350

PIN

23

6508041

YOKE

24

8D6

NUT 5

25

INSULATION NLA - Was 6593598 - A

26

6503749

ROD

27

6505064

CLEVIS

28

6503751

LINK

29

6593609

PANEL insulation

30

PANEL NLA - insulation - Was 6593613 - A

31

6531447

FLOORBOARD Was 6593635 - A

32

6591077

BLOCK

33

1304227

PIN

34

6531343

ROD

35

6529377

BOLT

36

57D8

NUT 10

37

6562127

WASHER

38

25E21

WASHER 5
