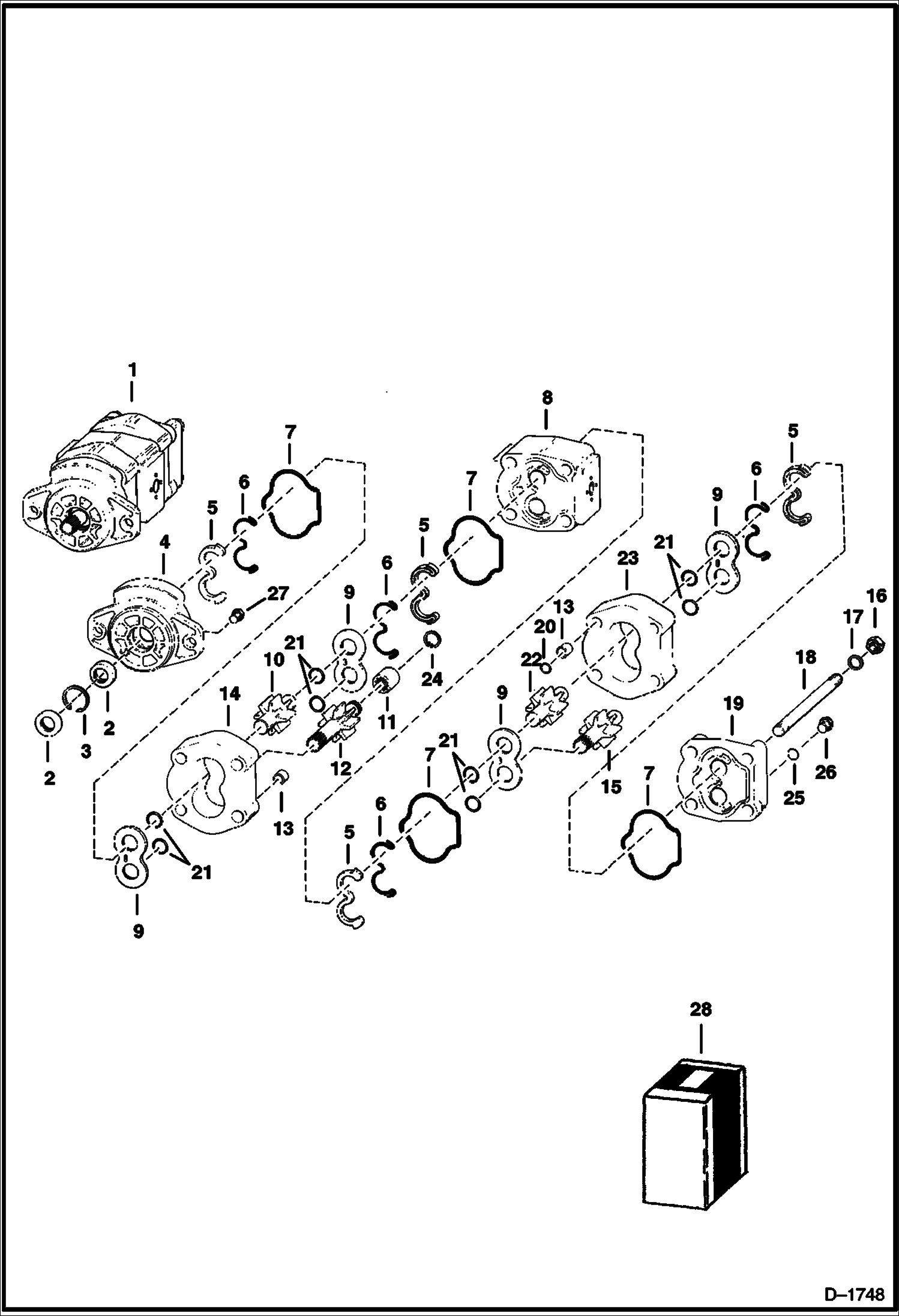

Запчасти Bobcat 900s HYDRAULIC PUMP HYDRAULIC SYSTEM

1

6631584

PUMP, GEAR DOUBLE ref. 2-27

2

666542

SNAP RING

3

SEAL NSS

4

6630076

FLANGE With non-replacable bushings

5

BACK-UP RING NSS

6

O-RING NSS

7

O-RING NSS

8

6630077

PLATE connector -With non-replacable bushings

9

6641082

PLATE pressure

10

6631636

IDLER GEAR

11

6630070

COUPLER

12

DRIVE GEAR NLA - Was 6631635 - A

13

6630069

DOWEL

14

6631634

GEAR PLATE

15

6630992

GEAR rear drive

16

964540

NUT Was 946540 - D

17

WASHER NLA - Was 946271 - A

18

6631637

STUD

19

6631059

COVER plate - With non-replacable bushings

20

O-RING NSS

21

O-RING NSS

22

6630991

IDLER GEAR

23

6630990

GEAR PLATE

24

659041

RING

25

79K20

O RING 10

26

PLUG NLA - W/Ref. 26 - Was 24K000011B - A

27

PLUG NLA - Was 965808B - A

28

6631060

SEAL KIT ref. 2, 3, 5-7, 20 & 21
