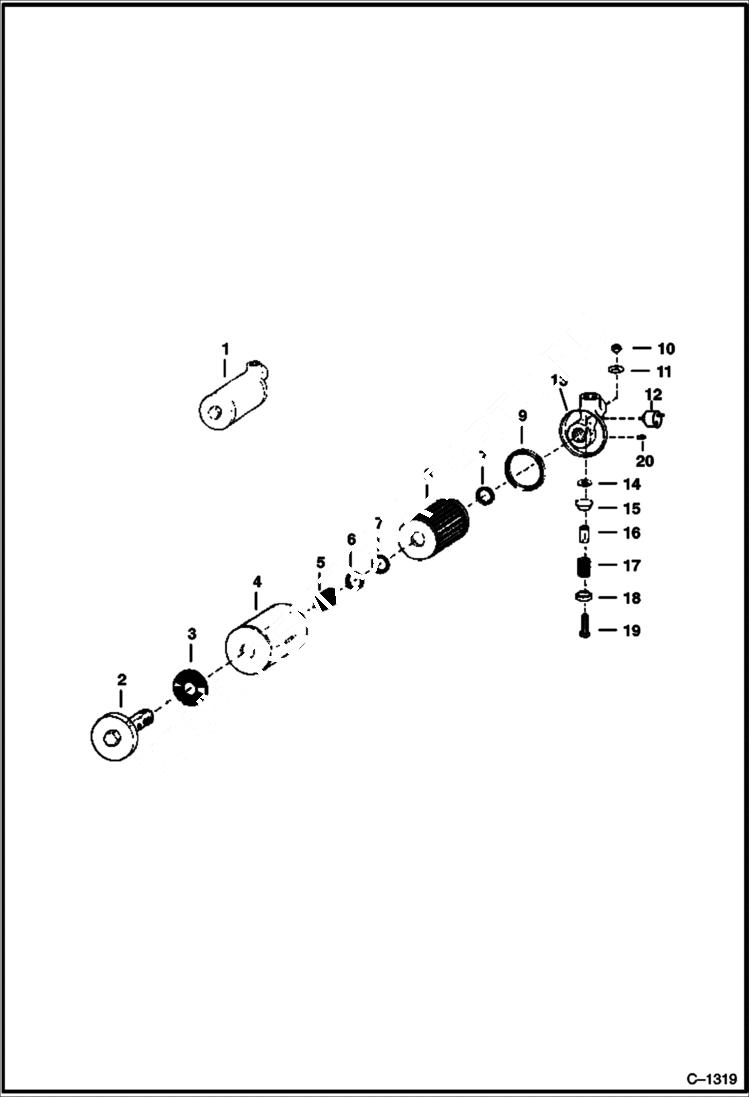

Запчасти Bobcat 900s HYDRAULIC OIL FILTER HYDRAULIC SYSTEM

1

FILTER NLA - Ref. 2-18 - Was 6590685 - A

2

896153

POST

3

1567066

SEAL

4

1567065

CAN

5

896152

SPRING

6

1566619

WASHER back-up

7

1566620

GASKET rubber - Was NLA - D

8

6511197

ELEMENT W/Ref. 7

9

6512532

SEAL rubber

10

896149

NUT

11

6503797

PLATE

12

6631695

SWITCH oil pressure - Was 6519715 - A

13

HEAD NSS - REF. 10-19 - WAS 6590684 - A

14

CHECK PLATE NLA - Was 6503798 - A

15

896147

GUIDE by-pass valve

16

6510320

SPACER by-pass valve

17

6510010

SPRING by-pass valve

18

896144

CAP by-pass valve

19

41G828

SCREW by-pass valve

20

40K2

PLUG
