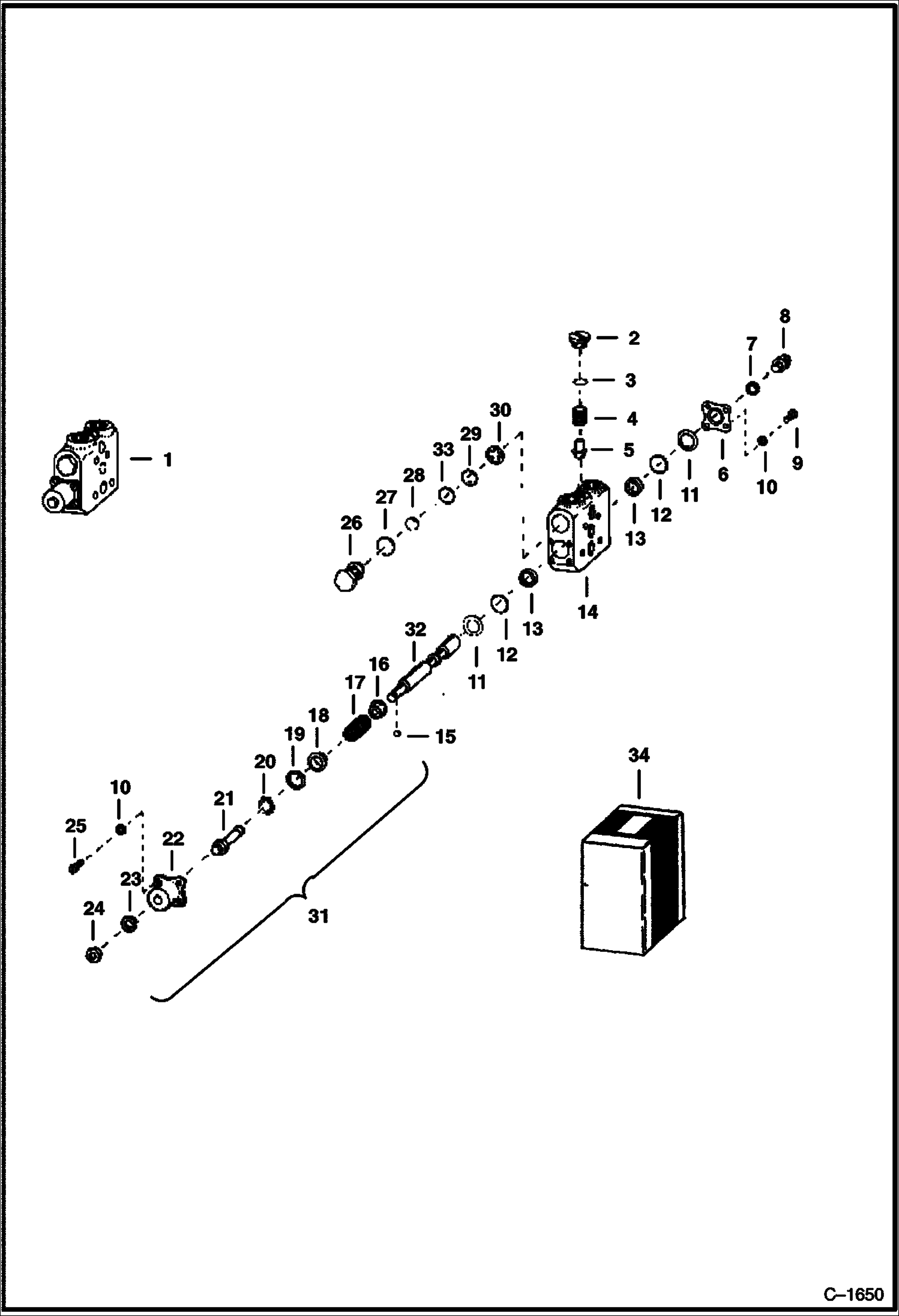

Запчасти Bobcat 900s VALVE SECTION (Lift) HYDRAULIC SYSTEM

1

6631492

SECTION valve - Ref. 2-32

2

6510782

PLUG check - W/Ref. 3-5

3

79K8

O RING 10

4

6515082

SPRING

5

POPPET NSS

6

6510751

RETAINER

7

6518364

WASHER

8

898372

ADAPTOR clevis

9

5C410

BOLT W/Lock Washer

10

WASHER NSS

11

6510767

PLATE

12

6510787

O-RING

13

945225

SEAL quad ring

14

HOUSING NLA

15

BALL NSS

16

COLLAR NSS

17

SPRING NSS

18

COLLAR NSS

19

RETAINER NSS - ball

20

RETAINER NSS - snap ring

21

POSITIONER NSS

22

BONNET NSS

23

4E7

WASHER lock

24

7D7

NUT

25

6647692

SCREW W/Lock Washer - Was 5C000416B - A

26

6518317

VALVE anti-cavitation - W/Ref. 27-30

27

58K23

O RING 10

28

BALL NSS

29

58K022

O-RING 10

30

RETAINER NSS

31

6598051

POSITION ref. 15-25

32

SPOOL NLA

33

6669641

BKUP RING

34

6660105

SEAL KIT See Illustration VALVE ASSEMBLY/ C1649 COMPLETE FOR 1 SECTION & 2-REF.5, 1-REF.6
