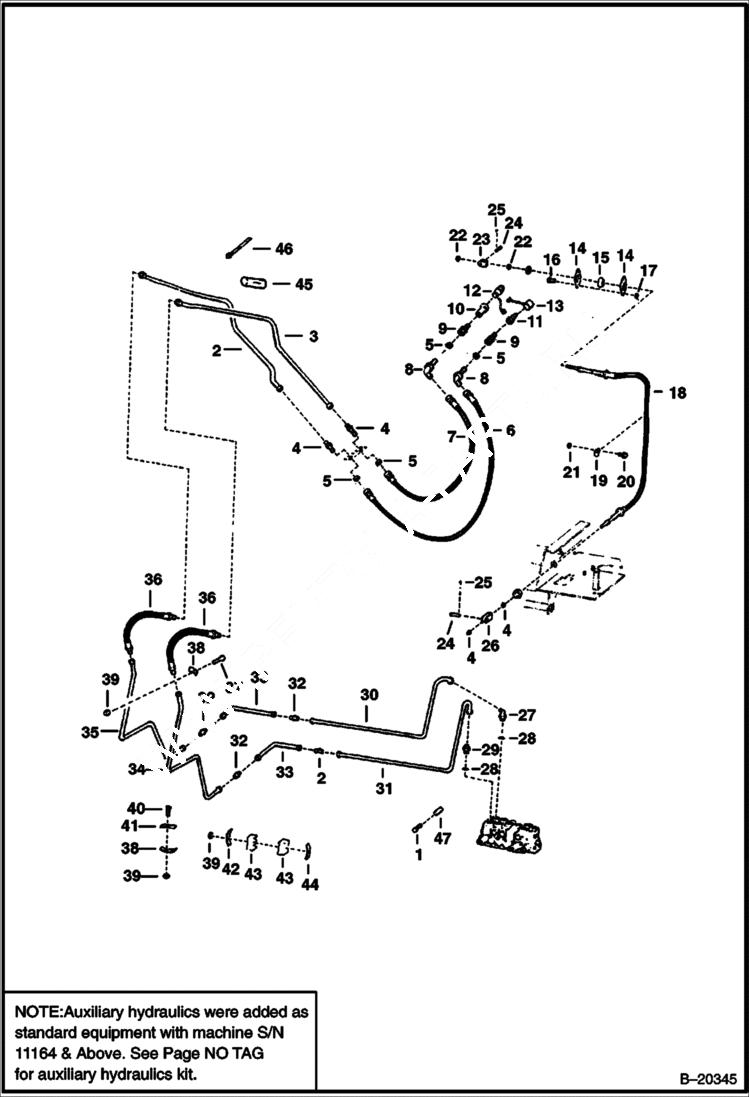

Запчасти Bobcat 900s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

17C424

BOLT

2

6592393

TUBE

3

6592392

TUBE

4

45K8

ADAPTOR

5

86F8

NUT 5

6

6531364

HOSE

7

6531363

HOSE

8

88F8

FITTING

9

6649016

ADAPTER

10

6515596

QUICK COUPLER quick - Female

10

25K40110

O RING 10

10

73K219

BK UP RG

11

6515597

QUICK COUPLER quick - Male

12

6515598

PLUG

13

6515599

CAP

14

6584087

FLANGETTE

15

6584086

BEARING

16

17C412

BOLT 5

17

85D4

NUT 5

18

6593660

CABLE

19

30H30

CLAMP

20

17C516

BOLT

21

85D5

NUT 5

22

8D4

NUT

23

6593605

CLEVIS

24

663350

PIN Was 6514548 - A

25

1F416

PIN Was 1F-412 - D

26

6631576

CLEVIS

27

18K8

FTG W/Ref. 28

28

79K12

O RING 10

29

15K8

FITTING W/Ref. 28

30

6590941

TUBE

31

6590942

TUBE

32

87F8

UNION

33

6548419

TUBE

34

6548240

TUBE

35

6548241

TUBE

36

1303515

HYD HOSE

37

17C632

BOLT 5

38

6502426

CLAMP Was 6503782 - B

39

85D6

NUT, 5

40

17C636

BOLT

41

6592747

PLATE

42

6592507

PLATE

43

6592506

CLAMP

44

6592748

SPACER

45

6620419

SHIELD bulk - Sold Per Foot

46

6624289

STRAP, TIE

47

6564970

SPACER
