Запчасти Bobcat 900s LIFT CYLINDER HYDRAULIC SYSTEM

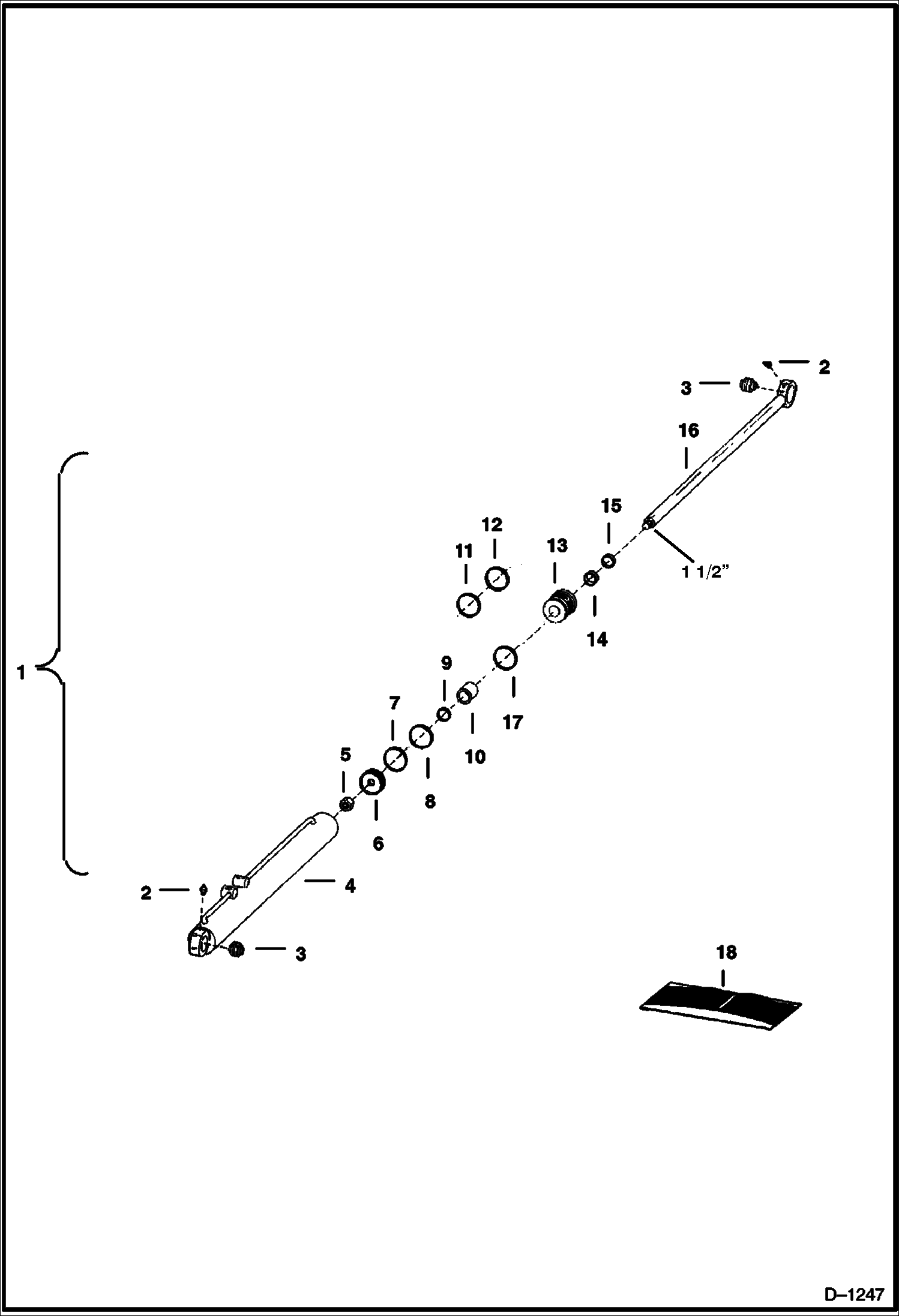

Схема запчастей Bobcat 900s - LIFT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6544551

CYLINDER lift - RH

1

6544525

CYLINDER lift - LH

2

10H25

FITTING, GREASE 5

3

6546879

BUSHING

4

6592047

CASE RH

4

6592046

CASE LH

5

6591586

NUT 1.5'' (38,1 mm) dia thread

6

6544540

PISTON

7

1530265

PISTON SEAL piston - Was NSS - D

8

25K30300

O RING 10 Was 54K30300 - A

9

O-RING NSS

10

6544542

STOP

11

O RING 10 NLA - Order Ref. 17 - Was 54K60304 - B

12

RING NLA - back-up - Order Ref. 17 - Was 73K338 - B

13

6544544

HEAD

14

6671153

SEAL Was NSS - D

15

6686998

WIPER, ROD CYL Was 6666545 - A

16

6529596

ROD

17

7008353

SEAL, QUAD

18

7196893

KIT, SEAL Ref. 5, 7, 8, 14, 15 & 17 - Was 7137575 - A

Выбрано товаров: 20
