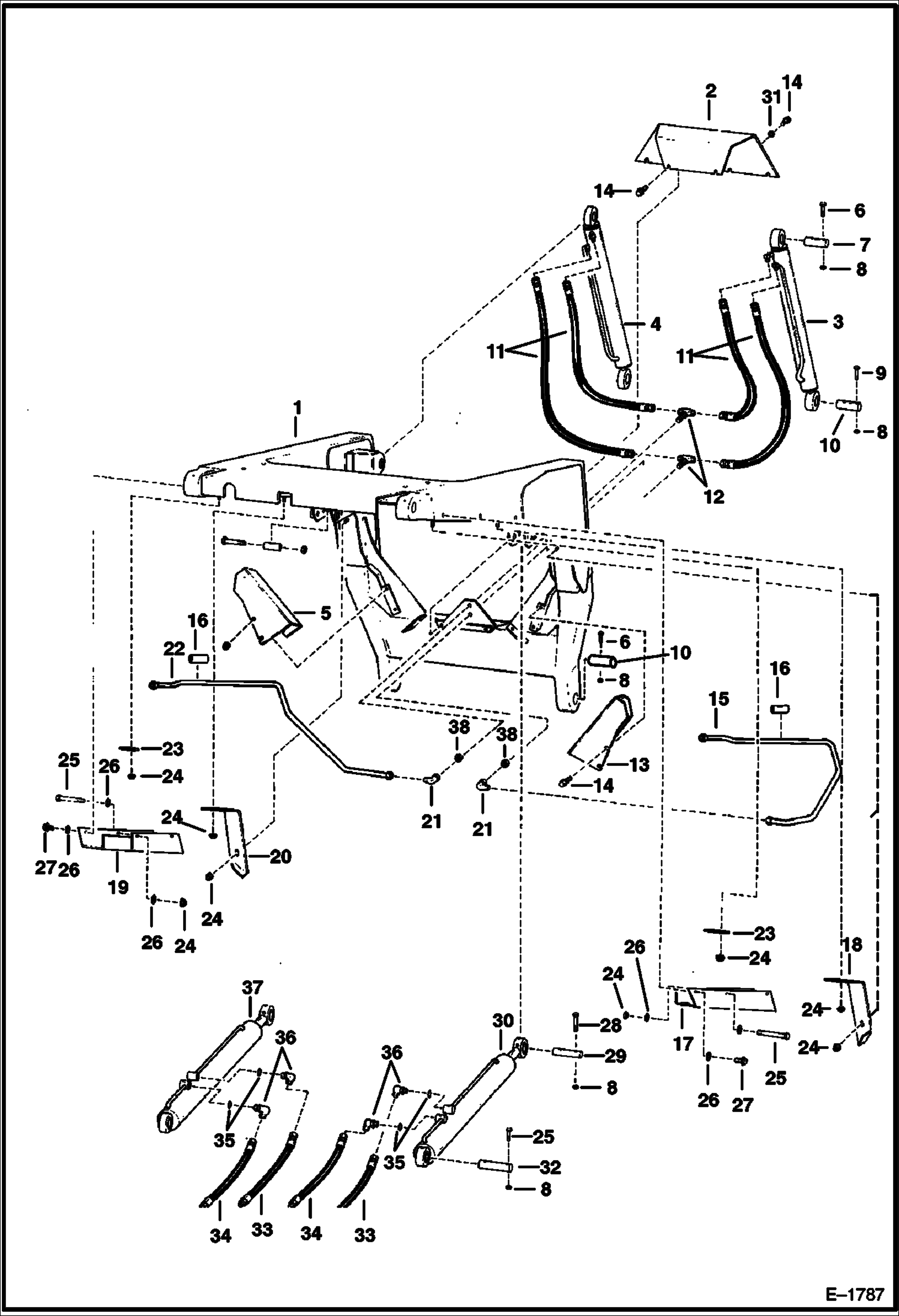

Запчасти Bobcat 900s LIFT ARM HYDRAULICS HYDRAULIC SYSTEM

1

LIFT ARM See Illustration MAIN FRAME & ATT. PARTS/ E1790 NLA - Was 6529723 - A

2

6531362

SHIELD Was 6592370 - A

3

CYLINDER See Illustration TILT CYLINDER/ B20344 See Illustration TILT CYLINDER/ C1863 TILT - R.H.

4

CYLINDER See Illustration TILT CYLINDER/ B20344 See Illustration TILT CYLINDER/ C1863 TILT - L.H.

5

6592377

SHIELD

6

17C656

BOLT

7

6561775

PIN

8

85D6

NUT, 5

9

17C648

BOLT 5

10

6546749

PIN

11

6592373

HOSE

12

90F8

TEE

13

6592378

SHIELD

14

84G3712

BOLT 5

15

6592391

TUBE

16

6624591

SHIELD Was 6592387 - A

17

6592366

SHIELD

18

6592376

SHIELD

19

6592367

SHIELD

20

6592368

SHIELD

21

11K8

ELBOW

22

6592390

TUBE

23

6592374

PLATE

24

6599336

NUT

25

17C672

BOLT

26

25E18

WASHER

27

84G3716

SCREW 5

28

17C648

BOLT 5

29

6561773

PIN

30

6544551

CYLINDER See Illustration LIFT CYLINDER/ D1247 - lift - RH

31

25E20

WASHER

32

6561774

PIN

33

6592460

HOSE

34

6592459

HOSE

35

79K12

O RING 10

36

17K8

FITTING

37

6544525

CYLINDER See Illustration LIFT CYLINDER/ D1247 - lift - LH

38

86F8

NUT 5
