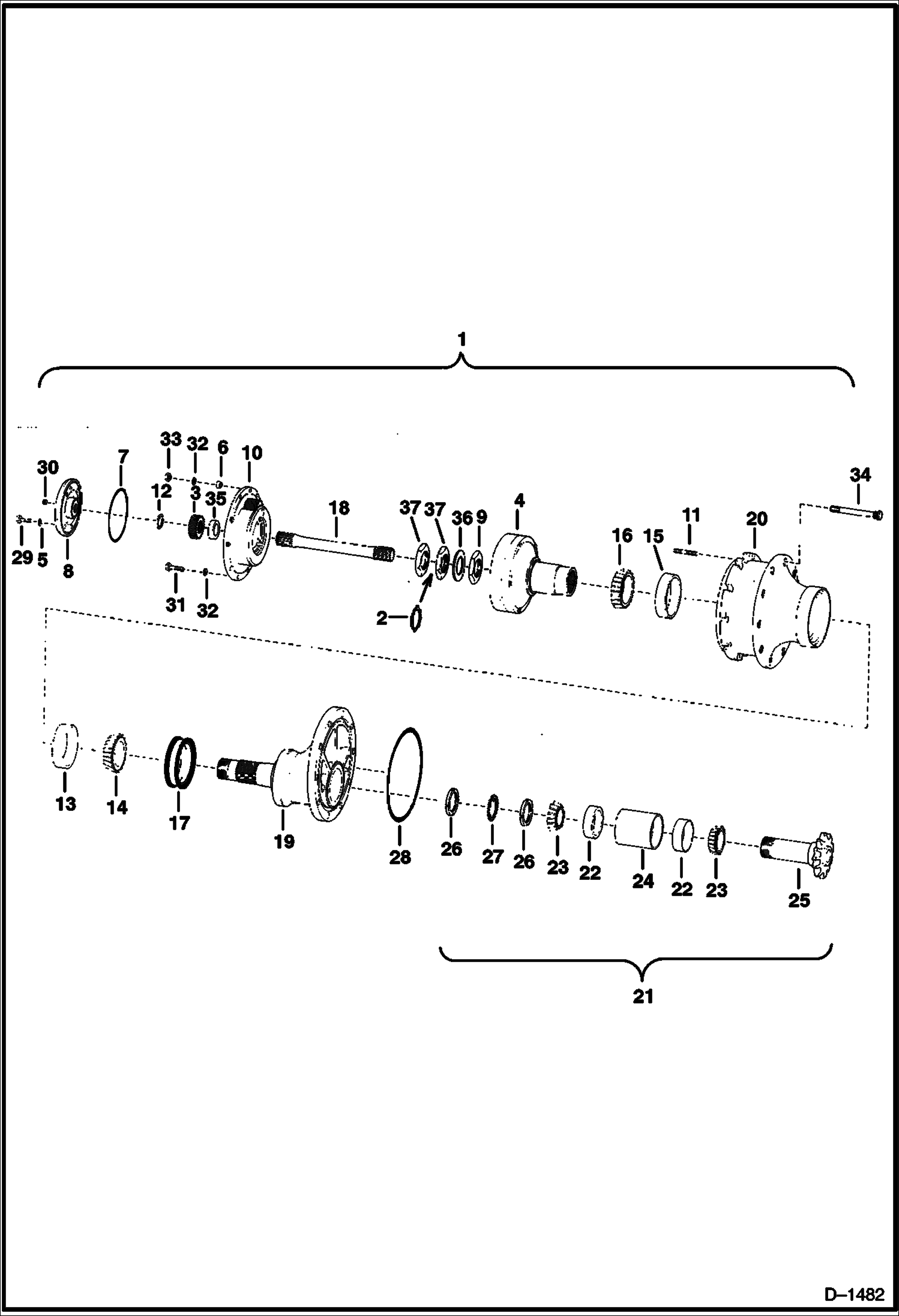

Запчасти Bobcat 900s PLANETARY AXLE DRIVE TRAIN

1

AXLE ASSY. NLA - Was 6557999 - A

2

101274

LOCK locking tooth

3

106058

GEAR SUN sun

4

113850

GEAR HUB

5

112278

WASHER

6

112287

DOWEL

7

114089

SEALRING

8

114119

CAP

9

NUT NLA - Also Order Ref. 36 & 37 - Was 114433B - A

10

112747

SPIDER See Illustration PLANETARY SPIDER/ B8262

11

116419

STUD

12

224028

RING

13

672004

BEARING

14

672005

CONE

15

672181

CUP

16

672182

CONE bearing

17

6005235

SEAL

18

6557985

SHAFT

19

SPINDLE NLA - Was 6557996 - A

20

6557994

HUB W/Ref. 34

21

6557998

SHAFT ASSY. ref. 22-27

22

6648782

BEARING CUP Was 6512922 - A

23

6648780

BEARING CONE Was 6512923 - A

24

6557983

TUBE

25

SPROCKET NLA - Was 6557986 - A

26

24H15

LOCKNUT

27

26H15

WASHER

28

6558518

O-RING

29

17C720

BOLT

30

16F4

PLUG

31

100970

BOLT

32

106762

WASHER

33

64D8

NUT

34

6557989

STUD

35

126969

WASHER thrust

36

6538987

WASHER

37

NUT Was 6538988 - A
