Запчасти Bobcat 900s BRAKE LINKAGE DRIVE TRAIN

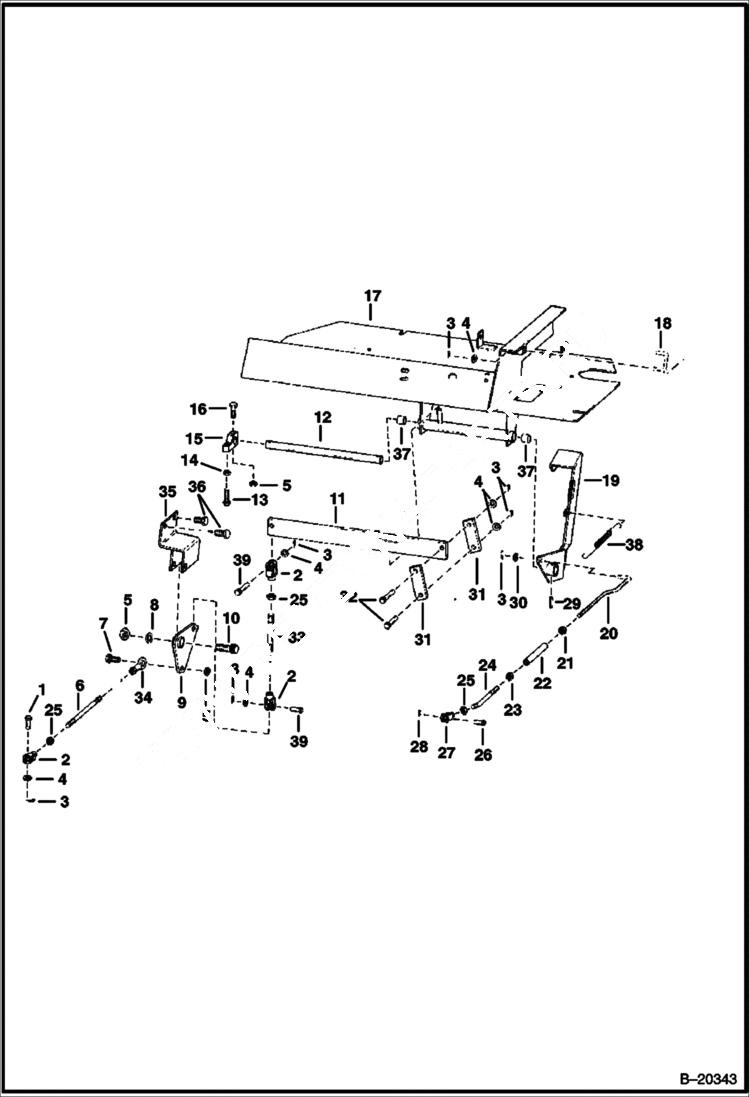

Схема запчастей Bobcat 900s - BRAKE LINKAGE DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

4F8127

PIN

2

6590388

CLEVIS

3

1F416

PIN

4

25E21

WASHER 5

5

85D6

NUT, 5

6

625183

ROD

7

17C624

BOLT 5

8

25E18

WASHER

9

6590591

BELLCRANK

10

730170

BOLT

11

6590372

ANGLE

12

6590392

SHAFT

13

97G824

BOLT

14

7D8

NUT 5

15

6590586

BLOCK

16

17C632

BOLT 5

17

6593635

FLOORBOARD

18

6590379

LEVER lock

19

6590364

BRAKE PEDAL

20

6590383

ROD

21

61D6

NUT 5

22

6516336

TURNBUCKLE

23

6504996

NUT

24

6593583

ROD

25

62D6

NUT 5

26

663350

PIN

27

6508041

YOKE

28

1F416

PIN Was 1F-412 - D

29

668312

PIN ROLL

30

25E17

WASHER 5

31

6590376

BAR

32

6529779

PIN Was 665708B - A

33

1304770

ROD

34

6512954

ROD END R.H. threads

35

6590384

BRACKET

36

17C628

BOLT

37

730828

BUSHING

38

6591126

SPRING

39

6529778

PIN Was 5253975B - A

Выбрано товаров: 39
