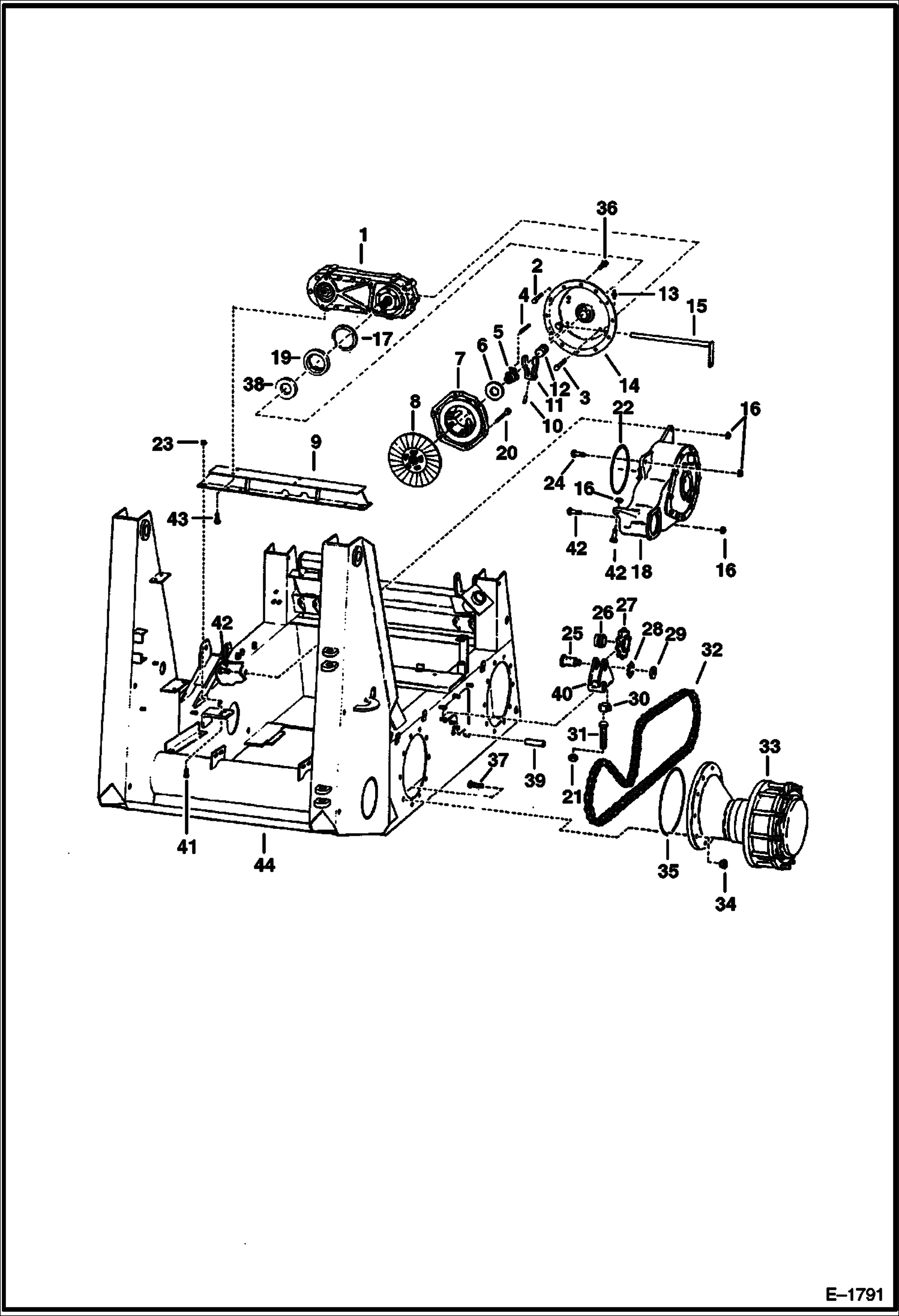

Запчасти Bobcat 900s DRIVE TRAIN DRIVE TRAIN

1

CASE See Illustration TRANSFER CASE/ B20287 NLA - TRANSFER - WAS 6505121 - A

2

17C864

BOLT

3

17C856

BOLT

4

957623

SPRING

5

6507604

HUB

6

6513687

BEARING throw out

7

6631496

PLATE

8

6631497

PLATE clutch

9

6505119

SUPPORT

10

675351

ROLL PIN

11

FORK NLA - Was 6591436 - A

12

6505229

SLIDE

13

38H15

FITTING

14

6593575

HOUSING

15

6505120

ARM clutch activating

16

55D12

NUT Was 57D000012B

17

6503964

GASKET

18

GEARCASE See Illustration REDUCTION GEARCASE/ D1440

19

6591403

ADAPTER

20

6593093

BOLT

21

8D16

NUT Was 62D000016B - B

22

25K80816

O RING 10

23

83D8

NUT 5

24

6552153

BOLT

25

6544565

SHAFT idler mounting

26

6519877

BEARING

27

6544566

SPROCKET idler

28

26H8

LOCKWASHR

29

24H8

NUT

30

6591870

BLOCK swivel

31

6591300

BOLT

32

6559574

CHAIN super

32

6591015

LINK super

33

AXLE ASSY. See Illustration PLANETARY SPIDER/ B8262 See Illustration PLANETARY AXLE/ D1482

34

6529776

NUT wheel - Was 6503766 - A

35

6558518

O-RING

36

29CM1035

SCREW Was 30CM01035B - B

37

6592304

BOLT wheel

38

6513499

SEAL oil

39

6591393

PIN

40

6591397

BRACKET idler - L.H.

40

6591398

BRACKET idler - R.H.

41

31C828

BOLT

42

17C1244

BOLT

43

17C816

BOLT

44

6529627

MAIN FRAME
