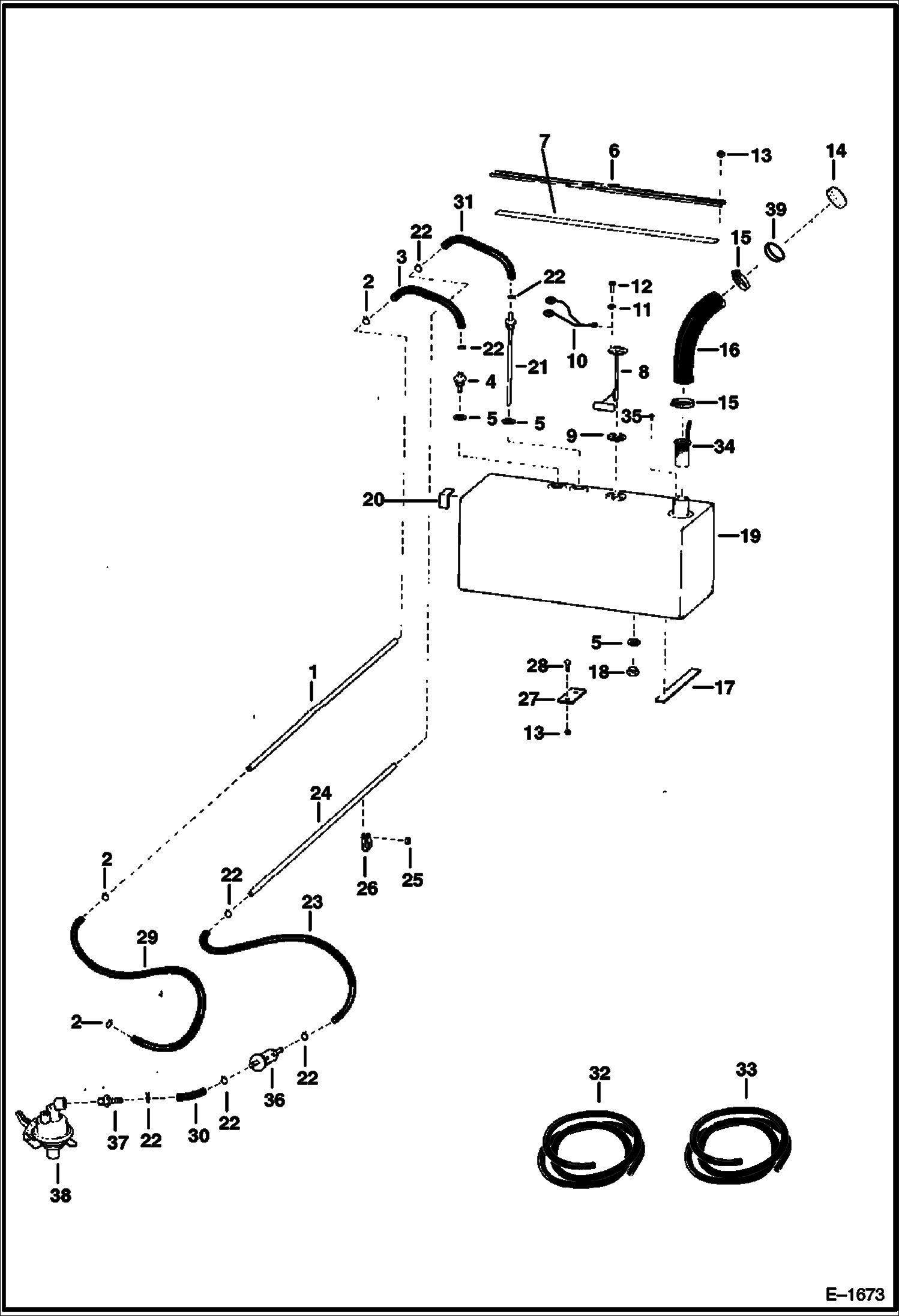

Запчасти Bobcat 900s FUEL SYSTEM MAIN FRAME

1

6590127

TUBE

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

HOSE NLA - 13.5'' (343 mm) long - Order Ref. 32

4

6518596

ADAPTER

5

6504426

GASKET

6

6503894

BAR holddown

7

6542877

STRAP web - Bulk - Sold Per Foot - Was 6503895 - A

8

6598921

SENDER fuel level

9

6519201

GASKET

10

6594344

HARNESS

11

17E10

WASHER

12

86G1008

SCREW machine

13

85D6

NUT, 5

14

6515566

CAP fuel

14

CAP NLA - locking - Purchase Locally

15

42H52

CLAMP

16

6504103

HOSE filler

17

6504882

STRAP web

18

16F12

PLUG pipe

19

6501671

TANK

20

6504405

PAD

21

6543961

TUBE suction

22

42HS04

CLAMP, HOSE Was 6515575 - A

23

HOSE NLA - 60'' (1524 mm) long - Order Ref. 33

24

6590126

TUBE

25

85D4

NUT 5

26

31H12

CLIP

27

6507614

COVER

28

37C624

BOLT Was 7C624 - A

29

HOSE NLA - 60'' (1524 mm) long - Order Ref. 32

30

HOSE NLA - 2'' (51 mm) long - Order Ref. 33

31

HOSE NLA - 21.5'' (546 mm) long - Order Ref. 33

32

6577821

HOSE bulk - sold per foot - Was 672221 - A

33

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

34

6529358

STRAINER

35

18G1008

SCREW

36

6631011

FILTER

37

6505814

ADAPTER

38

6631285

FUEL PUMP See Illustration FUEL SYSTEM/ D1730

39

6515570

NECK
