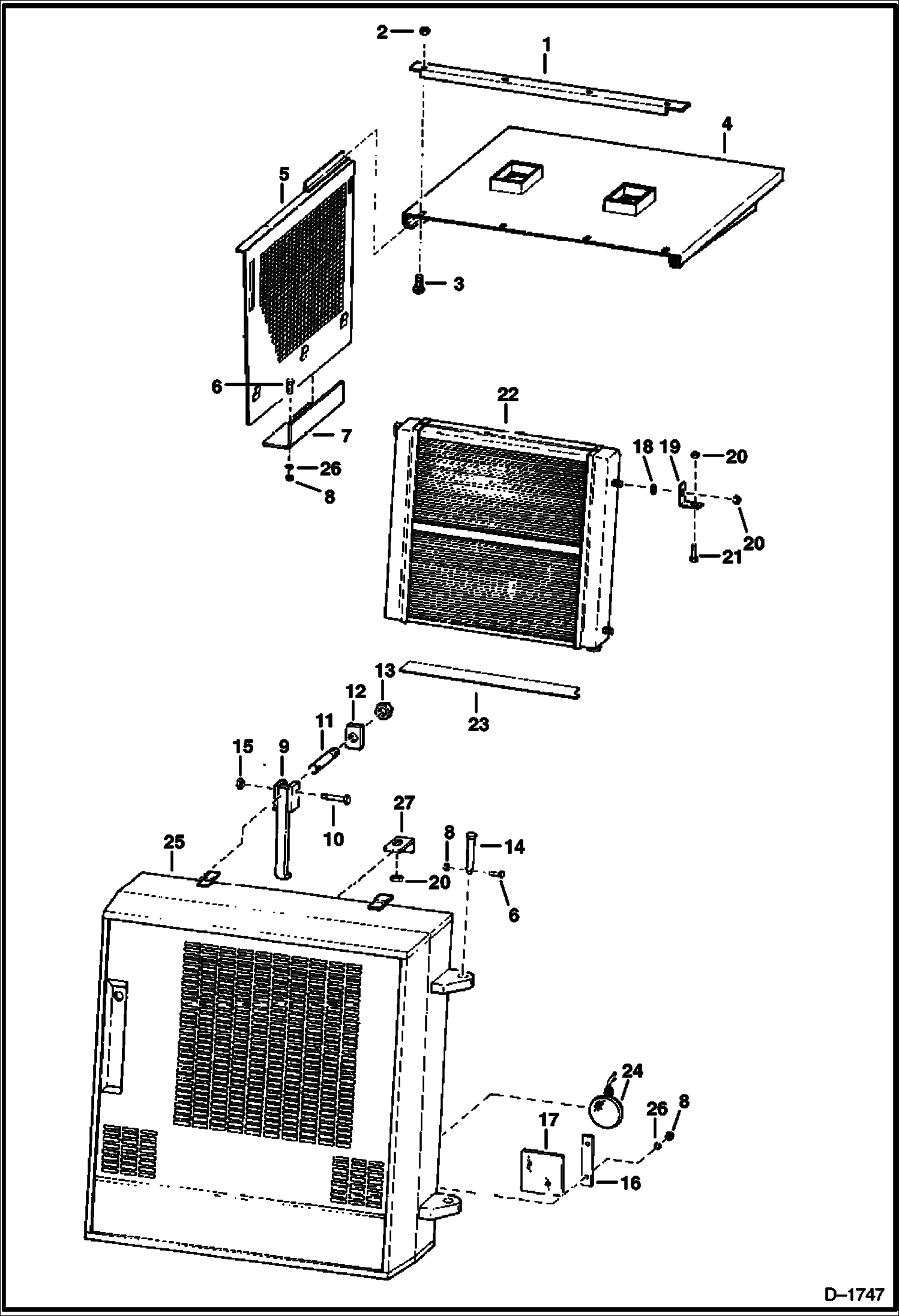

Запчасти Bobcat 900s REAR DOOR & ENGINE COVER MAIN FRAME

1

6593619

SHIELD

2

85D5

NUT 5

3

7C512

SCREW

4

6593615

COVER engine

5

PANEL NLA - L.H. - Was 6593672 - A

5

PANEL NLA - R.H. - Was 6593673 - A

6

17C620

BOLT

7

6592479

BRACKET guide - R.H.

7

6592480

BRACKET guide - L.H.

8

85D6

NUT, 5

9

6551347

HANDLE

10

17C840

BOLT

11

6592177

BOLT

12

6551407

TAB

13

8D16

NUT

14

6502783

PIN

15

85D8

NUT, 5

16

6592318

STRAP

17

6592319

SHIELD light

18

6592147

WASHER neoprene

19

6592144

BRACKET

20

6599336

NUT

21

BOLT NLA - carriage bolt - 3/8'' x 1'' - Was 7C000616B - A

22

6592146

OIL COOLER

23

6592145

PAD

24

6519340

LIGHT

24

LENS NLA - Was 6515219 - A

24

6511994

NUT flange

24

877752

4411 BULB

24

6655055

BULB Was 506475B - A

25

6592148

REAR DOOR

26

25E17

WASHER 5

27

6592465

BRACKET engine cover
