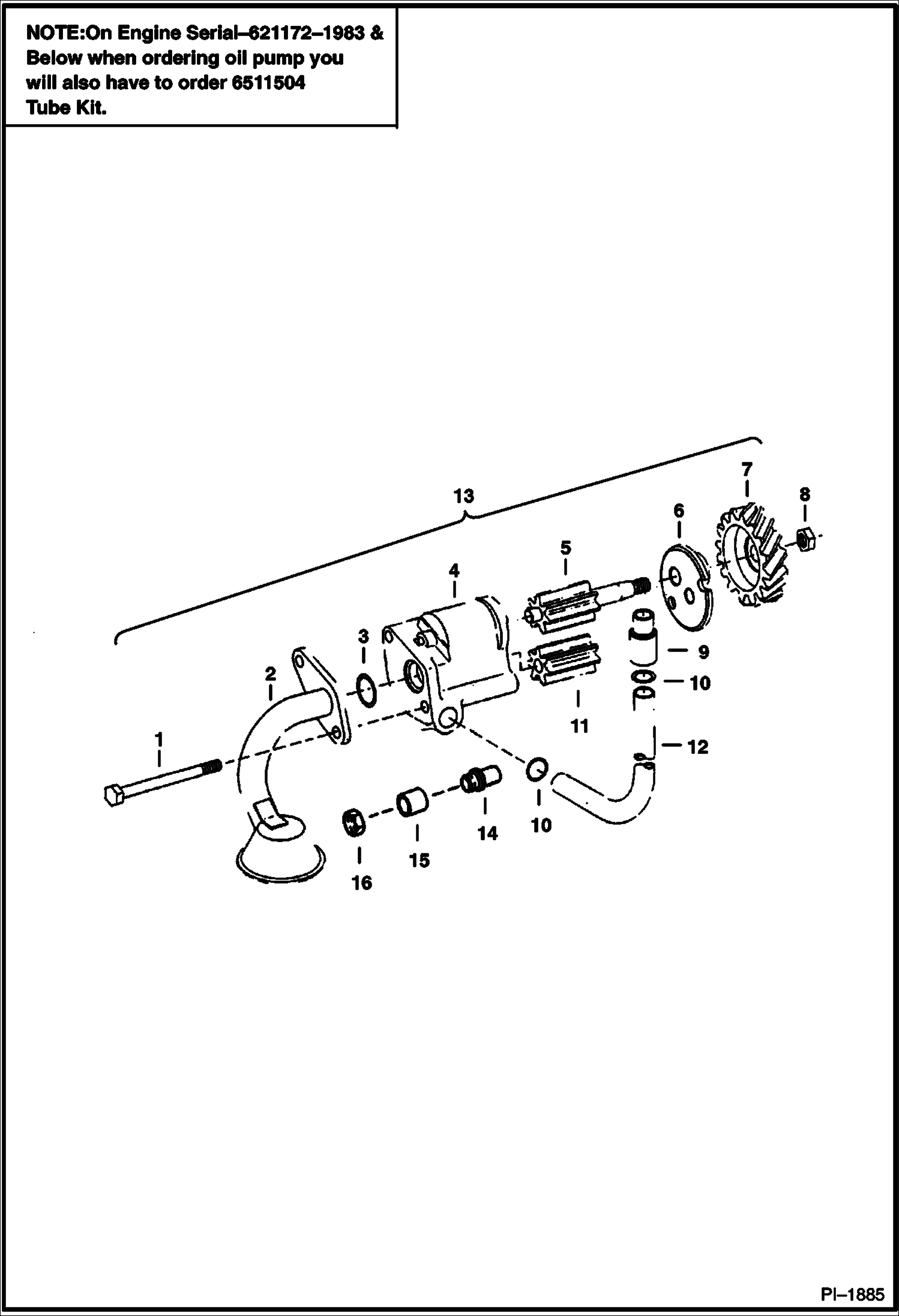

Запчасти Bobcat 900s ENGINE 0IL PUMP POWER UNIT

1

6513309

BOLT

2

6511496

INTAKE

3

25K40100

O RING 10

4

HOUSING NLA - W/Shaft - Order Ref. 4 & 12 - Was 6511499 - A

4

6660279

HOUSING W/Ref. 14

5

6511500

SHAFT W/Gear - Also Order Ref. 11

6

6511501

COVER

7

6511497

GEAR

8

7D8

NUT 5

9

6511498

CONNECTOR

10

25K20024

O RING 10

11

6511733

GEAR Also Order Ref. 5

12

6511504

KIT outlet tube - Ref. 12 & 14-16

12

6660280

TUBE

13

6598367

PUMP Ref. 1-6, 10 & 11 - See Note

14

6633887

ADAPTER

15

6634100

BUSHING

16

6634099

NUT
