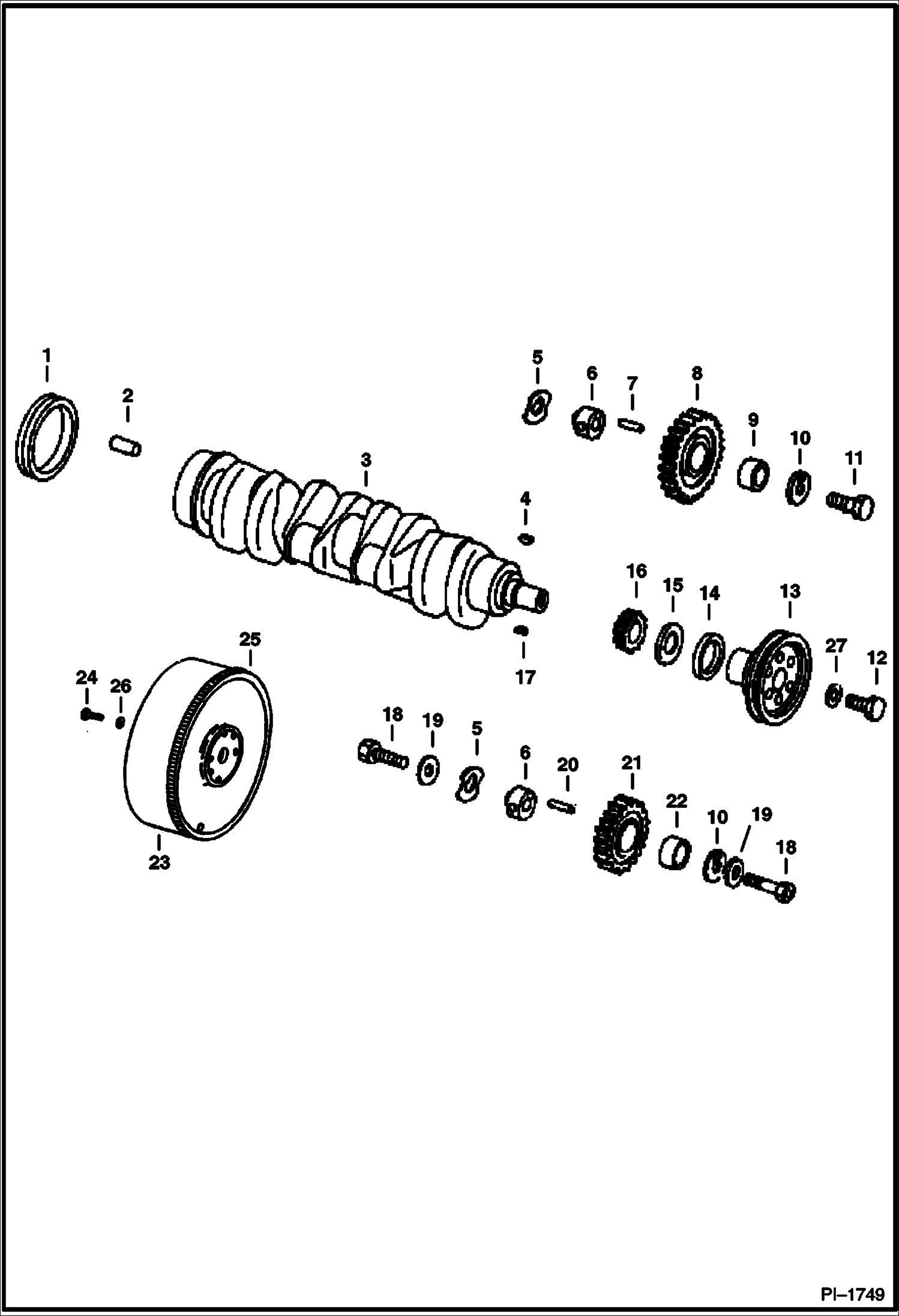

Запчасти Bobcat 900s CRANKSHAFT & IDLER GEARS POWER UNIT

1

6511471

SEAL W/Wear Ring

2

6511702

DOWEL PIN

3

6511470

CRANKSHAFT W/Gear, key & dowel pin

4

6J405

KEY

5

6511462

WASHER inner thrust

6

6511463

SHAFT idler gear

7

654618

PIN spring

8

6511464

GEAR upper idler - W/Bushing

9

6511668

BUSHING

10

6511465

WASHER

11

8C836

BOLT

12

17C824

BOLT 5

13

6511467

PULLEY

14

6511729

SEAL oil, front

15

6511468

SLINGER oil

16

6511469

GEAR crankshaft

17

6511778

KEY special

18

9C912

BOLT

19

WASHER NLA - Was 997860B - A

20

656496

PIN spring

21

6511472

GEAR lower idler - W/Bushing

22

6511669

BUSHING

23

6511681

FLYWHEEL W/Ref. 25

24

BOLT NLA - Order 17C000824B & Ref. 26

24

17C824

BOLT 5

25

6511680

RING GEAR

26

6598812

WASHER special

27

6511466

SPACER
