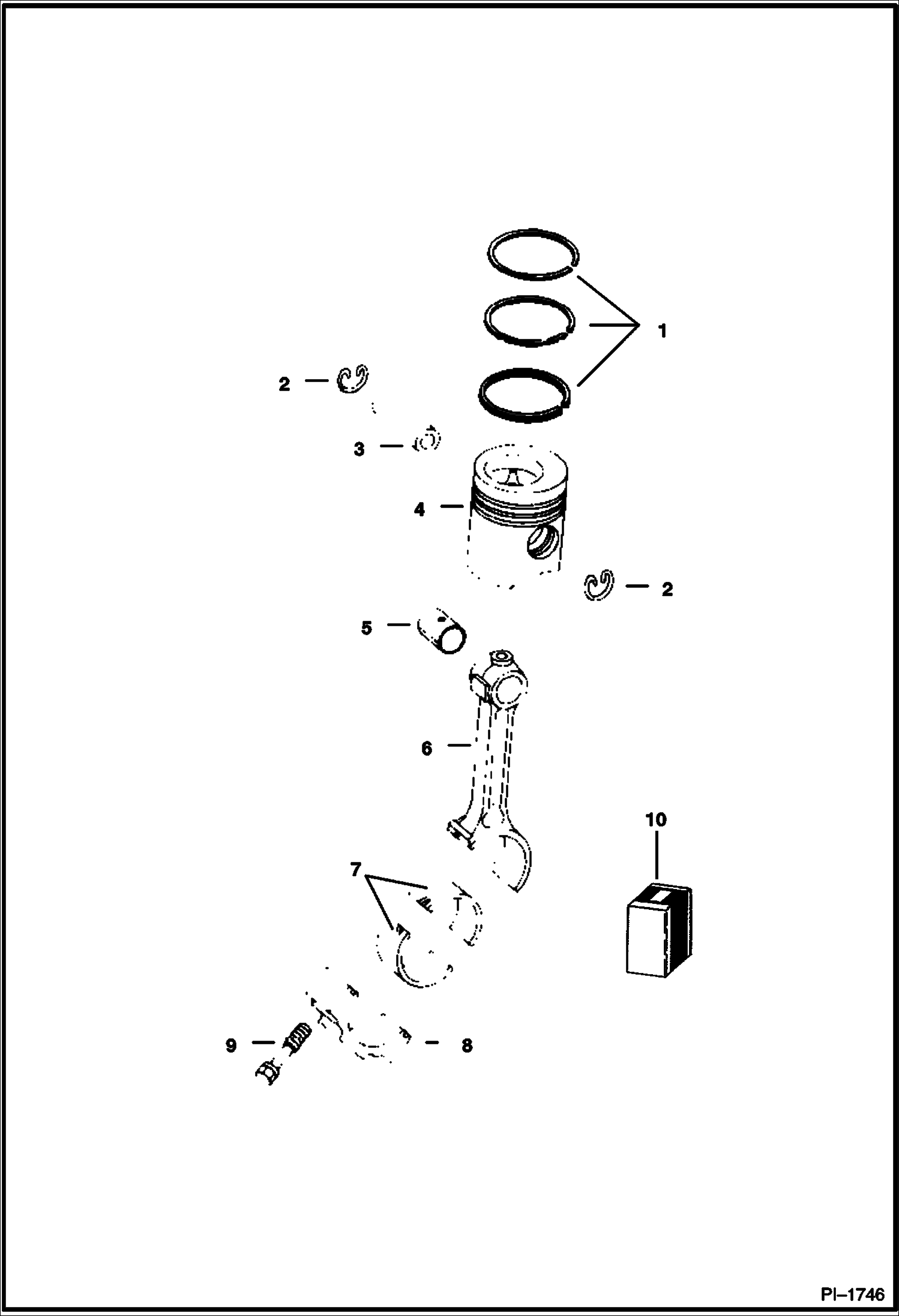

Запчасти Bobcat 900s PISTON, RINGS & CONNECTING RODS POWER UNIT

1

6511486

RINGS piston - Std.

2

713133

SNAP RING

3

6511487

PIN piston

4

6511488

PISTON

5

6511670

BUSHING connecting rod

6

6511490

ROD connecting - W/Ref. 5, 8 & 9

7

6511491

BEARING

7

6511492

BEARING .002''

7

6511493

BEARING .010''

7

6511494

BEARING .020'' - One bearing

7

6511495

BEARING .030'' - One bearing

8

CAP NSS - W/Ref. 6

9

6511489

BOLT

10

6669440

LINER KIT piston & liner - W/6511488 pistons & 6511411 liners
