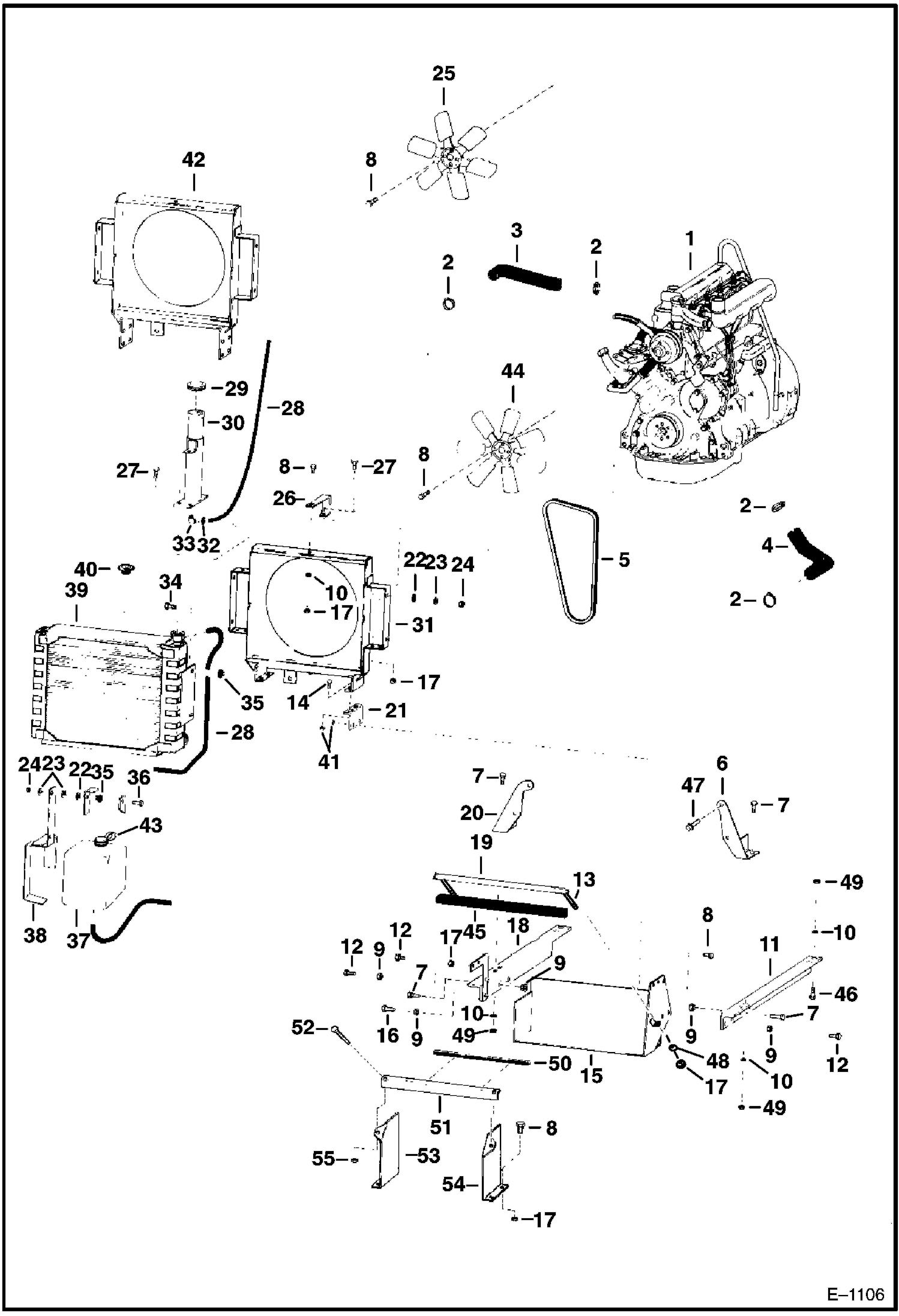

Запчасти Bobcat 900s ENGINE COOLING & MOUNTING PARTS POWER UNIT

1

ENGINE See Illustration ALTERNATOR/ B20311 See BTI107 NLA - John Deere

1

ENGINE See Illustration JOHN DEERE ENGINE/ B20331 John Deere

2

42H32

HS CLAMP5

3

6543966

HOSE radiator

4

6543965

HOSE radiator

5

FAN BELT NLA - Order 6590452 Pulley & 6512155 Fan Belt

5

6512155

FAN BELT

6

6548931

BRACKET engine mounting - R.H.

7

31C828

BOLT

8

17C616

BOLT 5

9

83D8

NUT 5 Was 85D000008B - B

10

106762

WASHER

11

6548463

BRACKET engine mounting - R.H.

12

31C824

BOLT 10 was 17C000824B - B

13

17C672

BOLT

14

31C620

BOLT

15

6548445

HOUSING

15

6590033

HOUSING battery

16

31C832

BOLT was 17C000832B - B

17

85D6

NUT, 5

18

6590060

BRACKET engine mounting - L.H.

18

6548479

BRACKET engine mounting - L.H.

19

6591279

RETAINER battery

20

6548928

BRACKET engine mounting - L.H.

21

6551838

BRACKET radiator

22

619034

WASHER

23

6548799

WASHER

24

59D6

NUT

25

6511676

FAN pusher - 6 Blade

25

6511908

FAN puller - 7 Blade - Optional

26

6543999

BRACKET

26

6590868

BRACKET

27

17C612

BOLT 5

28

HOSE NLA - Was 6590822 - A

29

6515566

CAP

30

6590208

TUBE

31

6551842

HOUSING fan

32

42HS04

CLAMP, HOSE Was 6515575 - A

33

6515156

CONNECTOR

34

17C624

BOLT 5

35

568276

DAMPNER shock

36

17C628

BOLT

37

TANK NLA - coolant overflow-Order 6515566 , 6590208 & 6515156 - Was 6511986 - A

38

BRACKET NLA

39

RADIATOR NLA - Was 6512563 - A

40

6511985

CAP

41

83D6

NUT 5

42

6548800

HOUSING fan

43

CAP NLA

44

FAN NLA - pusher - 7 blade - Order Ref. 25 - Was 6514860 - A

45

6591527

STRIP

46

31C824

BOLT 10

47

31C1024

BOLT

48

25E17

WASHER 5

49

83D8

NUT 5

50

6512686

MOULDING bulk - sold per foot - Was 6620417 - A

51

6529655

RETAINER

52

17C548

BOLT

53

PLATE NLA - L.H. - Was 6584642 - A

54

6584643

PLATE R.H.

55

85D5

NUT 5
