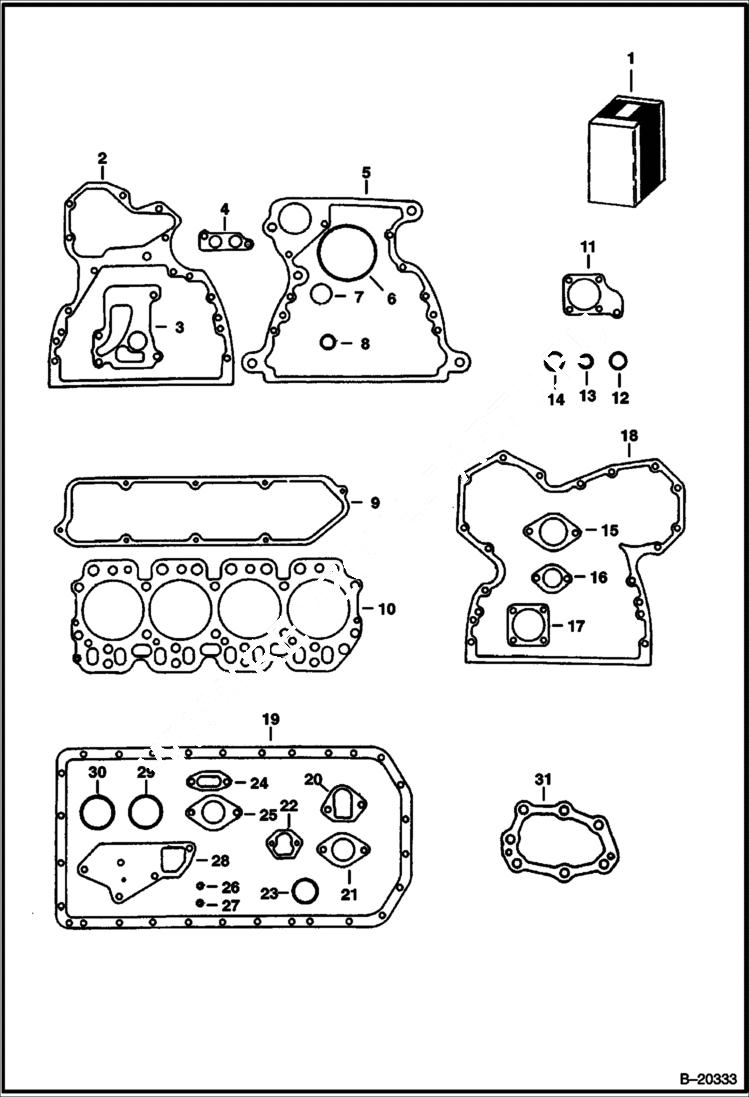

Запчасти Bobcat 900s GASKET KITS (Overhaul) POWER UNIT

1

6630460

GASKET KIT Overhaul - Includes head gasket - Also Order (8) 6599760 bolt

1

6630461

GASKET KIT Overhaul - Includes head gasket - Also order (8) 6599760 bolt

2

6511406

GASKET See Illustration EXHAUST MANIFOLD & FRONT PLATE/ PI1745 CYL. BLOCK PLATE

3

6656017

GASKET See Illustration ENGINE OIL COOLER & FILTER/ PI1744 OIL COOLER

4

6511528

GASKET See Illustration ENGINE OIL COOLER & FILTER/ PI1744 OIL FILTER ADAPTER

5

6511417

GASKET See Illustration FLYWHEEL HOUSING/ PI1733 FLYWHEEL HOUSING

6

6511412

KIT See Illustration CYLINDER BLOCK/ PI1770 O-RING CYL. LINER

7

6511506

GASKET See Illustration ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS/ D1227 OIL FILLER CAP

8

25K30018

O RING 10 See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 VENT TUBE

9

6599759

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 ROCKER ARM COVER - ALSO ORDER (8) 6599760 BOLT

10

6511734

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 CYLINDER HEAD

11

6511521

GASKET See Illustration ENGINE OIL COOLER & FILTER/ PI1744 LOWER OIL COOLER COVER

12

76K216

O RING See Illustration THERMOSTAT HOUSING ASSEMBLY/ B2892 BYPASS

13

25K20024

O RING 10 See Illustration ENGINE 0IL PUMP/ PI1885 OIL PUMP TUBE

14

25K40100

O RING 10 See Illustration ENGINE 0IL PUMP/ PI1885 OIL PUMP INTAKE

15

6511516

GASKET See Illustration ENGINE OIL COOLER & FILTER/ PI1744 OIL COOLER

16

6511718

GASKET See Illustration THERMOSTAT HOUSING ASSEMBLY/ B2892 THERM. HOUSING

17

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 NLA - air inlet - Was 6511716 - A

18

6511507

GASKET See Illustration TIMING GEAR COVER/ PI1748 TIMING GEAR COVER

19

6511408

GASKET See Illustration OIL PAN/ PI1750 OIL PAN

20

6511508

GASKET See Illustration TIMING GEAR COVER/ PI1748 INJ. PUMP GEAR COVER

21

6511715

GASKET See Illustration EXHAUST MANIFOLD & FRONT PLATE/ PI1745 EXHAUST MANIFOLD

22

6652489

GASKET See Illustration FUEL LIFT PUMP/ PI1732 FUEL PUMP

23

78K20

O RING See Illustration BLOCK HEATER/ PI1747 cooler heater plug

24

6511672

GASKET See Illustration ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS/ D1227 OIL FILLER INLET

25

6511717

GASKET See Illustration THERMOSTAT HOUSING ASSEMBLY/ B2892 THERMOSTAT COVER

26

6511709

WASHER See Illustration FUEL INJECTION SYSTEM/ C2976 See Illustration FUEL INJECTION SYSTEM/ PI1742 FUEL INJ. NOZZLE, LOWER

27

6660937

WASHER See Illustration FUEL INJECTION SYSTEM/ C2976 See Illustration FUEL INJECTION SYSTEM/ PI1742 FUEL INJ. NOZZLE, UPPER

28

6511539

GASKET See Illustration WATER PUMP ASSEMBLY/ PI1738 WATER PUMP COVER, LOWER

29

76K142

O RING See Illustration ENGINE OIL COOLER & FILTER/ PI1744 OIL COOLER, INNER

30

6511691

O-RING See Illustration ENGINE OIL COOLER & FILTER/ PI1744 OIL COOLER, OUTER

31

6511510

GASKET See Illustration TIMING GEAR COVER/ PI1748 TIMING GEAR COVER
