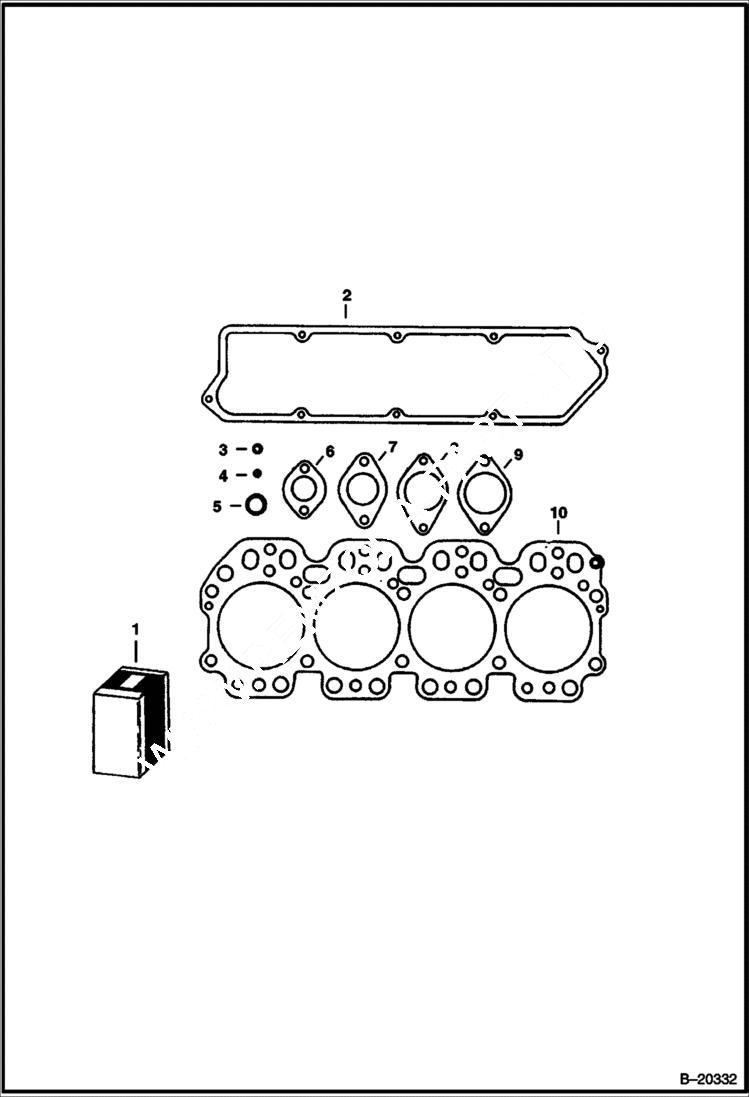

Запчасти Bobcat 900s GASKET KIT (Tune-up) POWER UNIT

1

6658825

GASKET KIT Tune-up - W/Ref. 2-10

2

6599759

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 rocker arm cover - Also Order (8) 6599760 bolt

3

6660937

WASHER See Illustration FUEL INJECTION SYSTEM/ C2976 See Illustration FUEL INJECTION SYSTEM/ PI1742 upper nozzle

4

6511709

WASHER See Illustration FUEL INJECTION SYSTEM/ C2976 See Illustration FUEL INJECTION SYSTEM/ PI1742 lower nozzle

5

25K30018

O RING 10 See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 vent tube

6

6511718

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 thermostat housing

7

6511715

GASKET See Illustration EXHAUST MANIFOLD & FRONT PLATE/ PI1745 exhaust manifold

8

6511717

GASKET See Illustration THERMOSTAT HOUSING ASSEMBLY/ B2892 thermostat cover

9

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 NLA - air inlet - Was 6511716 - A

10

6511734

GASKET See Illustration CYLINDER HEAD & ROCKER ARM COVER/ PI1739 cylinder head
