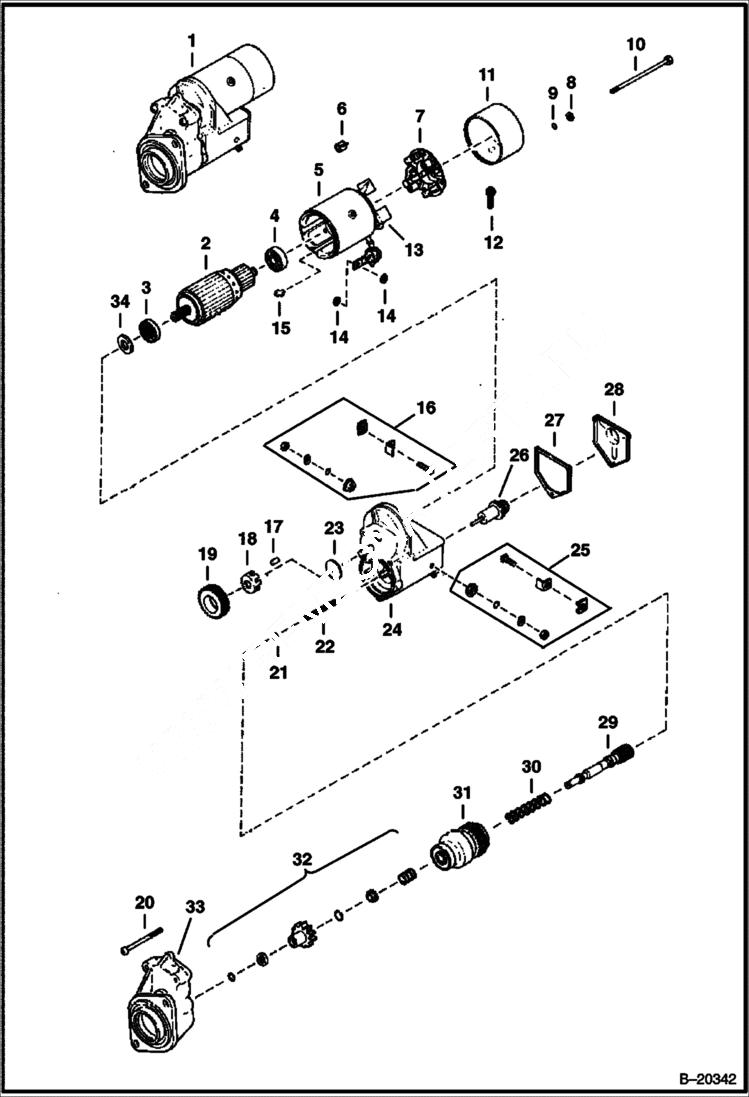

Запчасти Bobcat 900s STARTER (Nippondenso - Engine S/N 118376 & Above) ELECTRICAL SYSTEM

1

6632415

STARTER

1

6632415REM

STARTER

2

910111

ARMATURE W/Ref. 3 & 4

3

6632417

BEARING

4

6632418

BEARING

5

6632419

HOUSING ASSY.

6

6632421

SPRING

7

6632420

BRUSH HOLDER W/Ref. 6

8

6632427

WASHER

9

6632426

O-RING

10

6632425

BOLT

11

6632424

COVER

12

COVER NLA - Was 910115B - A

13

6632423

BRUSHES

14

6632422

WASHER

15

LOCK PLATE NLA - Was 910116B - A

16

TERMINAL NSS

17

6632430

ROLLER

18

6632429

RETAINER

19

6632428

PINION

20

6632438

BOLT

21

6632435

BALL

22

6632436

SPRING

23

6632437

SNAP RING

24

6632431

HOUSING W/Ref. 16 & 25-28

25

TERMINAL NSS

26

6632432

PLUNGER

27

6632433

GASKET

28

6632434

COVER

29

6632442

SHAFT

30

6632441

SPRING

31

6632440

DRIVE W/Ref. 29, 30 & 32

32

PINION KIT NSS

33

6632439

HOUSING

34

6632416

WASHER felt
