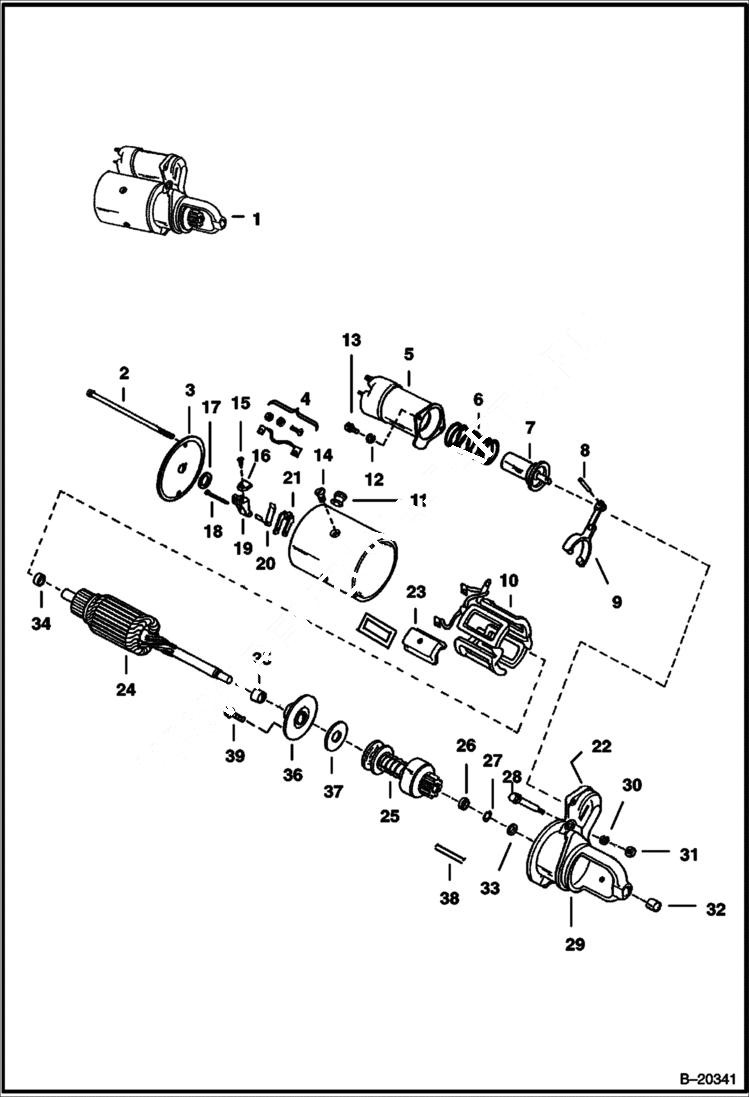

Запчасти Bobcat 900s STARTER (Delco - 1998367) ELECTRICAL SYSTEM

1

STARTER NLA - Was 6631597 - A

1

6631597REM

STARTER remanufactured

2

6630404

BOLT

3

6630408

FRAME W/Ref. 34

4

6511627

HOLDER

5

6599449

SOLENOID

6

SPRING NLA - Was 906910B - A

7

6599448

PLUNGER

8

PIN NLA - Was 999472B - A

9

896126

LEVER

10

6630407

COIL field

11

GROMMET NLA - Was 898131B - A

12

23E4

WASHER

13

SCREW NLA - Was 43G000408B - A

14

859377

SCREW

15

6517496

SCREW Ground

15

SCREW NLA - insulated - Was 65G000812B - A

16

6630403

BRUSH

17

WASHER NLA - Was 863995B - A

18

PIN NSS

19

6656398

HOLDER Was 891252B - A

20

6630406

SPRING

21

6511626

HOLDER

22

991374

GASKET

23

SHOE POLE NLA - Was 887834B - A

24

6511629

ARMATURE

25

6511630

DRIVE

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

6631600

HOUSING W/Ref. 32

30

23E5

L WASHER

31

NUT NLA - Was 856357B - A

32

860669

BUSHING

33

COLLAR NLA - Was 898127B - A

34

874935

BUSHING

35

BUSHING NLA - Was 907828B - A

36

6630411

PLATE center bearing - W/Ref. 35

37

6630412

WASHER

38

6630405

DOWEL PIN

39

SCREW NLA - W/Washer - Was 907827B - A
