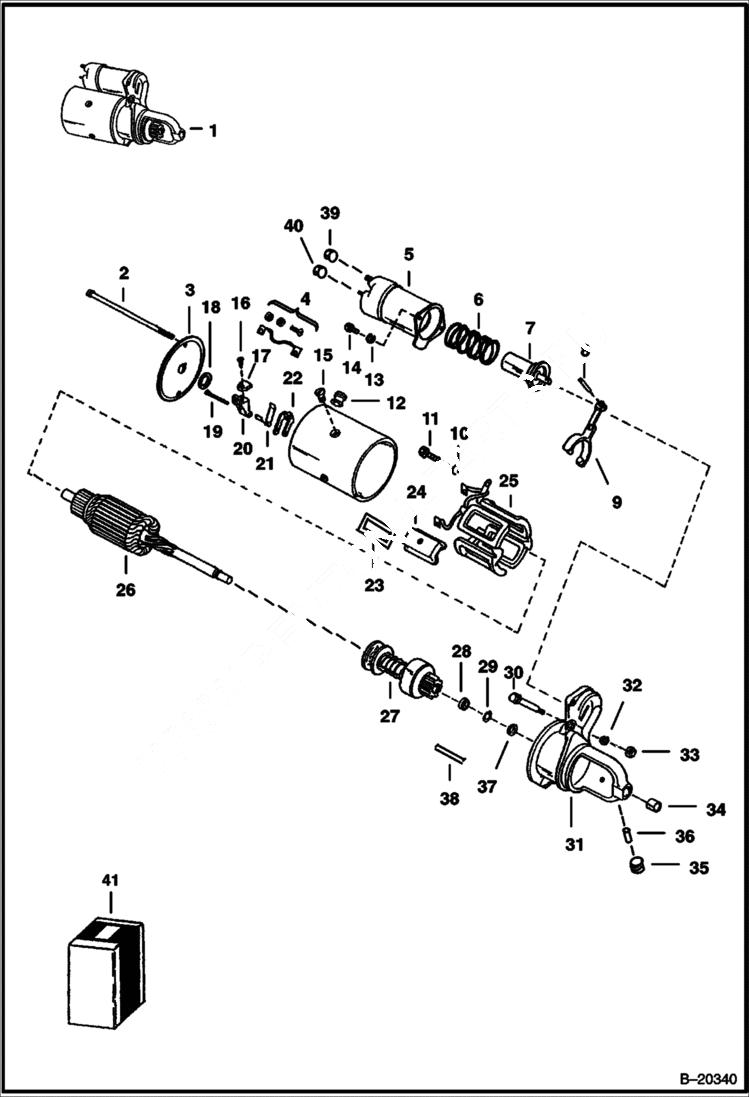

Запчасти Bobcat 900s STARTER (Delco - 1109251) ELECTRICAL SYSTEM

1

STARTER NLA - Order 6631597 - Ref. 2-40

2

BOLT NLA

3

6511625

FRAME

4

6511627

HOLDER brush

5

884581

SWITCH starter

6

SPRING NLA - plunger

7

PLUNGER NLA

8

PIN NLA

9

896126

LEVER

10

WASHER NLA

11

SCREW NLA

12

GROMMET NLA

13

WASHER NLA

14

SCREW NLA

15

SCREW NLA

16

SCREW NLA

17

BRUSHES NLA - Was 945239B - A

18

WASHER NLA

19

PIN NLA

20

6656398

HOLDER brush - insulated - Was 891252B - A

21

SPRING NLA - brush - Was 992568B - A

22

6511626

HOLDER brush Grounded

23

INSULATOR NLA

24

POLE SHOE NLA

25

6511628

FIELD COIL 4 Coils

26

6511629

ARMATURE

27

6511630

DRIVE

28

COLLAR NLA - stop

29

RETAINER NLA

30

SCREW NLA

31

6511631

HOUSING drive - W/Ref. 34

32

WASHER NLA

33

NUT NLA

34

860669

BUSHING

35

PLUG NLA

36

WICK NLA

37

COLLAR NLA - thrust

38

DOWEL PIN NLA

39

61D6

NUT 5

40

12D12

NUT

41

6551591

KIT brush holder - Ref. 4, 20-22
