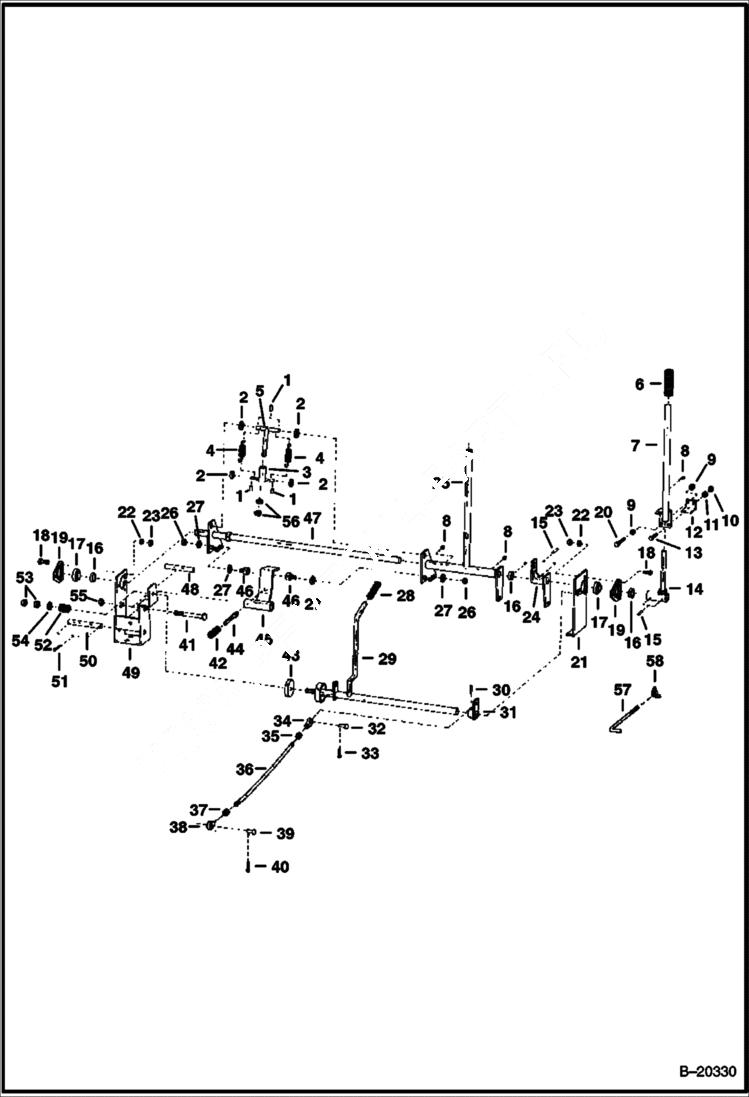

Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

1

1F316

PIN

2

25E17

WASHER 5

3

6501756

SLIDE

4

6505076

SPRING

5

6501755

ROD

6

6513963

GRIP

7

LEVER NLA - RH - Was 6501697 - A

8

10H35

FITTING, GREASE 10

9

7D5

NUT

10

61D4

NUT 5

11

4E4

WASHER

12

6503987

ANGLE

13

17C412

BOLT 5

14

6591528

LEVER

15

633157

PIN

16

6515095

COLLAR lock

17

6515103

BALL BEARING

18

17C512

BOLT 5

19

6515096

FLANGE

20

17C516

BOLT

21

6501749

BRACKET R.H.

22

4E5

WASHER

23

91D5

NUT 5 Was 81D000005B - A

24

6501786

ARM

25

6590005

LEVER

26

6511994

NUT

27

25E17

WASHER 5

28

6515109

GRIP

29

6590030

LEVER throttle

30

668312

PIN ROLL

31

6505143

ARM

32

663350

PIN

33

1F416

PIN

34

6508041

YOKE

35

8D6

NUT 5

36

6548475

ROD

36

6591013

ROD

37

8D4

NUT

38

2J4200

CLEVIS

39

1304227

PIN

40

1F208

PIN

41

17C888

BOLT

42

6505082

SPRING

43

6503388

BLOCK throttle

44

6501779

GUIDE spring

45

6501753

ARM centering

46

6515595

FOLLOWER

47

6501696

SHAFT

48

6504007

SPACER centering stop

49

6501700

BRACKET L.H.

50

6503744

PIN

51

1F524

PIN

52

6704453

SPRING Was 6578252 - C

53

7D6

NUT

54

6505623

WASHER

55

81D8

NUT

56

7D8

NUT 5

57

6591073

ROD control lever lock

58

16D6

NUT
