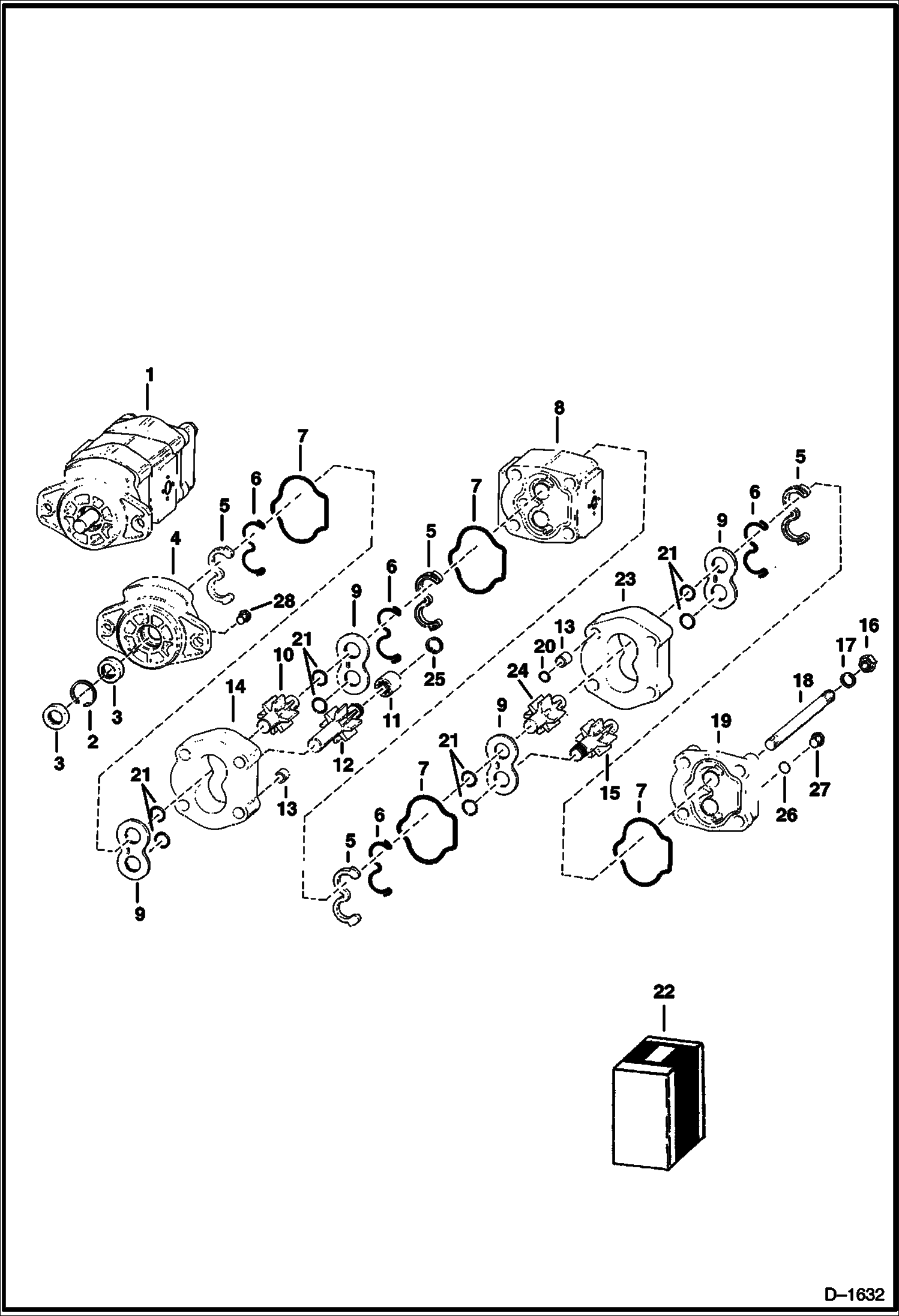

Запчасти Bobcat 900s HYDRAULIC PUMP (S/N 12639 & Above - Tyrone) HYDRAULIC SYSTEM

1

6599895

PUMP, GEAR DOUBLE See BTI204 tyrone

2

666542

SNAP RING

3

SEAL NSS

4

6630076

FLANGE W/non replaceable bushings

5

BACK-UP RING NSS

6

O-RING NSS

7

O-RING NSS

8

6630077

PLATE connector - W/non replaceable bushings

9

6641082

PLATE pressure - Was NSS - D

10

6630072

IDLER GEAR

11

6630070

COUPLER

12

6630073

DRIVE GEAR

13

6630069

DOWEL

14

6630075

GEAR PLATE

15

6630992

GEAR rear drive

16

964540

NUT

17

WASHER NLA - Was 946271 - A

18

6630066

STUD

19

6631059

COVER W/non replaceable bushings

20

O-RING NSS

21

O-RING NSS

22

6631060

SEAL KIT ref. 2, 3, 5-7, 20 & 21

23

6630990

GEAR PLATE

24

6630991

IDLER GEAR

25

659041

RING

26

79K20

O RING 10

27

PLUG NLA - W/Ref. 26 - Was 24K000011B - A

28

PLUG NLA - Was 965808B - A
