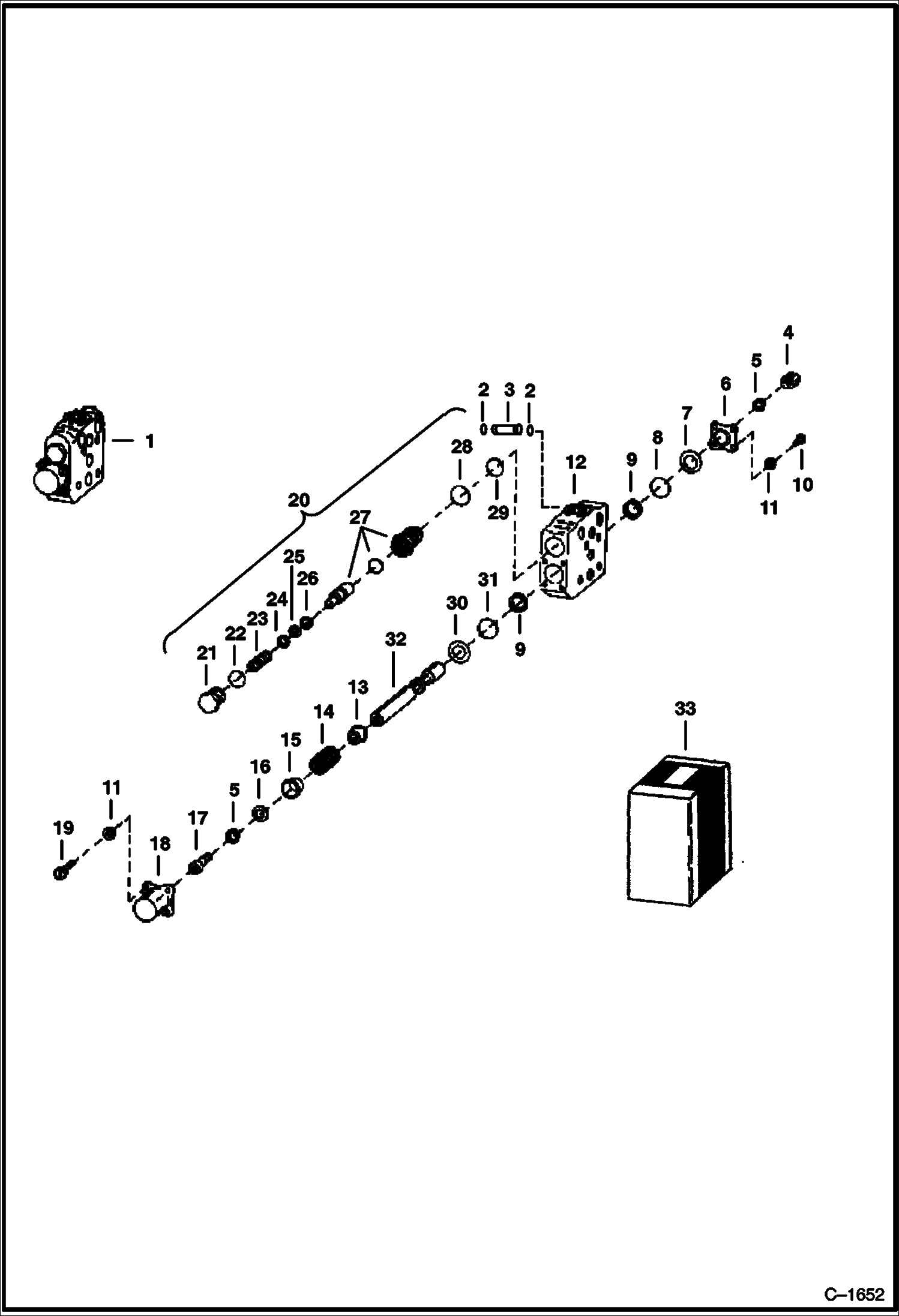

Запчасти Bobcat 900s VALVE SECTION (Mid-Inlet) HYDRAULIC SYSTEM

1

6510638

SECTION valve - Ferrule Type

1

6511603

SECTION valve

2

79K6

O RING 10 Use W/6510638

3

FERRULE NSS - Was 6510780 - A

4

898372

ADAPTOR clevis

5

6518364

WASHER

6

6510751

RETAINER seal

7

SEAL PLATE NSS - Was 6510767 - A

8

O-RING NSS - Was 6510787 - A

9

945225

SEAL quad ring

10

5C410

BOLT W/Lock Washer

11

WASHER NSS

12

HOUSING NLA

13

6518327

COLLAR

14

6519047

SPRING

15

6510771

COLLAR

16

6510772

SPACER

17

73G612

CAPSCREW

18

6510765

BONNET

19

6647692

SCREW W/Lock Washer - Was 5C000416B - A

20

6655436

VALVE relief - W/Ref. 22-29 - Was 6518315 - A

21

CAP NSS - relief valve

22

79K8

O RING 10

23

SPRING NSS

24

896265

SHIM 0.01

25

896264

SHIM 0.02

26

896263

SHIM 0.03

27

POPPET NSS

28

58K23

O RING 10

29

58K26

O RING 10

30

PLATE NSS - Was 6510789 - A

31

O-RING NSS - Was 6510788 - A

32

SPOOL NLA

33

6660105

SEAL KIT complete for one section & includes Ref. 5 & 6 on Ill. C1649
