Запчасти Bobcat 900s AXLE (S/N 12603 & Above) DRIVE TRAIN

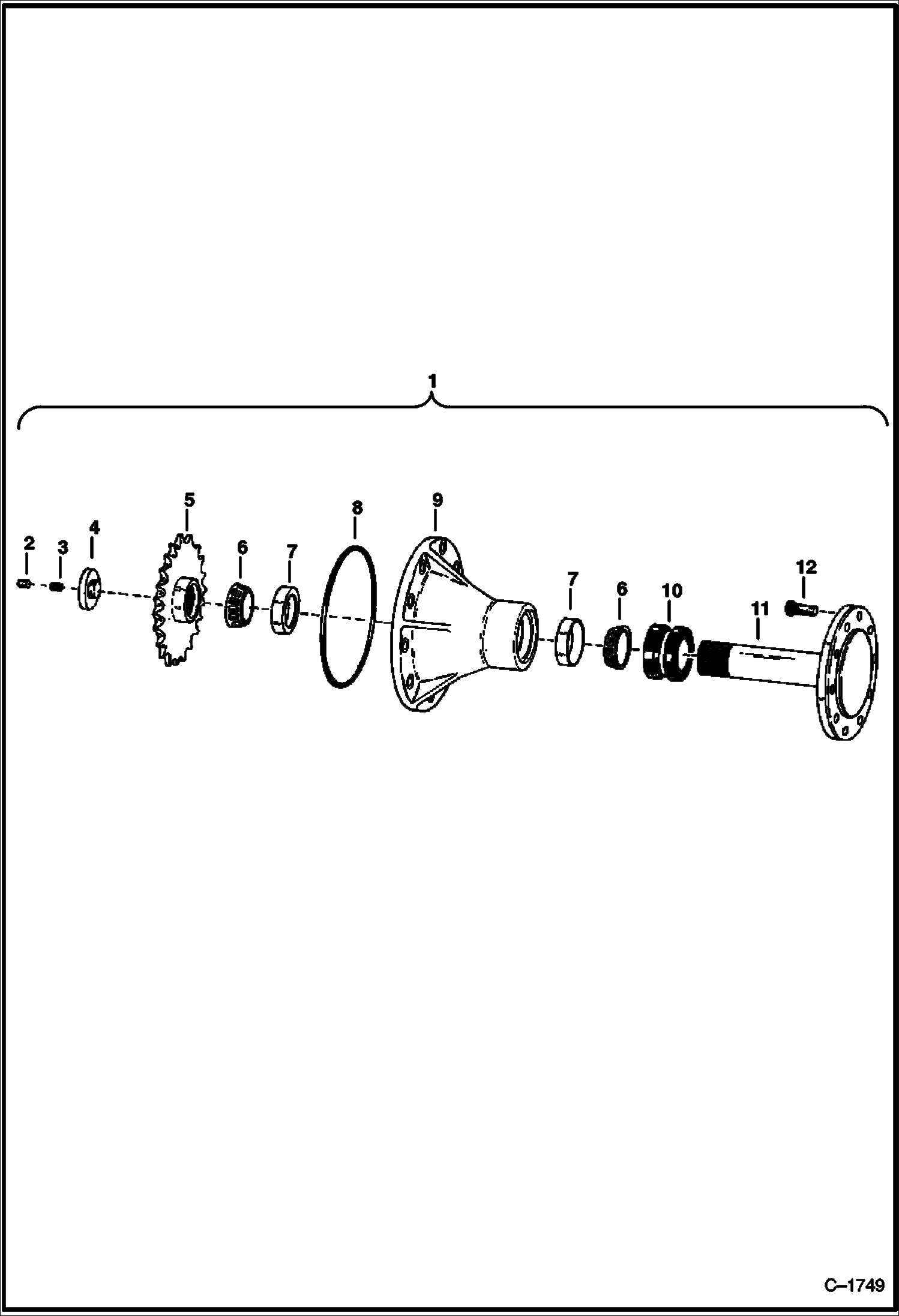

Схема запчастей Bobcat 900s - AXLE (S/N 12603 & Above) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

AXLE ASSY. NLA - Ref. 2-12 - Was 6592125 - A

2

19G606

SCREW

3

15G606

SCREW

4

6506519

RETAINER

5

6550884

SPROCKET

6

7010760

CONE, BEARING Was 1316482 - B

7

7010761

CUP, BEARING Was 1316483 - B

8

6558518

O-RING

9

HOUSING NLA - Was 6548416 - A

10

6511927

SEAL

11

6591048

AXLE W/Ref. 12

12

6592304

BOLT wheel - Was 6551909 - A

Выбрано товаров: 12
