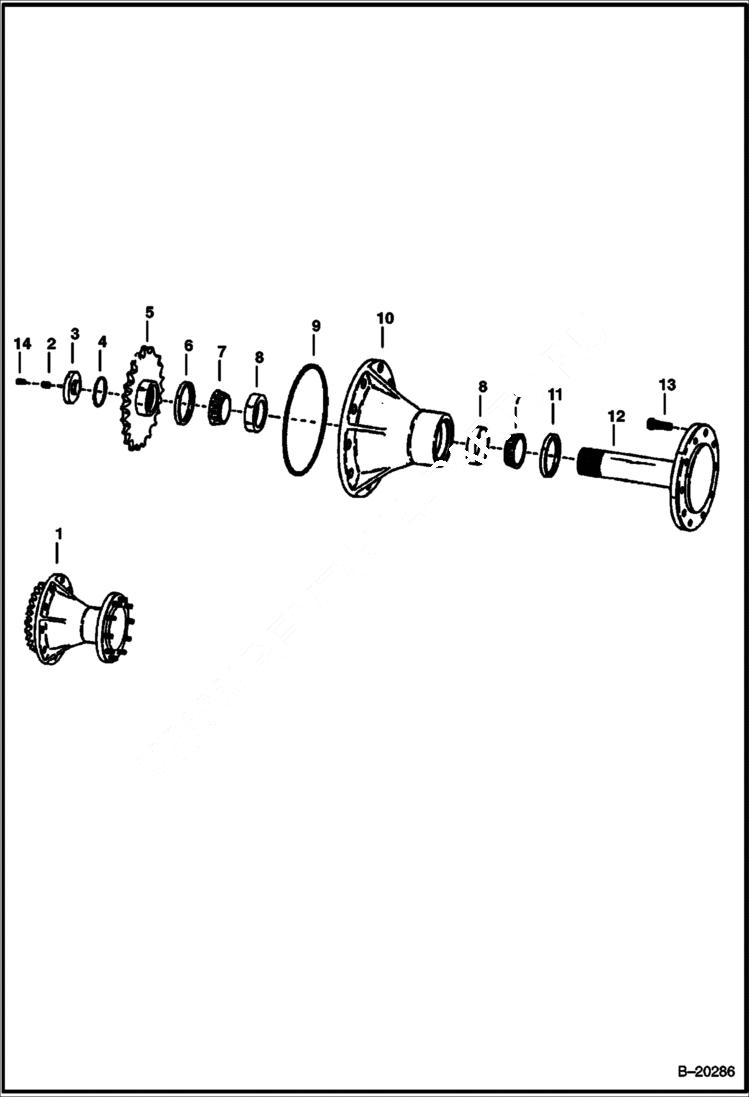

Запчасти Bobcat 900s AXLE & HUB ASSEMBLY (S/N 12602 & Below) DRIVE TRAIN

1

AXLE ASSY. NLA - ref. 2-14 - Order components - Was 6590115 - A

2

15G606

SCREW

3

6506519

RETAINER axle

4

25K30316

O RING 10

5

6550884

SPROCKET

6

6515893

SEAL grease

7

7010760

CONE, BEARING Was 1316482 - B

8

7010761

CUP, BEARING Was 1316483 - B

9

6558518

O-RING

10

6550748

HOUSING axle

11

6515892

SEAL grease

12

6501664

AXLE W/Ref. 12

13

6551909

BOLT wheel

14

19G606

SCREW
