Запчасти Bobcat 900s REDUCTION GEARCASE (Without Brakes) DRIVE TRAIN

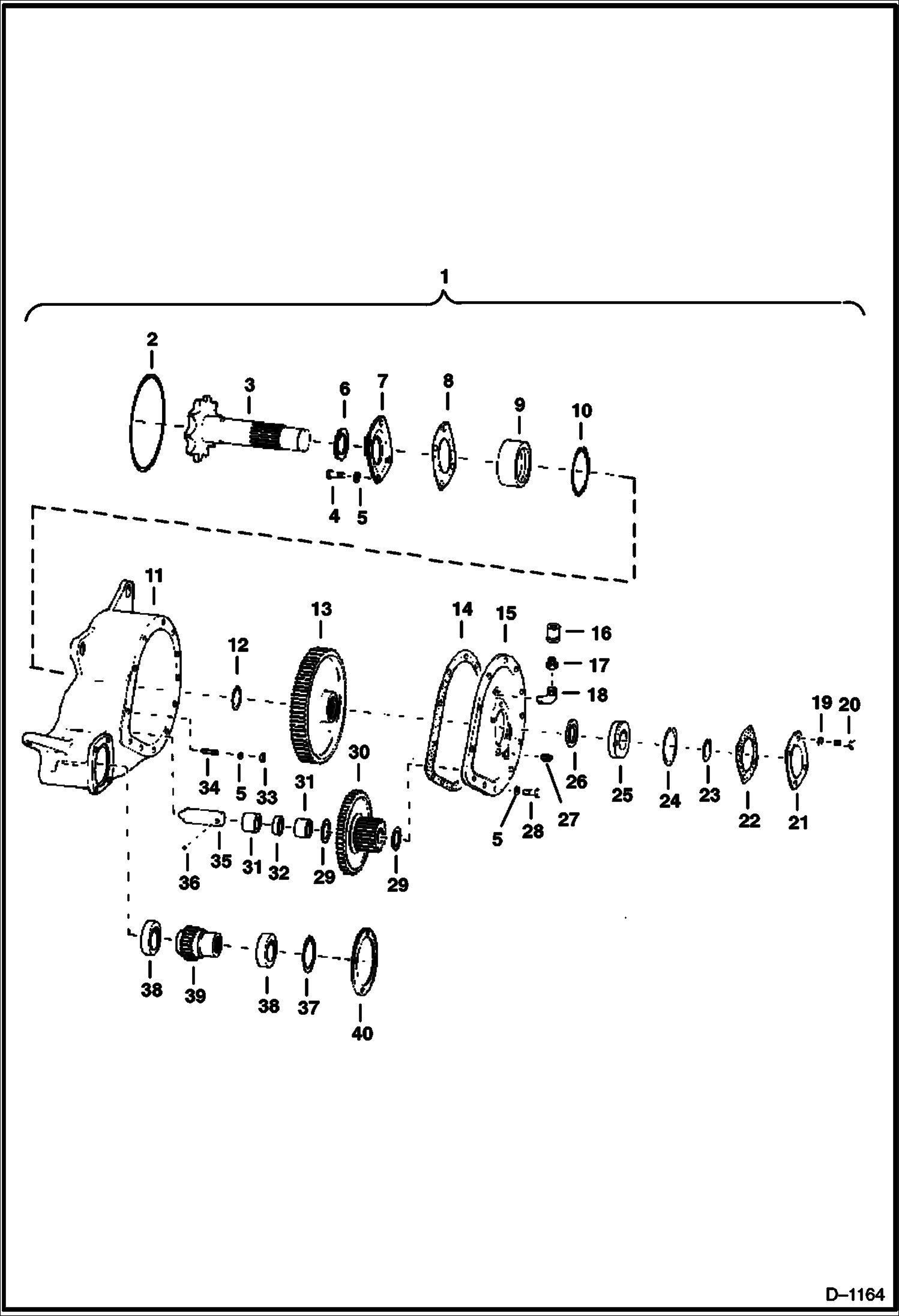

Схема запчастей Bobcat 900s - REDUCTION GEARCASE (Without Brakes) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6537206

GEARCASE Was 283629B - A

2

25K80816

O RING 10

3

237980

SHAFT W/Sprocket

4

17C618

BOLT

5

4E6

WASHER

6

7031616

SEAL oil - Was 232712 - A

7

232710

BEARINGCP

8

232711

GASKET

9

6599671

BEARING

10

214953

RING

11

HOUSING NLA - reduction - Was 232695 - A

12

223922

RING

13

232702

GEAR

14

232705

GASKET

15

232704

CARRIER

16

6515173

CAP

17

19F7

BUSHING

18

26F5

ELBOW

19

BOLT NLA - Was 233128B - A

20

208262

SCREW

21

228286

BRG CAP bearing

22

228287

GASKET

23

224052

RING

24

223855

RING

25

658038

BEARING W/Ref. 24

26

232706

SPACER gear

27

40K12

PLUG

28

17C620

BOLT

29

232708

WASHER

30

232698

GEAR

31

232697

BEARING

32

232707

SPACER bearing

33

6D6

NUT

34

104015

STUD

35

232696

SHAFT

36

10J12

BALL locking

37

223901

RING

38

225825

BEARING

39

SHAFT input - Was 232996 - A

40

6591453

GASKET

Выбрано товаров: 40
