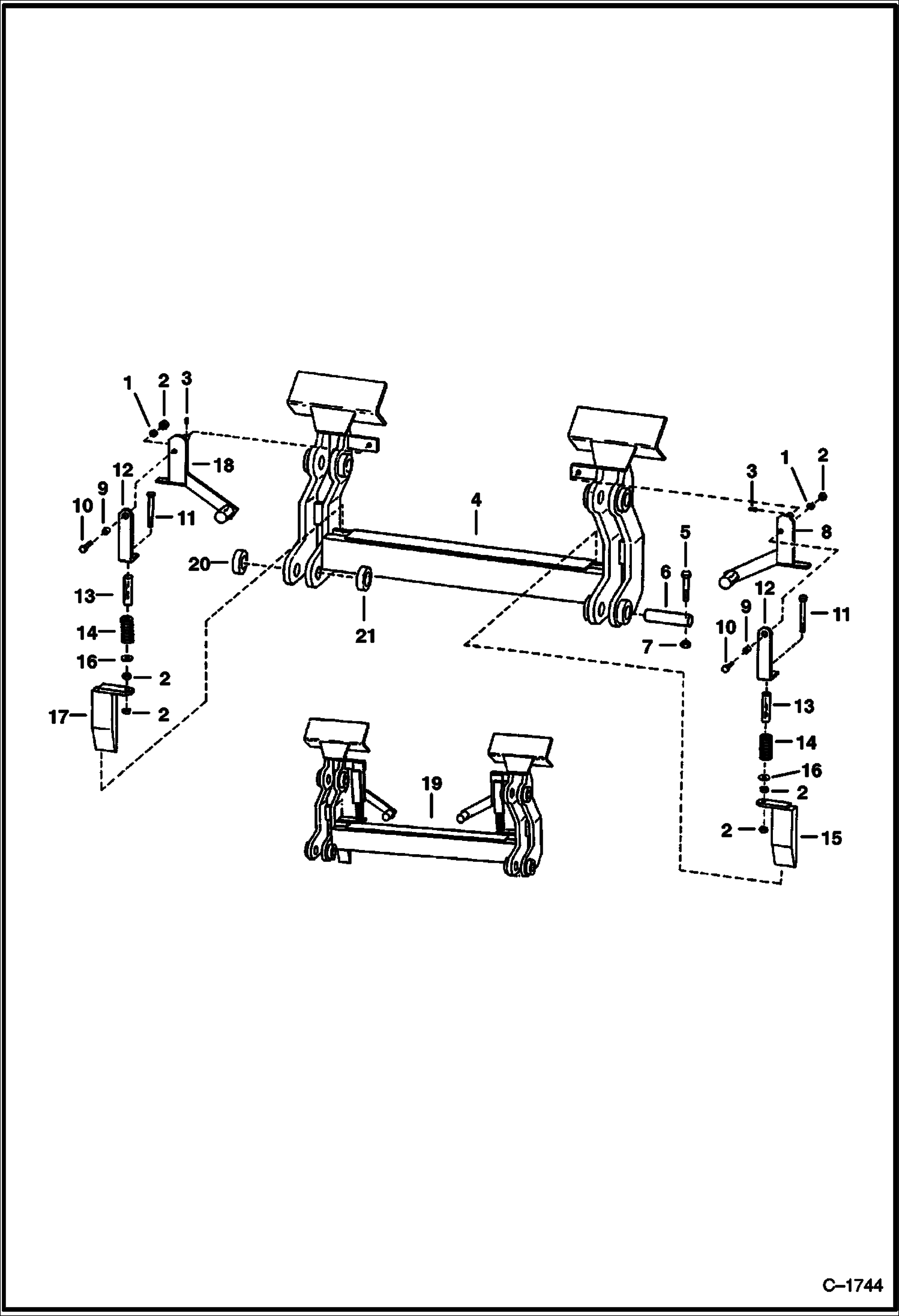

Запчасти Bobcat 900s BOB-TACH MAIN FRAME

1

4E8

WASHER

2

61D8

NUT 5

3

633157

PIN

4

6546711

FRAME

5

17C648

BOLT 5

6

6546749

PIN

7

81D6

NUT

8

6501706

HANDLE R.H.

9

6503955

TUBE

10

17C828

BOLT

11

17C880

BOLT

12

6503954

ARM

13

6548500

TUBE GUIDE

14

6503956

SPRING

15

6547130

WEDGE locking - R.H.

16

25E22

WASHER

17

6547129

WEDGE locking - L.H.

18

6501689

HANDLE L.H.

19

6590118

BOB-TACH See Illustration DECALS/ B20336 Also Order 6561383 decal - Was SALES - A

20

6547650

BUSHING

21

6547649

BUSHING
