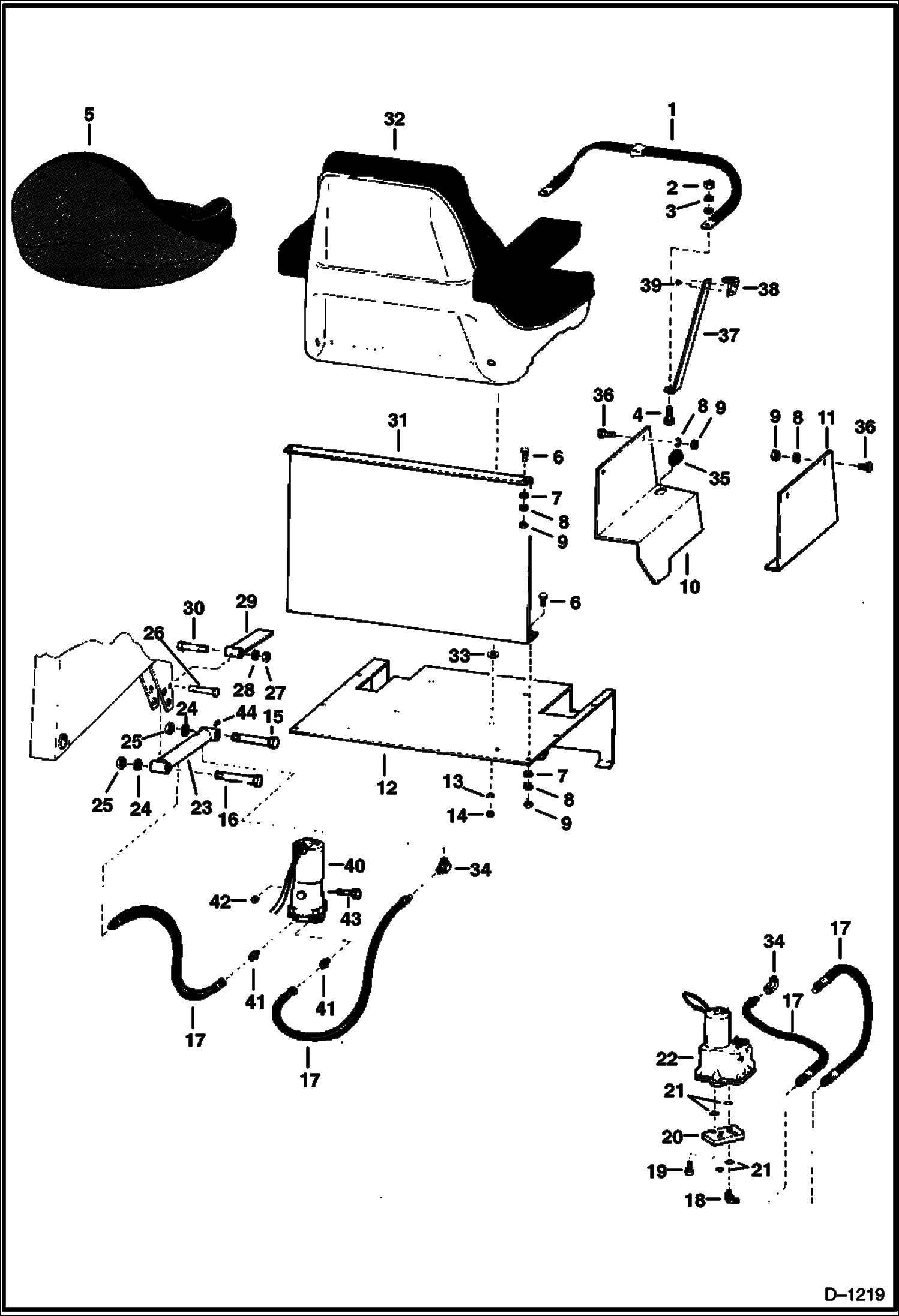

Запчасти Bobcat 900s CAB TILT & SEAT MOUNTING MAIN FRAME

1

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

2

61D8

NUT 5

3

4E8

WASHER

4

17C816

BOLT

5

SEAT NLA - Order Ref. 32

5

6519476

CUSHION back rest - Black

5

CUSHION seat - Black NLA - seat - black - Was 6519475 - A

6

17C620

BOLT

7

25E17

WASHER 5

8

4E6

WASHER

9

61D6

NUT 5

10

6544729

PANEL R.H.

11

6592424

PANEL L.H.

12

6544730

SEAT PAN

13

4E8

WASHER

14

NUT NLA - Was 5D000005B - A

15

17C1472

BOLT

16

17C1452

BOLT

17

2500673

HOSE ASSY 24'' (609,6 mm) - Both ends Female

17

1549545

HOSE 22'' (558,8 mm) - 1 Male & 1 Female End

17

6591237

HOSE 22'' (558,8 mm) - Both ends Female

18

ELBOW NLA - Was 731745 - A

19

18C420

BOLT

20

6503795

HEAD

21

25K20012

O RING 10

22

PUMP See Illustration CAB TILT MOTOR & PUMP/ B1103 See Illustration CAB TILT MOTOR & PUMP/ B18214 NLA - WAS 6501767 - A

23

CYLINDER See Illustration CAB TILT CYLINDER/ B1770 See Illustration CAB TILT CYLINDER/ B1770A See Illustration CAB TILT CYLINDER/ B20282 See Illustration CAB TILT CYLINDER/ B20281 NLA

24

4E14

LOCKWSHR

25

61D14

NUT

26

1304861

PIN

27

61D12

NUT

28

23E12

WASHER Was 4E12 - A

29

6548630

SAFETY LATCH

30

17C1244

BOLT

31

PLATE NLA - seat pan

32

SEAT See Illustration SUSPENSION SEAT/ B20284 See Illustration SUSPENSION SEAT/ D1897 See Illustration SEAT/ B7184

33

616783

WASHER

34

29F1

ELBOW Use W/1549545B Hose

35

552438

GROMMET

36

17C616

BOLT 5

37

6592643

GUIDE ASSY. R.H. - W/Ref. 38 & 39

37

6592645

GUIDE ASSY. L.H. - W/Ref. 38 & 39

38

GUIDE NLA - seat belt - Order 6703703 - Was 6565355 - A

39

6630207

RIVET 5 Was 6512797 - A

40

PUMP See Illustration CAB TILT MOTOR & PUMP/ B1103 See Illustration CAB TILT MOTOR & PUMP/ C3060 See Illustration CAB TILT MOTOR & PUMP/ B18214

41

6640603

ADAPTER

41

15K3

CONNECTOR Use W/ Oildyne pump

42

6518382

NUT

43

17C520

BOLT 5

44

10H25

FITTING, GREASE 5
