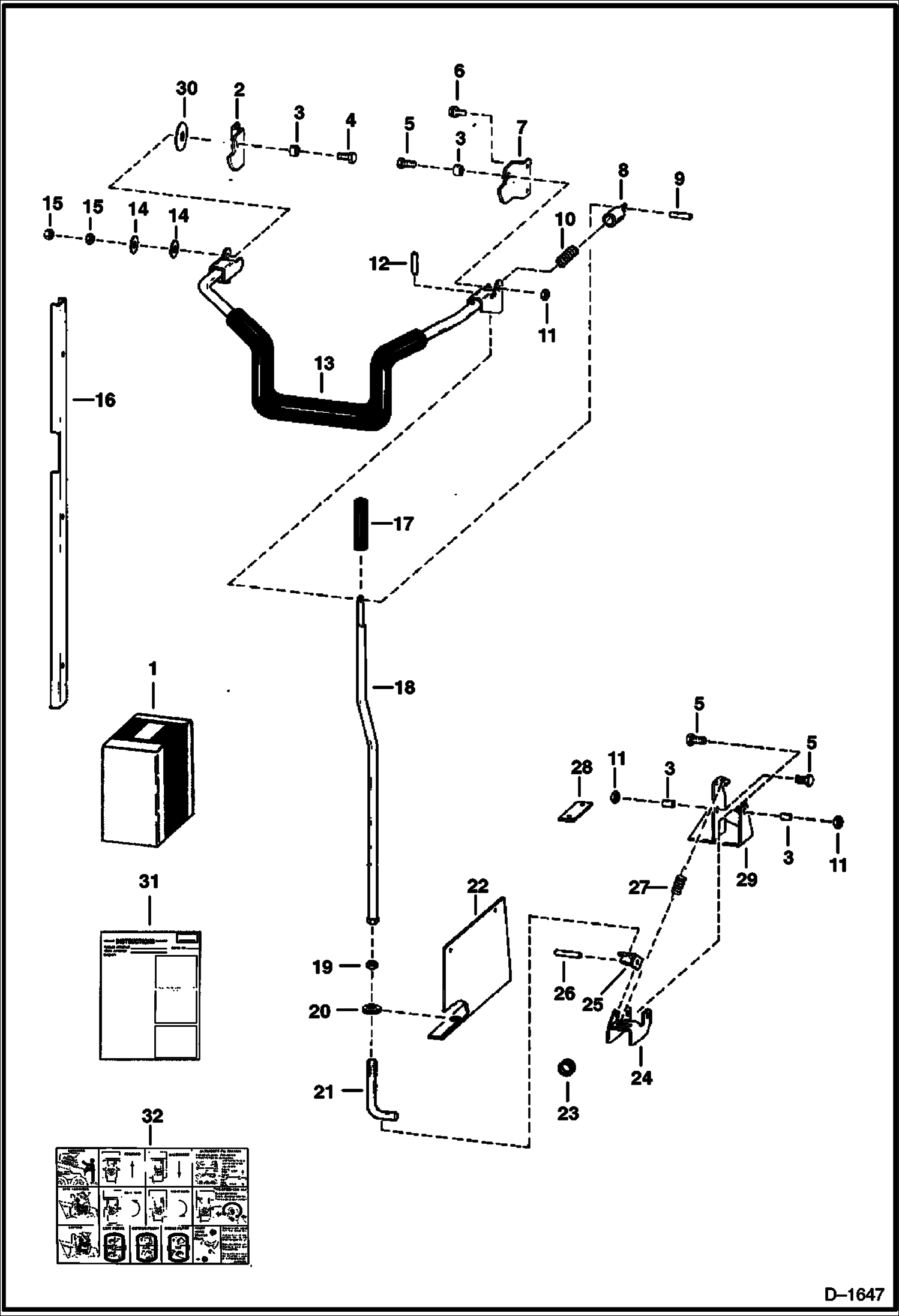

Запчасти Bobcat 900s SEAT BAR KIT ACCESSORIES & OPTIONS

1

6592422

KIT seat bar - Ref. 2-32

2

6592432

BRACKET mounting - L.H.

3

6544654

BUSHING

4

17C620

BOLT

5

17C616

BOLT 5

6

84G3712

BOLT 5 self-tapping

7

6529773

BRACKET mounting - R.H. - Was 6592433 - A

8

6563200

PIN pin latch

9

668312

PIN ROLL

10

6702430

SPRING, COMPRESSION Was 6563149 - C

11

85D6

NUT, 5

12

14J3716

PIN

13

6592438

SEAT BAR

14

6630038

WASHER spring

15

7D6

NUT

16

6592443

COVER channel

17

GRIP NLA - Was 6563477 - A

18

6592434

LINKAGE tube

19

7D8

NUT 5

20

6630043

GROMMET

21

6592436

ROD lockout

22

6592424

PANEL angle

23

6592423

COLLAR locking

24

6592429

BRACKET lockout

25

6563148

BLOCK, SPRING spring

26

14J2516

PIN

27

6599219

SPRING

28

6592437

SPACER bearing

29

6592425

BRACKET pivot

30

6562127

WASHER friction

31

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566563 - A

32

6530720

DECAL Was 6594128 - A
