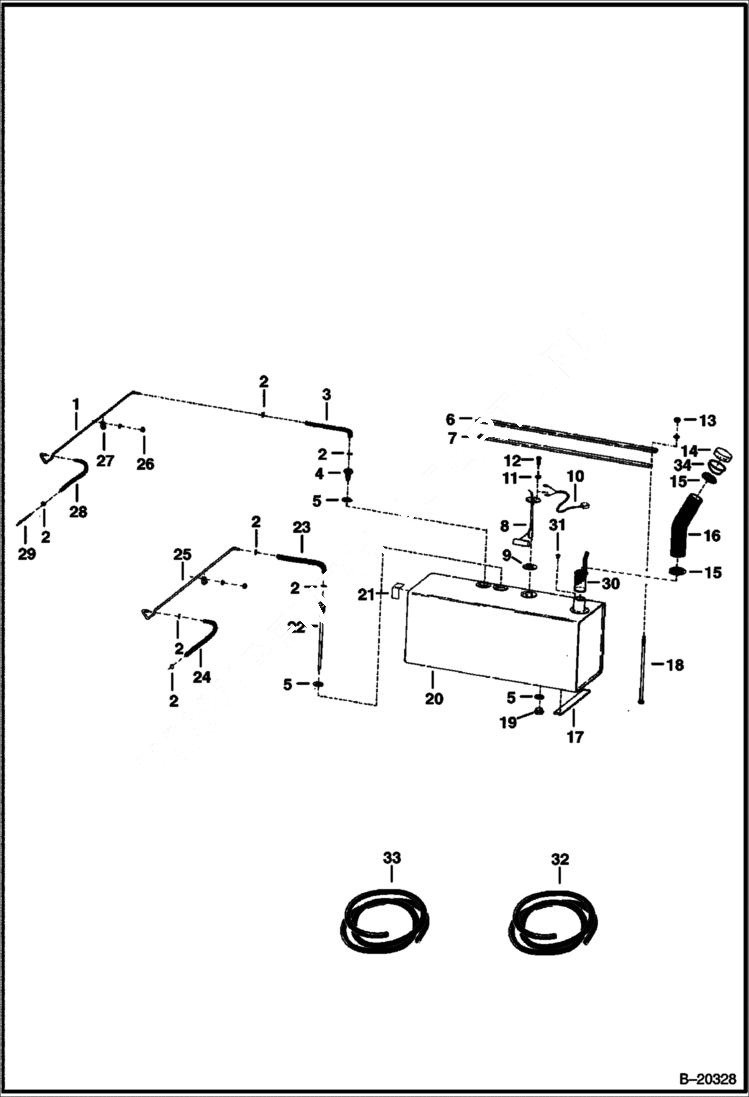

Запчасти Bobcat 900s FUEL TANK MAIN FRAME

1

6504436

TUBE

1

6590127

TUBE

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

HOSE NLA - 12-1/4'' (311,2 mm) long - Order Ref. 33 - Was 6590821 - A

4

6518596

ADAPTER

5

6504426

GASKET

6

6503894

BAR

7

6542877

STRAP web - Bulk-sold per foot-Was 6503895 - A

8

6598921

SENDER fuel level

9

6519201

GASKET

10

6594344

HARNESS fuel - Was NLA - D

11

17E10

WASHER

12

86G1008

SCREW

13

81D6

NUT

14

6515566

CAP

15

42H40

HOSECLAM5

16

6504103

HOSE

17

6504882

STRAP web

18

BOLT NLA - Was 6503896 - A

19

16F12

PLUG

20

6501671

TANK

21

PAD NLA

22

6543961

TUBE

23

HOSE NLA - 2-1/4'' (57,2 mm) long - Order Ref. 32 - Was 6590822 - A

24

HOSE NLA - 29'' (736,6 mm) long - Order Ref. 32 - Was 6548763 - A

25

6543962

TUBE

25

6590126

TUBE

26

81D4

NUT

26

81D6

NUT

27

CLAMP NLA - Was 31H000006B - A

27

31H6

CLAMP

28

HOSE NLA - 48'' (1219,2 mm) long - Order Ref. 33 - Was 6590162 - A

29

6543392

TUBE

30

6529358

STRAINER Was 5200037B - A

31

18G1008

SCREW

32

6577822

HOSE Bulk - Sold Per Foot - Was 6562515 - A

33

6577821

HOSE bulk - sold per foot - Was 672221 - A

34

6515570

NECK
