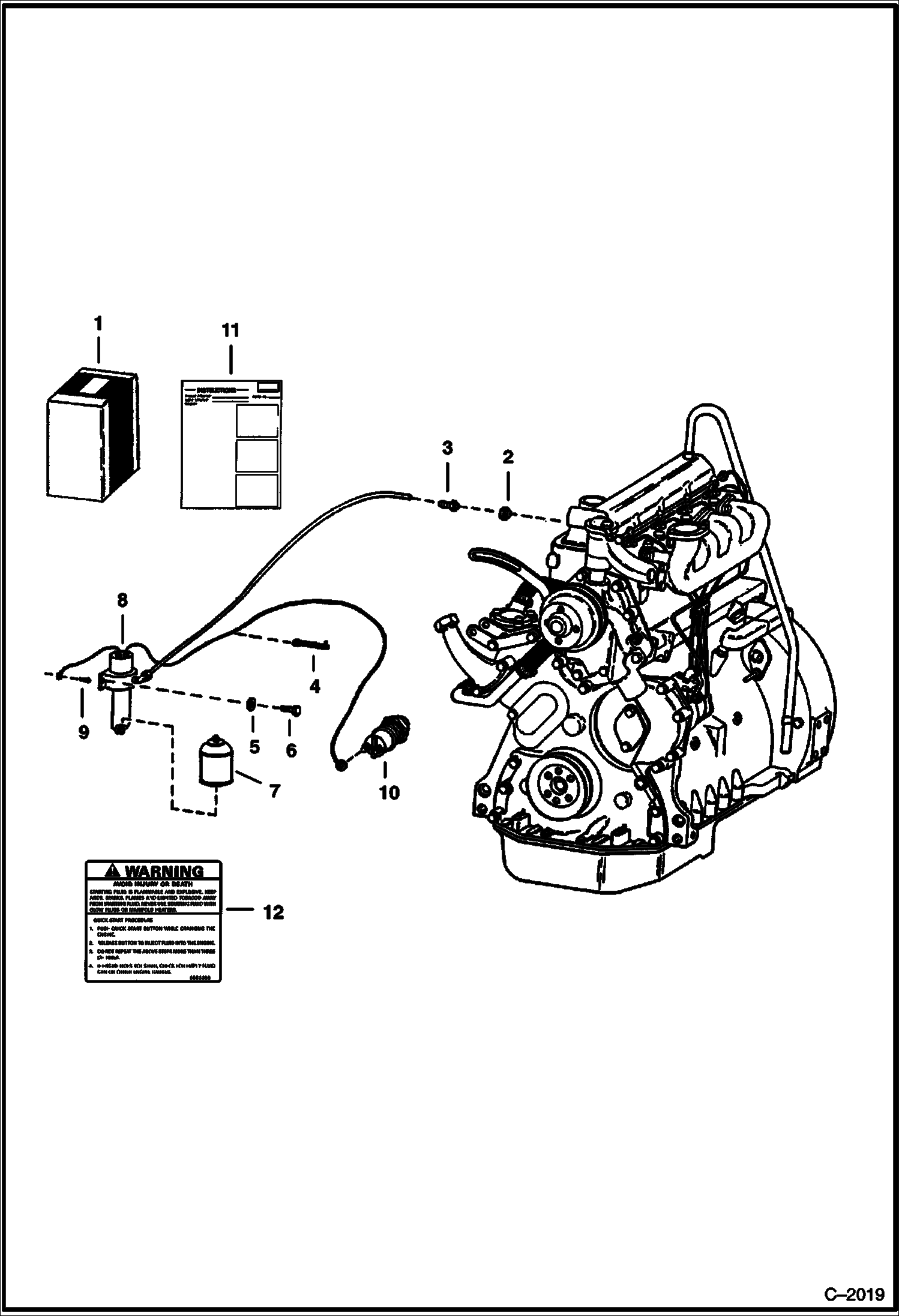

Запчасти Bobcat 900s DIESEL QUICK START ACCESSORIES & OPTIONS

1

KIT NLA - quick start - Order Ref. 2-6 & 8-12

2

19F2

BUSHING

3

6511139

ATOMIZER

4

6610510

TIE

5

SPACER NSS

6

BOLT NSS - self tapping

7

6664463

FLUID starting - Not in Kit - Was 945152B - A

8

SOLENOID NLA - Was 6505818 - A

9

59G1006

SCREW self-tapping

10

6632973

SWITCH Was 600259B - A

11

INSTRUCTIONS NLA - Print Instructions from Bass - Was 6549626 - A

12

6593388

DECAL
