Запчасти Bobcat 900s CAB ENCLOSURE ACCESSORIES & OPTIONS

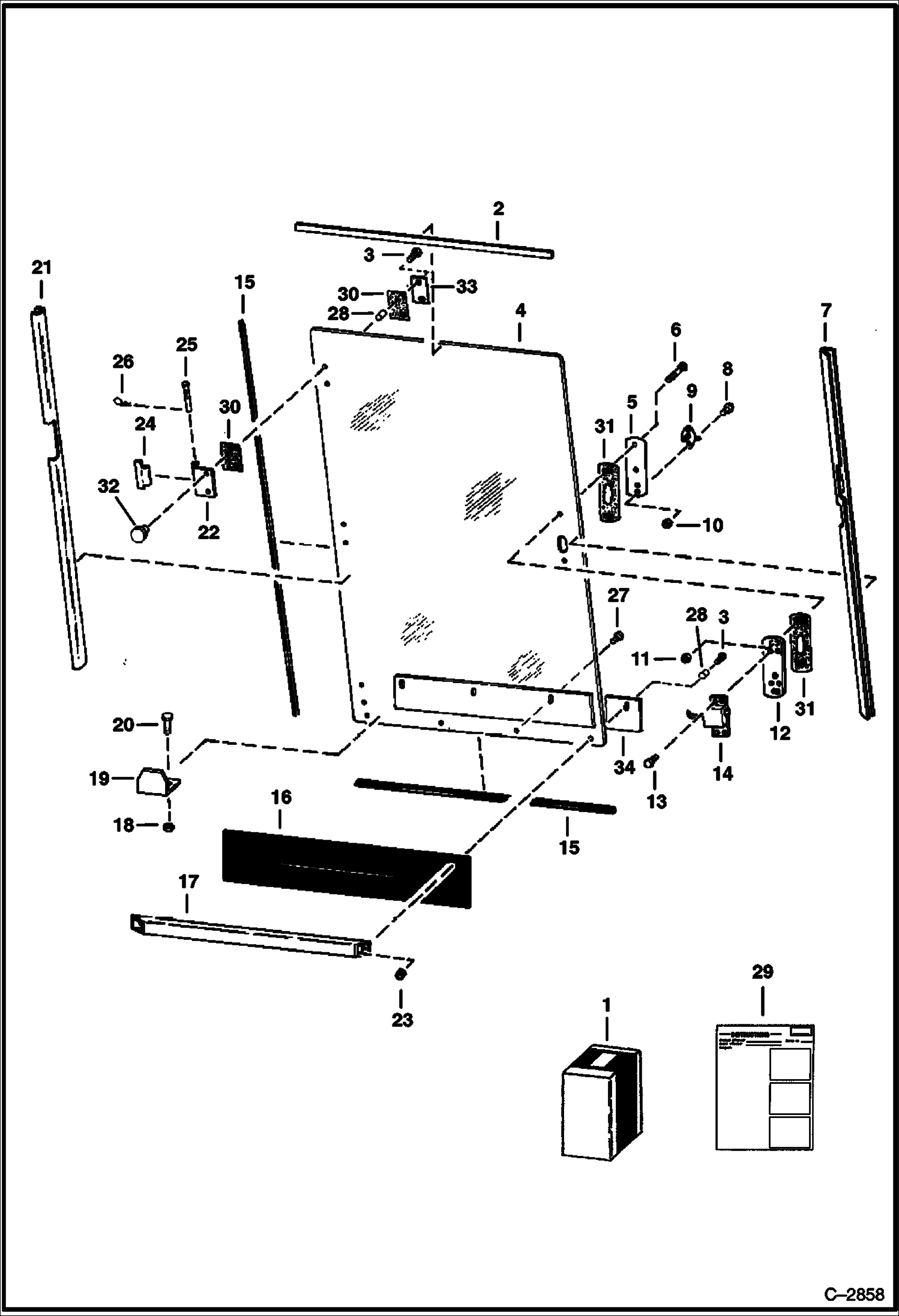

Схема запчастей Bobcat 900s - CAB ENCLOSURE ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - door - Order (1) 6592979 Stop, 6620646 Seal - Sold Per Foot Need 10 ft. - (1) 6531733 Door Assy., (3) 6592549 Hinge, (1) 6592534 Stop, (4) 9G000824B Bolt, (2) 6592734 Stop, (4) 57D000008 Nut

2

6592979

DOOR STOP

3

35C524

BOLT

4

DOOR See BTI238 NLA - Order 6531733 - Was 6593571 - A

5

6592538

PLATE

6

37C624

BOLT Was 7C624 - A

7

6592535

STOP

8

17C410

BOLT 10

9

6599649

HANDLE

10

85D4

NUT 5

11

83D6

NUT 5

12

6592539

PLATE

13

73G408

SCREW

14

6513680

LATCH ASSY.

15

SEAL NLA - bulk - Sold Per foot - Was 6620646 - A

16

6592951

SEAL

17

6592540

BRACE

18

57D8

NUT 10

19

6592734

STOP

20

9G824

SCREW

21

6592534

STOP

22

6592536

HINGE

23

83D5

NUT 5

24

HINGE NLA - Was 6592549 - A

25

6592594

HINGE PIN

26

1F208

PIN

27

84G3124

SCREW

28

6593572

BUSHING

29

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570140 - A

30

6593569

GASKET

31

6593570

GASKET

32

6599614

KNOB

33

6593561

PLATE

34

6592551

BRACKET See BTI238

Выбрано товаров: 34
