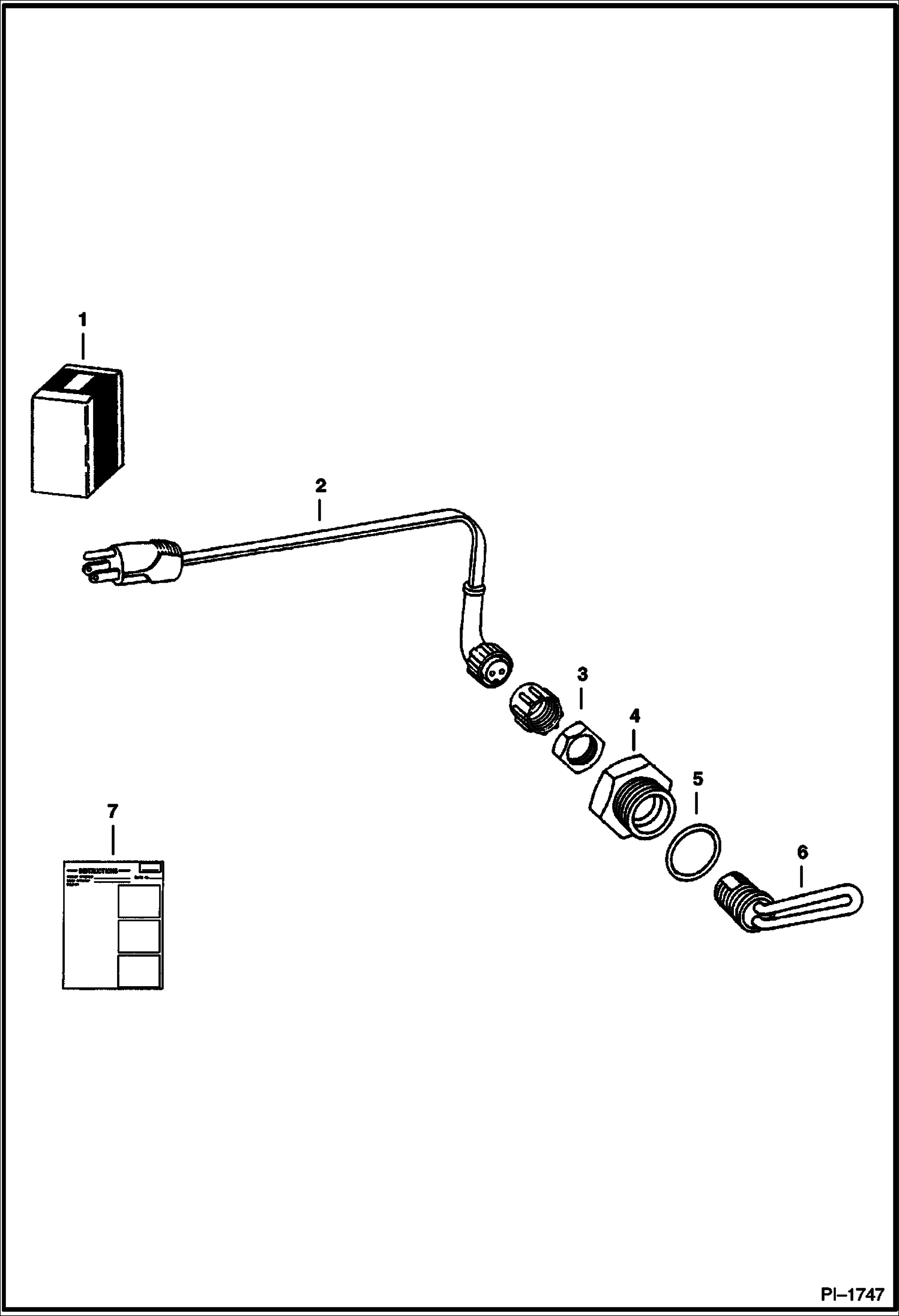

Запчасти Bobcat 900s BLOCK HEATER ACCESSORIES & OPTIONS

1

HEATER NLA - Ref. 2-7 - Order Ref. 2, 4-6 & 7 - Was 6720740 - A

2

6512034

CORD Was NSS - D

3

NUT NSS

4

6512037

ADAPTER Was NSS - D

5

78K20

O RING Was 963135 - A

6

6512028

HEATER W/Cap - Was NSS - D

6

GASKET NSS

7

6720038

INSTRUCTIONS
