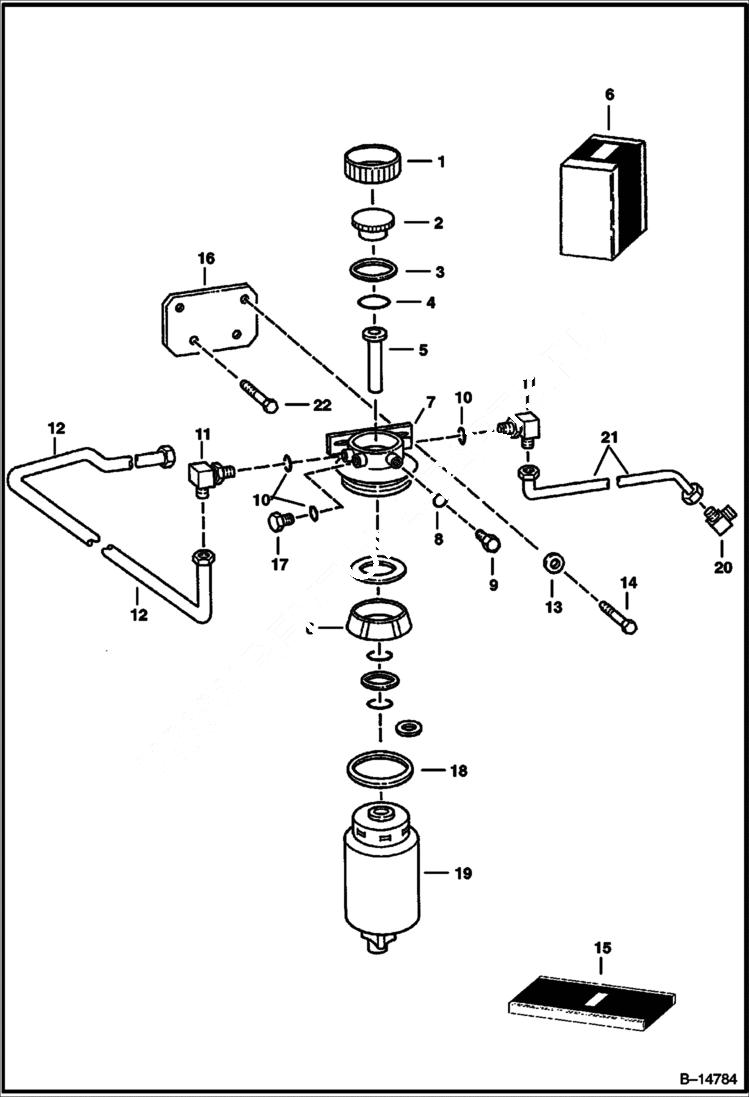

Запчасти Bobcat 900s FUEL FILTER AND LINES (E S/N 421307 & Above) POWER UNIT

1

RING NSS

2

INSERT NSS

3

GASKET NSS

4

O-RING NSS

5

VALVE NSS

6

6668776

KIT Ref. 1, 2, 5 & 9

7

6668777

BASE

8

GASKET NSS

9

PLUG NSS

10

6668778

O-RING

11

6668779

TEE

12

6668728

FUEL LINE

13

6668780

WASHER

14

17C618

BOLT

15

6668781

SEAL KIT Ref. 3, 4, 8 & 18

16

6668782

BRACKET

17

6668783

PLUG drain

18

6668727

GAKSET

19

6668784

ELEMENT

20

6668785

ELBOW

21

6668786

FUEL LINE

22

17C614

BOLT
