Запчасти Bobcat 900s LUBRICATION SYSTEM POWER UNIT

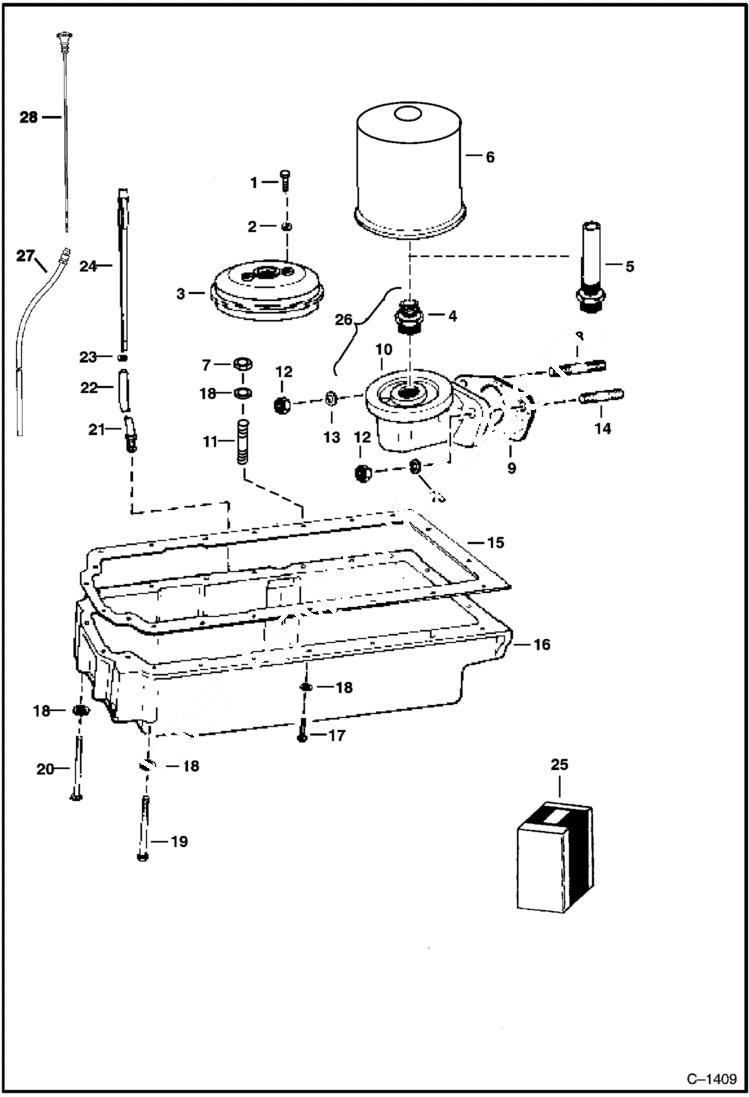

Схема запчастей Bobcat 900s - LUBRICATION SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

18C410

BOLT

2

4E4

WASHER

3

3725551

STRAINER oil

4

6515735

ADAPTER

4

6630831

ADAPTER

5

STANDPIPE NLA - filter - Order Ref. 26

6

6511766

OIL FILTER W/Sealing Ring

7

10D5

NUT

8

6515737

STUD

9

6668022

GASKET Was 3679404B - A

10

6515736

ADAPTER

11

3725510

STUD

12

3725329

NUT

13

4E7

WASHER

14

6634207

STUD Was 6515738 - A

15

3727656

GSKT

16

OIL PAN NLA - Was 3551869B - A

16

6632538

OIL PAN Was 6631672 - A

17

18C514

BOLT

18

4E5

WASHER

19

18C572

BOLT

20

18C552

BOLT

21

3490066

NUT

22

TUBE NLA - dipstick - Order Ref. 27 & 28

22

TUBE NLA - Dipstick - 10-7/8'' (276.2 mm) Long - Order Ref. 27 & 28 - Was 6510524 - A

22

6513126

TUBE 7-7/16'' (189.0mm) long

23

3725516

WSHR dipstick seal

24

DIPSTICK NLA - 24-1/2'' (622.3 mm) long - Order Ref. 27 & 28

24

DIPSTICK NLA - 14-1/2'' (368.3mm) Long - Was 6510511 & 3551840 - A

24

DIPSTICK NLA - 13-1/4'' (336.6 mm) Long - Order Ref. 27 & 28 - Was 6631673 - A

25

KIT NLA - Dipstick - Order Ref. 22 & 24 - Was 6548633 - A

26

HEAD ASSY. NLA - Ref. 4 & 10 - Was 6515734 - A

27

6667506

TUBE 10.50'' Long

28

6667512

DIPSTICK 13-1/4'' (336.6 mm) Long

Выбрано товаров: 34
