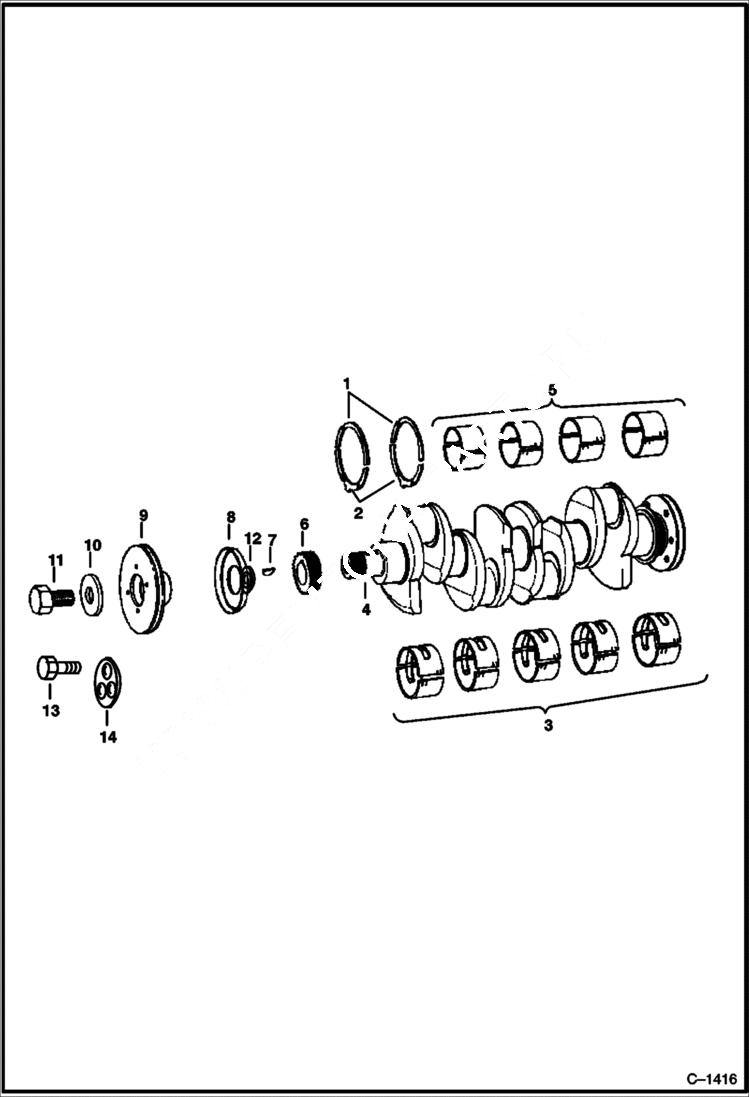

Запчасти Bobcat 900s CRANKSHAFT & ASSOCIATED PARTS POWER UNIT

1

6662035

WASHER thrust - Std. - Top - Was 3725399B - A

1

3725400

WASHER thrust - .007 Undersize - Top - One Half

2

6668230

WASHER thrust -Std. - Bottom - 2 Halves - Was 3725401 - A

2

3725402

WASHER thrust - .007 Std. - Bottom

3

3725394

KIT, BEARING main bearing - Std.

3

6515695

KIT main bearing - .010 Undersize

3

6515696

KIT main bearing - .020 Undersize

3

6515697

KIT main bearing - .030 Undersize

4

3729898

SHAFT W/Ref. 1, 2, 3 & 5

4

6651232

KIT Was 997708B - A

4

6634208

CRANKSHAFT

5

3679199

BRGS Rod bearing - Std. - Complete Engine set

5

BRGS NLA - rod bearing - .010 undersize - complete engine set - Was 3739216 - A

5

6515698

KIT rod bearing - .020 undersize

5

6515699

KIT rod bearing - .75mm (.030) Undersize

6

3725388

GEAR crankshaft

7

6J807

KEY, WOODRUFF

8

3734139

SLINGER oil

9

6515700

PULLEY

9

6630829

PULLEY

10

3725393

WSHR

11

3725392

SCREW

12

3339685

SLINGER

13

6634210

BOLT

14

6634209

SPACER
