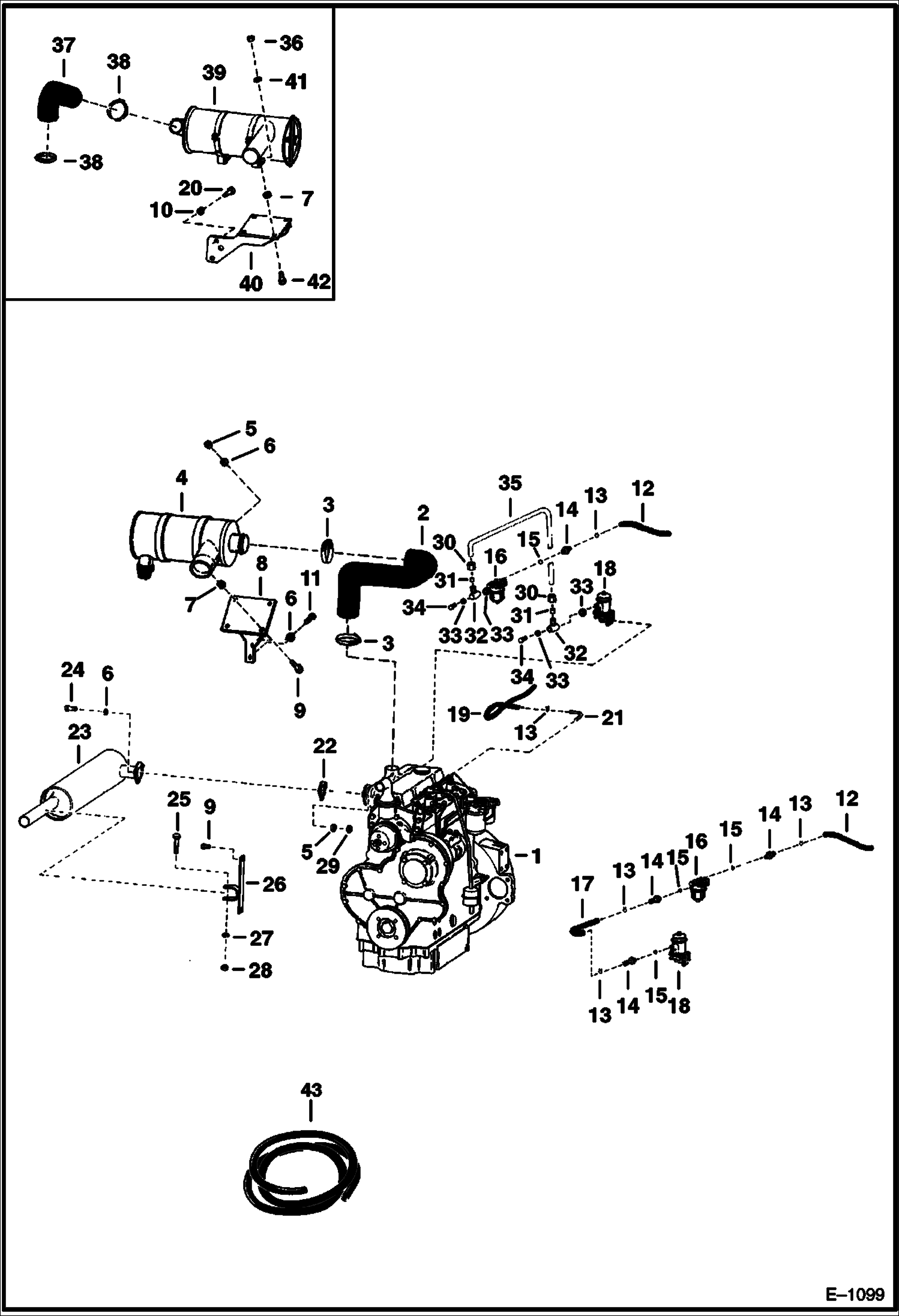

Запчасти Bobcat 900s ENGINE FUEL & EXHAUST PARTS POWER UNIT

1

ENGINE See Illustration DRIVE TRAIN/ B20285

2

6591963

HOSE

3

42H40

HOSECLAM5 Was 942792B - A

4

AIR CLEANER See Illustration AIR CLEANER/ C2685 DUAL ELEMENT

5

85D5

NUT 5

6

25E17

WASHER 5

7

1021036

GROMMET

8

6591847

BRACKET

9

17C514

BOLT

10

4E5

WASHER

11

18C620

BOLT

12

HOSE NLA - 29'' (736,6 mm) long - Order Ref. 43 - Was 6548763 - A

13

42HS04

CLAMP, HOSE Was 6515575 - A

14

1324240

CONNECTOR

15

79K5

O RING 10

16

6513104

TRAP Water Trap

16

6598739

GASKET upper

16

6598740

GASKET lower

17

6548761

HOSE

18

FUEL PUMP See Illustration FUEL PUMP/ B20316

19

6505207

HOSE

20

18C512

BOLT

21

6543392

TUBE ''L'' shaped

21

6592723

TUBE ''C'' shaped

22

6505237

GASKET

23

6547049

MUFFLER Spark arrestor

24

17C620

BOLT

25

17C440

BOLT

26

6547113

BRACKET

26

BRACKET NLA - Was 6590068 - A

27

4E4

WASHER

28

61D4

NUT 5

29

7D6

NUT

30

3729963

NUT

31

3729965

FERRULE

32

3727283

CONNECTER banjo

33

3727285

WASHER

34

3727284

BOLT

35

6513203

TUBE

36

61D6

NUT 5

37

6547177

HOSE

38

42H64

CLAMP

39

AIR CLEANER See Illustration AIR CLEANER/ C3510 See Illustration AIR CLEANER/ B20320 SINGLE ELEMENT - WAS 6547469 - A

40

6547321

BRACKET

41

4E6

WASHER

42

17C612

BOLT 5

43

6577822

HOSE bulk - Sold Per Foot - Was 6562575 - A
