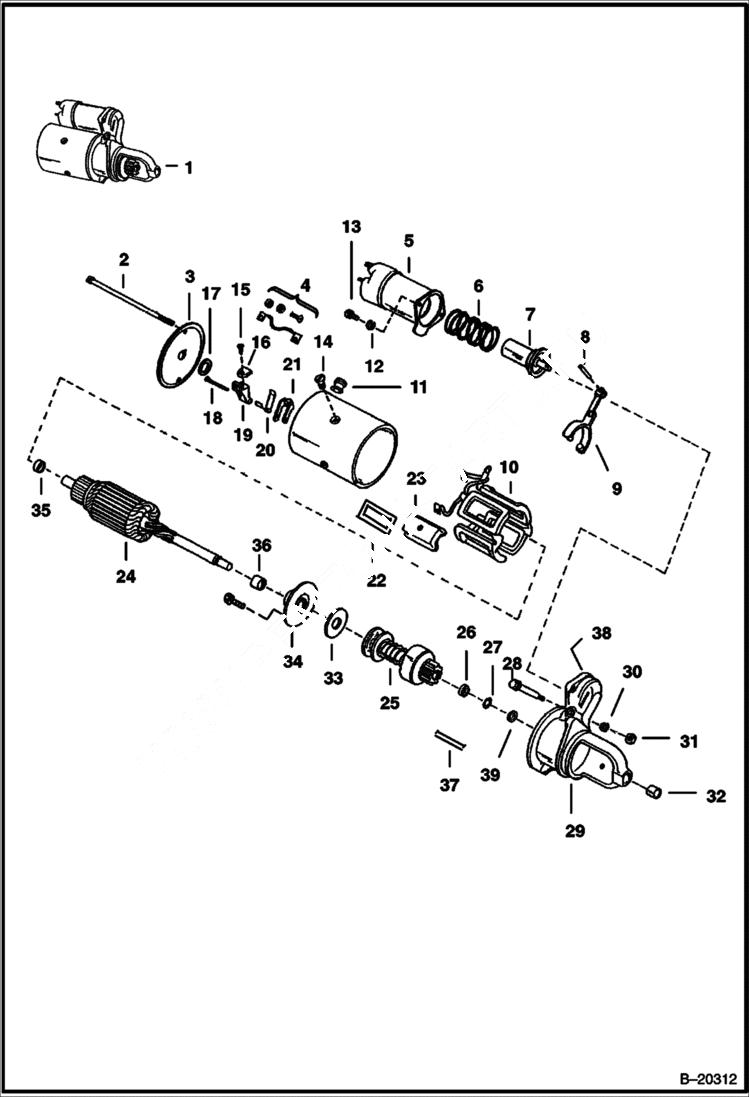

Запчасти Bobcat 900s STARTER (Delco 1998379 - S/N 12873 & Above) ELECTRICAL SYSTEM

1

STARTER NLA - Order 6651664 - Was 6630181 - A

1

6630181REM

STARTER remanufactured

2

6630404

BOLT

3

FRAME NLA - Was 999460B - A

4

6511627

HOLDER brush support

5

6599449

SOLENOID

6

888968

SPRING Was 906910B - A

7

6658903

PLUNGER Was 6630417 - A

8

PIN NLA - Was 999472B - A

9

896126

LEVER

10

6630407

COIL field - 4 Coils

11

GROMMET NLA - Was 898131B - A

12

23E4

WASHER

13

SCREW NSS

14

859377

SCREW

15

SCREW NSS

16

6630403

BRUSH

17

WASHER NLA - Was 863995B - A

18

PIN NSS

19

6630402

HOLDER brush

20

6630406

SPRING

21

6511626

HOLDER brush

22

INSULATOR NSS

23

SHOE POLE NLA - Was 887834B - A

24

6511629

ARMATURE

25

6512872

DRIVE

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

6630418

HOUSING drive - W/Ref. 32

30

WASHER NLA - Was 991218B - A

31

NUT NLA - Was 991219B - A

32

860669

BUSHING

33

WASHER NLA - Was 878103B - A

34

PLATE NLA - center - Was 891602B - A

35

874935

BUSHING

36

6598742

BUSHING

37

6630405

DOWEL PIN

38

BOOT NLA - Was 896128B - A

39

COLLAR NLA - Was 898127B - A
