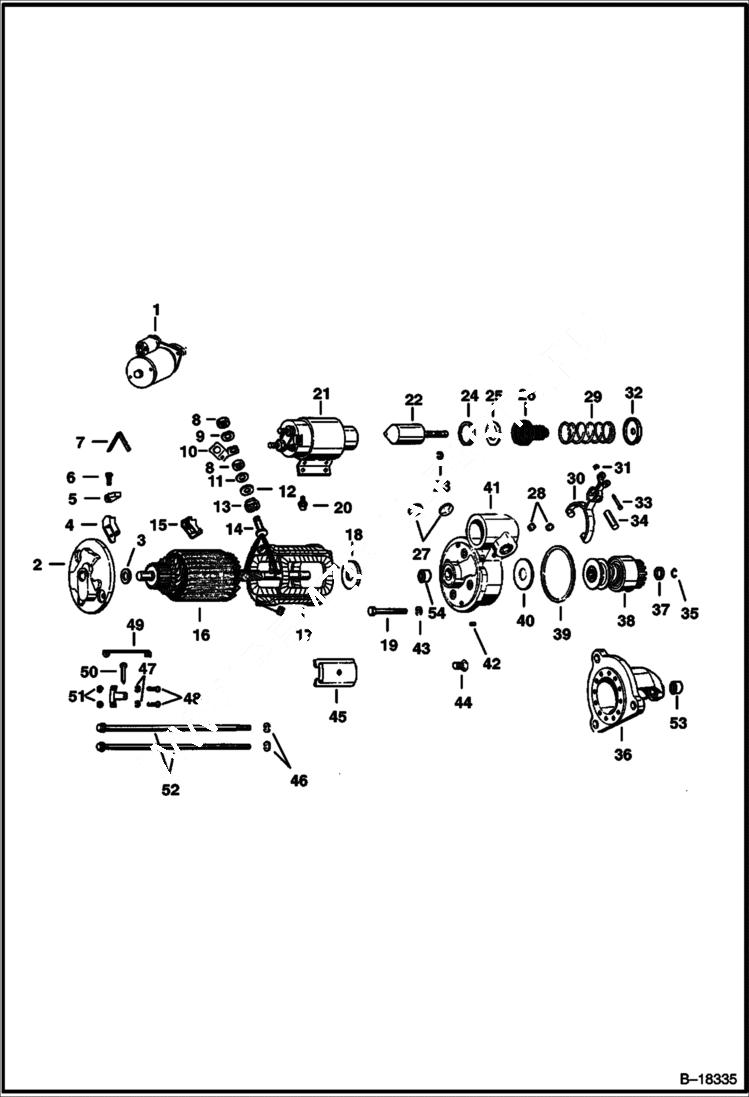

Запчасти Bobcat 900s STARTER (S/N 11001 Thru 12872) ELECTRICAL SYSTEM

1

STARTER NLA - Delco-1113640 - Order 6630181

1

STARTER remanufactured NLA - remanufactured - Was 1638660REM - A

2

FRAME NLA - Was 992668B - A

3

WASHER NLA - leather - Was 863995B - A

4

880603

HOLDER ground

5

BRUSHES NLA - Was 946421B - A

6

SCREW NLA

7

SPRING NLA - brush - Was 992568B - A

8

NUT NLA

9

WASHER NLA

10

SWITCH NLA - connector - Was 992671B - A

11

WASHER NLA

12

WASHER NLA - insulating

13

BUSHING NLA

14

STUD NLA

15

6656398

HOLDER brush - Insulator - Was 891252B - A

16

946420

ARMATURE

17

COILS NLA - field - Was 992667B - A

18

WASHER NLA - Was 994280B - A

19

BOLT NLA

20

BOLT NLA

21

6513389

SWITCH

22

PLUNGER NLA

23

SNAP RING NLA

24

RETAINER NLA

25

WASHER NLA

26

BOLT NLA

27

PLUG NLA

28

PLUG NLA

29

SPRING NLA

30

LEVER NLA - shift - Was 992666B - A

31

SNAP RING NLA

32

RETAINER NLA

33

PIN NLA

34

SHAFT NLA

35

942142

SNAP RING

36

HOUSING NLA - drive - Was 946421B - A

37

STOP NLA - Was 878608B - A

38

6512872

DRIVE starter - Was 899273B - A

39

6513390

INSULATOR

40

WASHER NLA - Was 878103B - A

41

HOUSING NLA - Was 992676B - A

42

DOWEL PIN NLA

43

WASHER NLA

44

SCREW NLA

45

SHOE POLE NLA

46

4E5

WASHER

47

17E10

WASHER

48

SCREW NLA

49

LEAD NLA

50

PIN NLA

51

NUT NLA

52

BOLT NLA - Was 992669B - A

53

BUSHING NLA - drive end - Was 3679997B - A

54

BUSHING NLA - lever housing - Was 992679B - A
