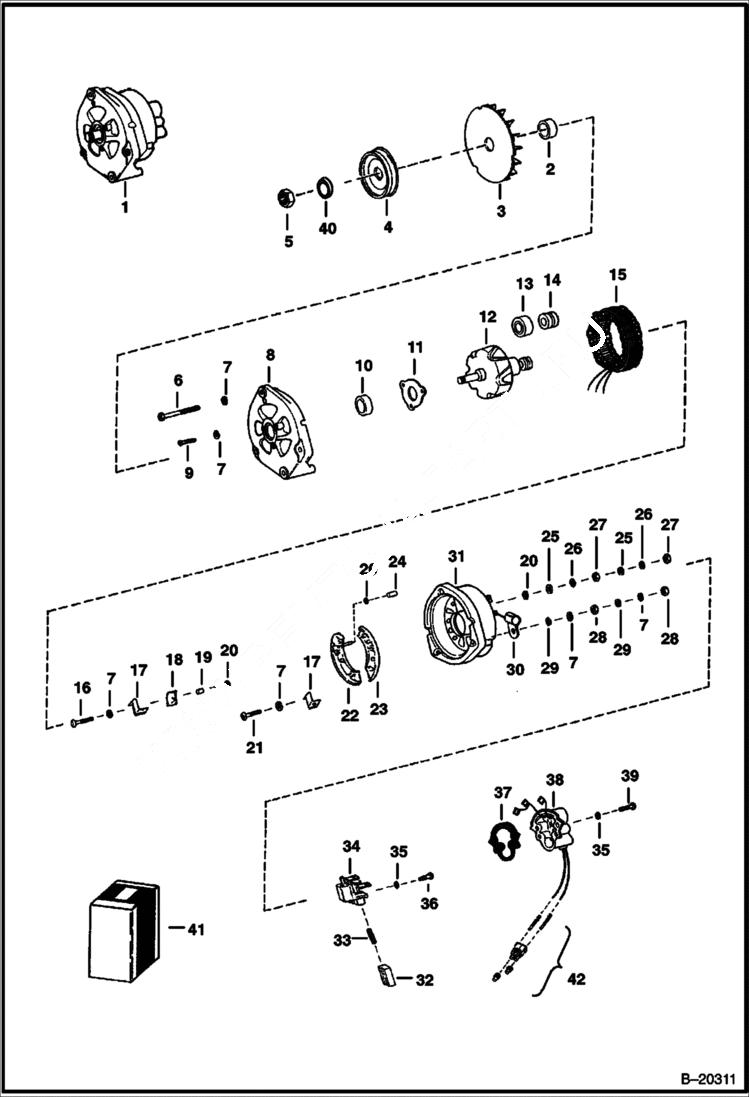

Запчасти Bobcat 900s ALTERNATOR (Bobcat - S/N 13057 & Above) ELECTRICAL SYSTEM

1

ALTERNATOR See BTI277 NLA - Less Fan & Pulley - Order 6661611 , 6631519 & 6659375 - Was 6632211 - A

2

6632210

WASHER

3

6632209

FAN

4

6631519

PULLEY Was 6632386 - A

5

NUT NLA - Was 6632207 - A

6

6632222

BOLT

7

WASHER NSS

8

6632224

BRACKET W/Ref. 7 & 9-11

9

SCREW NSS

10

BEARING NSS

11

RETAINER NSS

12

6632229

ROTOR W/Ref. 13 & 14

13

BEARING NSS

14

SLIP RING NSS

15

6632230

STATOR

16

BOLT NSS

17

CLAMP NSS

18

MOLD-U NSS

19

BUSHING NSS - insulation

20

WASHER NSS - insulation

21

SCREW NSS

22

HEATSINK NSS

23

HEATSINK NSS

24

BUSHING NSS - insulation

25

WASHER NSS

26

WASHER NSS

27

NUT NSS

28

NUT NSS

29

WASHER NSS

30

6632242

CONDENSER

31

6632231

BRACKET W/Ref. 7 & 16-30

32

BRUSH NSS

33

SPRING NSS

34

6632248

BRUSH HOLDER W/Ref 32 W/Ref 33 W/Ref. 32 & 33

35

WASHER NSS

36

SCREW NSS

37

6632253

GASKET

38

6632384

KIT regulator - W/Ref. 35 & 37-39

39

SCREW NSS

40

6632323

WASHER

41

6632381

KIT bearing - W/Ref. 10, 13 & 14

41

6632382

KIT external hardware - W/Ref. 7, 20, 25-29, 35, 36 & 39

41

6632383

KIT internal hardware - W/Ref. 7, 16-21 & 24

41

6632385

KIT brush holder - W/Ref. 32-36

41

6577456

KIT weather-pak connector - With both male & female parts

42

6577456

KIT Weather-Pak Connector - Includes Both Male & Female Parts
