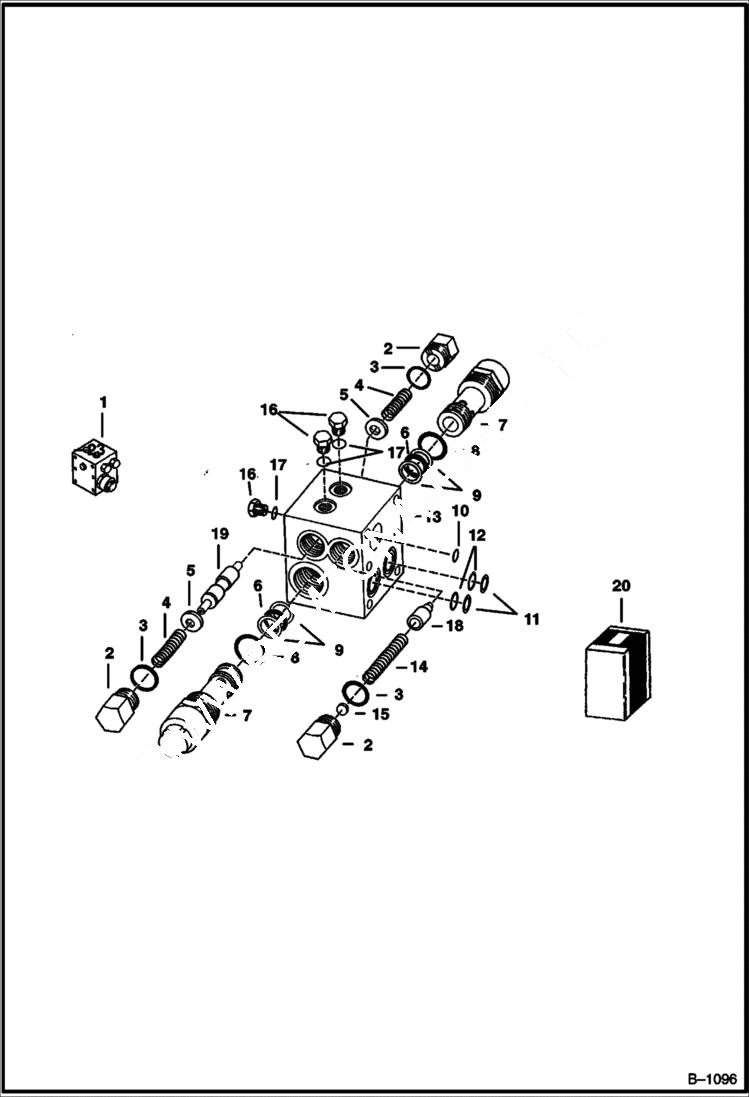

Запчасти Bobcat 900s MOTOR MANIFOLD VALVE (Motor Model 23-4008) HYDROSTATIC SYSTEM

1

6649936

VALVE ref. 2-19 - Was 6518452 - A

2

24K7

PLUG W/Ref. 3

3

79K10

O RING 10

4

6518650

SPRING

5

6518727

WASHER

6

O-RING NSS

7

6518416

RELIEF VALVE W/Ref. 6, 8 & 9

8

O-RING NSS

9

BACK-UP RING NSS

10

O-RING NSS

11

BACK-UP RING NSS

12

O-RING NSS

13

HOUSING NSS - Order Ref. 1

14

961442

SPRING

15

SHIM NSS - Order 6598058 Kit - Ref. 20

16

24K3

PLUG W/Ref. 17

17

79K4

O RING 10

18

961441

CHARGE charge

19

SHUTTLE NSS - Order Ref. 1

20

6518664

SEAL KIT ref. 6, 8 & 9

20

6518500

SEAL KIT ref. 10-12

20

6599651

SHIM KIT 8 Shims from .002 thru .050 for Ref. 7

20

6598058

SHIM KIT .005 thru .100
