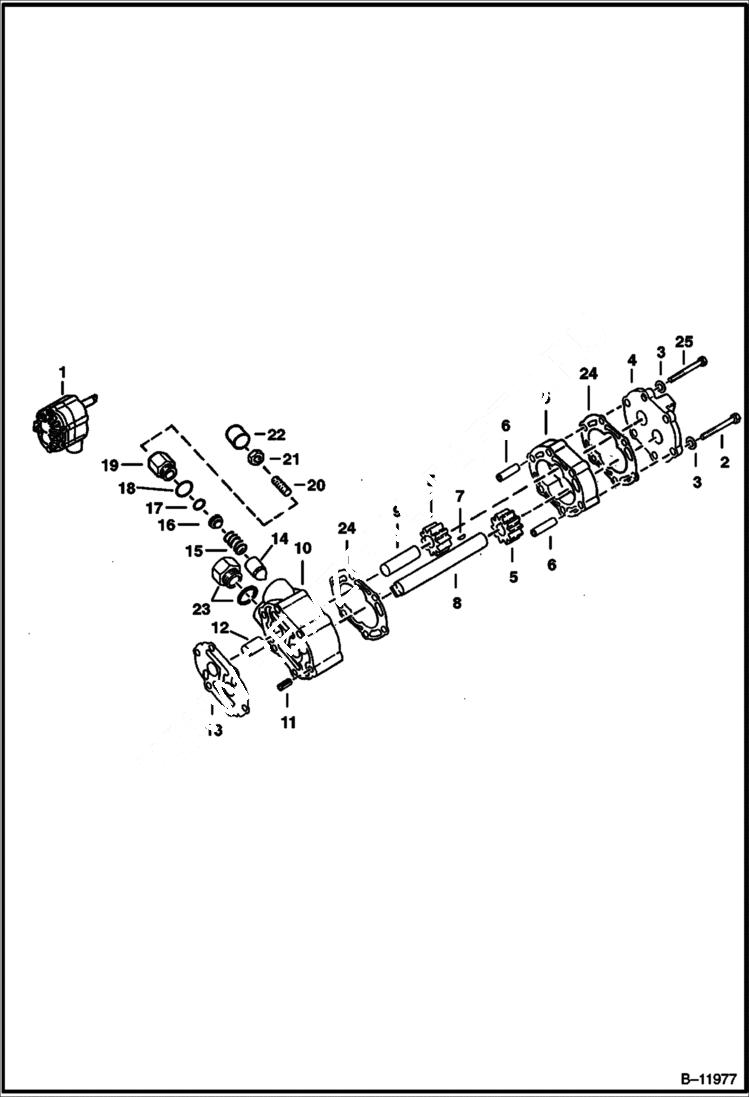

Запчасти Bobcat 900s HYDROSTATIC CHARGE PUMP (Model 22-2501AA-REDX) HYDROSTATIC SYSTEM

1

6648248

PUMP

2

17C448

BOLT

3

6518479

WASHER

4

6648249

END CAP

5

6648250

SPACER PLATE W/Gear

6

PIN NSS - Was 6518721 - A

7

6648251

KEY

8

SHAFT NSS - Was 6518648 - A

9

SHAFT NSS - Was 6518722 - A

10

6648252

BODY

11

PIN NSS - Was 6514514 - A

12

SPACER NSS - Was 6518649 - A

13

6518481

GASKET

14

6518656

VALVE

15

6518657

SPRING relief

16

6648253

PLUNGER

17

6645079

O-RING

18

79K10

O RING 10

19

6648254

PLUG

20

6648255

SCREW

21

6648256

NUT

22

6648257

COVER

23

6645085

PLUG

24

6598736

GASKET

25

6648258

BOLT
