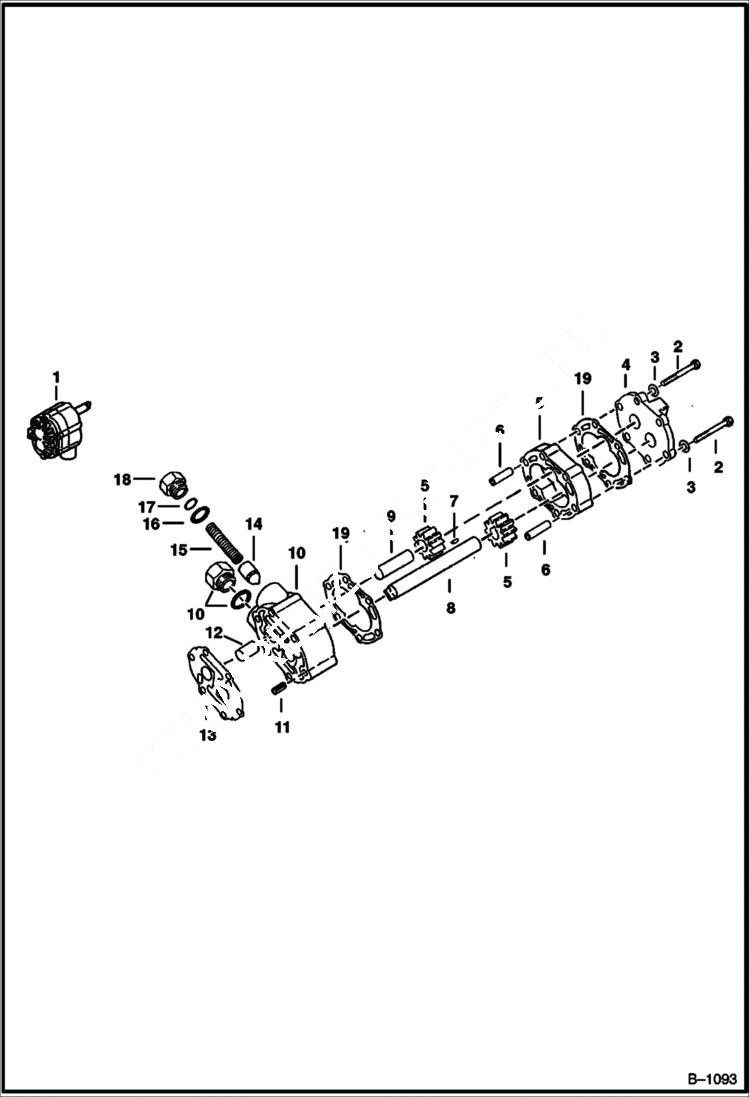

Запчасти Bobcat 900s HYDROSTATIC CHARGE PUMP (Model 22-2073) HYDROSTATIC SYSTEM

1

PUMP NLA - charge - Ref. 2-19 - Order 6648248 - Was 6518480 - A

2

BOLT NSS

3

6648245

WASHER

4

CAP NSS - end

5

SPACER NSS - W/Gears

6

PIN NSS

7

KEY NSS

8

SHAFT NSS - drive

9

SHAFT NSS - idler

10

BODY NSS - W/Plug & O-Ring

11

ROLL PIN NSS

12

SPACER NSS

13

6518481

GASKET

14

6518656

VALVE relief

15

6518657

SPRING relief

16

79K10

O RING 10

17

6598058

SHIM KIT 5 Shims from .005 thru .100

18

24K7

PLUG W/Ref. 16

19

6598736

GASKET
